REAR WHEEL

TS50ERP 1981 (T) FRANCE NETHERLANDS (E04 E25)

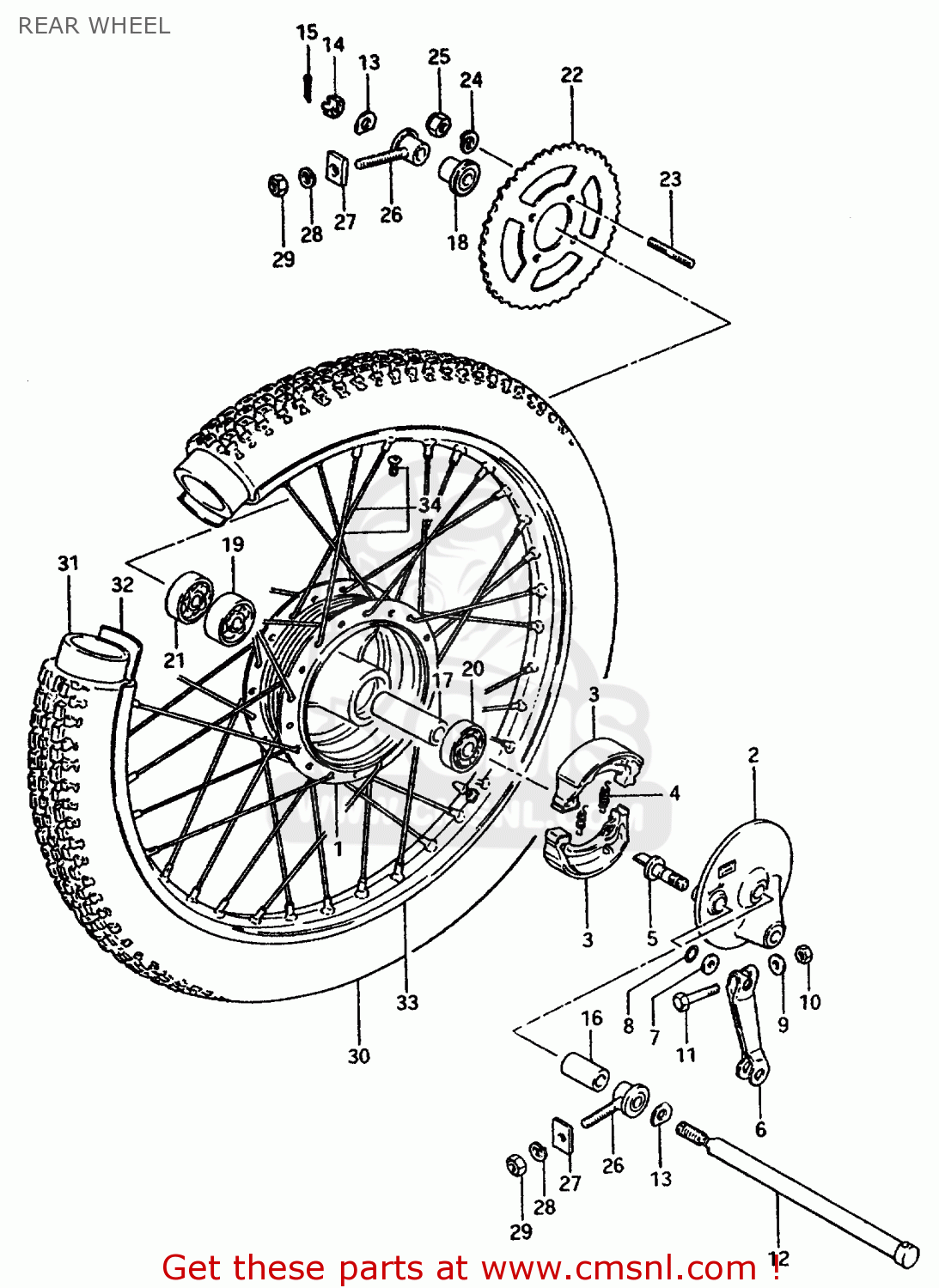

Rear wheel diagram TS50ERP 1981 (T) FRANCE NETHERLANDS (E04 E25)

REAR WHEEL TS50ERP 1981 (T) FRANCE NETHERLANDS (E04 E25)
REAR WHEEL TS50ERP 1981 (T) FRANCE NETHERLANDS (E04 E25)
REAR WHEEL TS50ERP 1981 (T) FRANCE NETHERLANDS (E04 E25)
prices are in EUR
ref
part #
description
quantity
1
6410046811
ref: 1
INC.REF.NOS.17,19,20
DRUM SET,REAR HUB
€ 120.50
2
6421046022
ref: 2
PANEL,REAR BRAKE ANCHOR
€ 66.00
3
5441043020
ref: 3
SHOE,BRAKE (MCA)
5441043020
€ 19.00
4
0944307001
ref: 4
SPRING(L:34)
0944307001
€ 2.50
5
5444129302
ref: 5
CAM,FRONT BRAKE
5444129302
€ 13.00
6
6445148000
ref: 6
LEVER,RR BRAKE CAM
6445148000
€ 32.50
7
0916014001
ref: 7
WASHER (14.5X22X1.6)
0916014001
€ 2.50
8
0928014003
ref: 8
O-RING (D:2.4 ID:13.8)
0928014003
€ 3.50
9
0832221068
ref: 9
WASHER
0832221068
€ 2.00
10
0831011068
ref: 10
NUT
0831011068
€ 2.50
11
0910006078
ref: 11
BOLT(6X33)
0910006078
€ 2.50
12
6471126500
ref: 12
AXLE,RR
€ 27.50
13
6471226500
ref: 13
WASHER,RR AXLE
6471226500
€ 8.50
14
0831431128
ref: 14
NUT 12MM
0831431128
€ 2.00
15
0411130308
ref: 15
COTTER PIN
0411130308
€ 1.50
16
0918012085
ref: 16
SPACER, AXLE RH
€ 5.00
17
0918012082
ref: 17
SPACER (12.6X19X79)
0918012082
€ 9.50
18
6475046700
ref: 18
SPACER, REAR AXLE LH
6475046700
€ 6.50
19
0811363010
ref: 19
BEARING
0811363010
€ 9.50
20
0814363017
ref: 20
BEARING
0814363017
€ 14.50
21
0812363017
ref: 21
BEARING
0812363017
€ 13.50
22-1
6451146630
ref: 22-1
SPROCKET, REAR (NT:47)
€ 40.00
22-2
6451146640
ref: 22-2
TS50ERPDT
SPROCKET, REAR (NT:49)
6451146640
€ 42.00
22-3
6451146650
ref: 22-3
TS50ERPT E25
SPROCKET, REAR (NT:50)
€ 40.50
23
0142110208
ref: 23
BOLT
€ 2.50
24
0832121108
ref: 24
LOCK WASHER
0832121108
€ 2.00
25
0831921108
ref: 25
NUT
€ 3.00
26
6141026500
ref: 26
TO 61410-26501
ADJUSTER, CHAIN
6141026500
€ 9.00
27
6142126501
ref: 27
ADJUSTER,CHAIN
6142126501
€ 4.00
28
0832121088
ref: 28
LOCK WASHER
0832121088
€ 2.00
29
0831012088
ref: 29
NUT
0831012088
€ 2.00
30-1
6510046770
ref: 30-1
ICR
TIRE (3.00-17)
€ 0.00
30-2
6510026500
ref: 30-2
IRC, TS50ERPDTTS50ER
TIRE (3.00-18)
€ 180.50
31-1
5520009210
ref: 31-1
TUBE, INNER
€ 0.00
31-2
5520011601
ref: 31-2
TS50ERPDTTS50ERPT E2
TUBE,INNER
€ 24.50
32-1
5526101010
ref: 32-1
PROTECTOR,WHEEL,INNER
€ 3.50
32-2
5526111010
ref: 32-2
TS50ERPDTTS50ERPT E2
PROTECTOR,INNER TUBE
5526111010
€ 3.50
33-1
6531146730
ref: 33-1
RIM,RR WHEEL(17X1.60)
€ 78.00
33-2
6531126500
ref: 33-2
TS50ERPDT
RIM, WHEEL
€ 98.50
34-1
6532046730
ref: 34-1
SPOKE SET,RR
6532046730
€ 46.00
34-2
6532012120
ref: 34-2
TS50ERPDTTS50ERPT E2
SPOKE SET,REAR WHEEL
€ 26.00
