FRONT FENDER - CABLE
TS75 1977 (B) USA (E03)

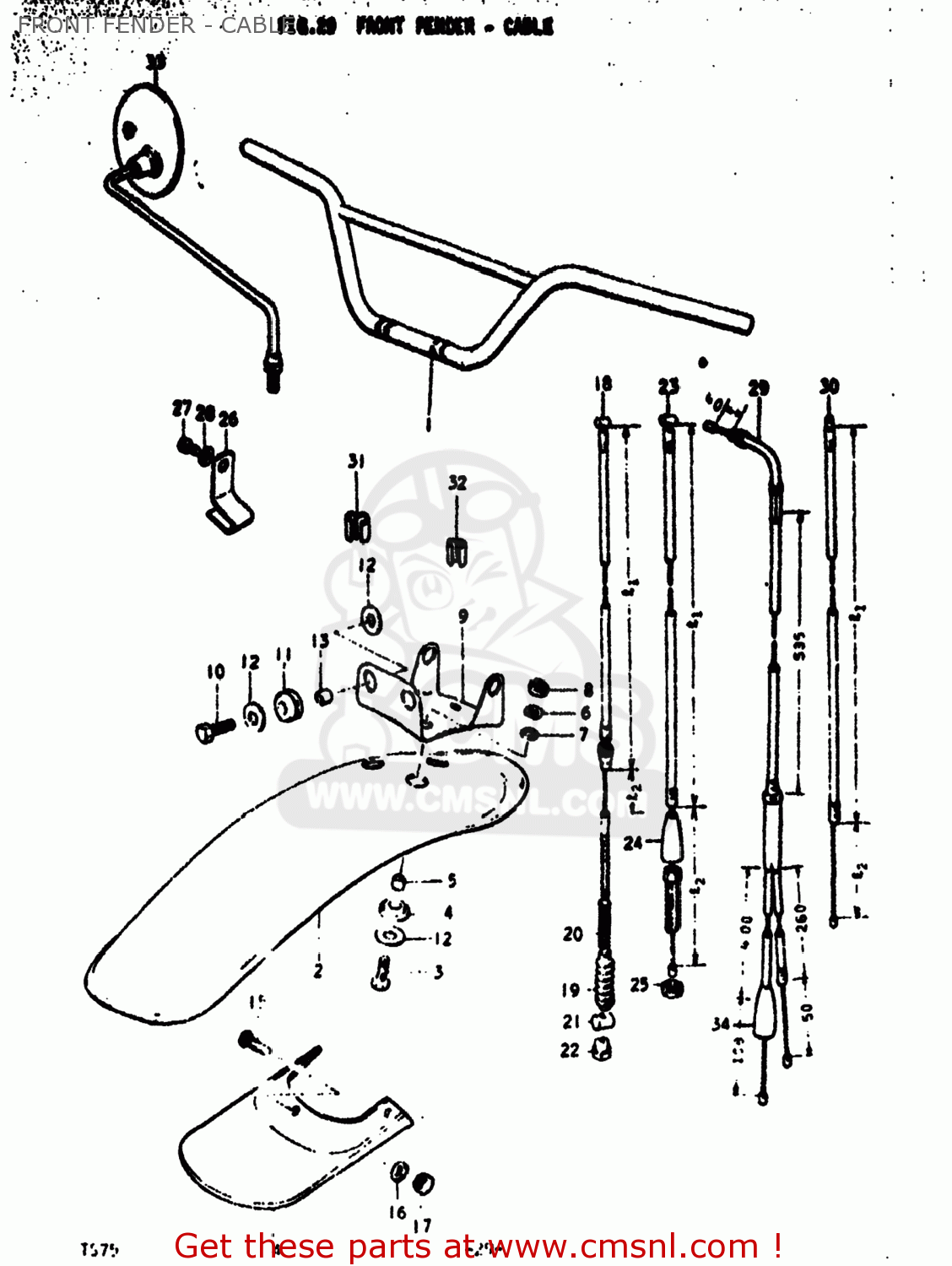

Front fender - cable diagram TS75 1977 (B) USA (E03)
FRONT FENDER - CABLE TS75 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611026100
ref: 1-1
56110-26101
HANDLEBAR
€ 37.00
1-2
5611026101
ref: 1-2
HANDLEBAR
€ 37.00
2-1
5311126100714
ref: 2-1
53111-26100-737
FENDER,FRONT
€ 34.00
2-2
5311126620293
ref: 2-2
53111-26620-737
FENDER,FRONT
€ 30.50
2-3
5311126620797
ref: 2-3
53111-26620-737
FENDER,FRONT
€ 30.50
3
0910006064
ref: 3
BOLT(6X18)
€ 1.50
4
0932009006
ref: 4
CUSHION
€ 2.00
5
0918007011
ref: 5
SPACER
€ 1.50
6
0832121068
ref: 6
08321-01067
LOCK WASHER
€ 2.50
7
0832221068
ref: 7
08322-01067
WASHER
€ 2.00
8
0831111068
ref: 8
08310-00067
NUT
€ 2.50
9
5321126610
ref: 9
BRACE,FRONT FENDER
€ 0.00
10
0111206168
ref: 10
01500-06167
BOLT
€ 3.00
11
0932008007
ref: 11
09320-08021
CUSHION
€ 4.00
12
0916006027
ref: 12
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
13
0918007005
ref: 13
09180-06259
SPACER (7X9X7)
€ 2.50
14
5341126300
ref: 14
MUD FLAP,FRONT FENDER
€ 4.00
15
0214104107
ref: 15
02142-04107
SCREW
€ 1.50
16
0832221048
ref: 16
08322-01047
WASHER
€ 2.00
17
0831111048
ref: 17
08310-00047
NUT
€ 2.00
18
5810026100
ref: 18
58100-39331
CABLE ASSEMBLY,FRONT BRAKE
€ 7.00
19
0928707001
ref: 19
SEAL,DUST(7X16X75)
€ 2.00
20
0944006003
ref: 20
SPRING
€ 2.00
21
0920910001
ref: 21
PIN,10X19
€ 2.00
22
0915005101
ref: 22
NUT
€ 3.00
23
5820026100
ref: 23
CABLE ASSY,CLUTCH
€ 22.50
24
0928707002
ref: 24
SEAL,DUST(7X18X30)
€ 2.50
25
0831211088
ref: 25
08310-00087
NUT
€ 2.00
26
0940313301
ref: 26
CLAMP
€ 0.00
27
0111206108
ref: 27
01500-06107
BOLT
€ 2.00
28
0832121068
ref: 28
08321-01067
LOCK WASHER
€ 2.50
29
5830026301
ref: 29
58300-26302
CABLE ASSEMBLY,THROTTLE
€ 22.50
30
5841008710
ref: 30
58410-07500
CABLE COMP,STARTER
€ 8.50
31
0940800002
ref: 31
CLIP
€ 2.00
32
0940800003
ref: 32
CLIP
€ 2.50
33-1
5650031011
ref: 33-1
56500-31013
MIRROR ASSEMBLY,RIGHT
€ 65.50
33-2
5660031011
ref: 33-2
56600-31013
MIRROR ASSEMBLY,LEFT
€ 65.50
34
0928707002
ref: 34
SEAL,DUST(7X18X30)
€ 2.50
