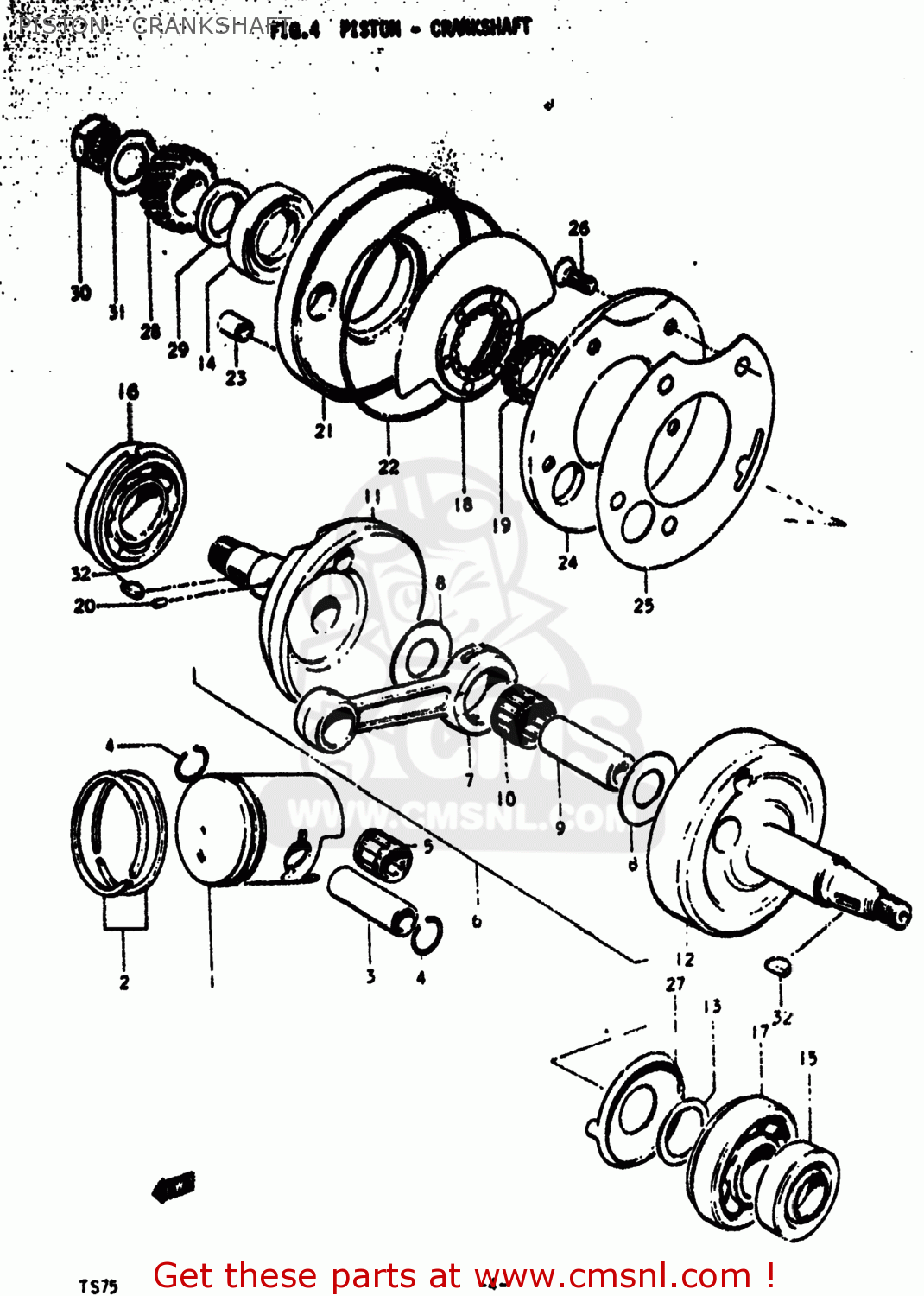

PISTON - CRANKSHAFT - TS75 1977 (B) USA (E03)

ref

part #

description

quantity

1-1

1211026101
ref: 1-1
12110-26102-0F0

PISTON (47.00MM)

€ 41.00

1-2

1211026120
ref: 1-2
12100-26100-025

PISTON

€ 37.50

1-3

1211026110
ref: 1-3
12100-26100-050

PISTON

€ 25.50

2-1

1210025870
ref: 2-1
12140-35410

RING SET,PISTON

€ 38.50

2-2

1214025780
ref: 2-2
12140-26100-025

RING SET,PISTON

€ 13.50

2-3

1214025790
ref: 2-3
12140-35410-050

RING SET,PISTON

€ 28.50

3

1215109204
ref: 3

PIN,PISTON

€ 8.50

4

0938112001
ref: 4

RING,SNAP

€ 1.50

5

0926312003
ref: 5
09263-12023

BEARING

€ 9.00

6

1220026100
ref: 6

CRANKSHAFT ASSY

€ 146.50

7

1216105000
ref: 7
12161-05001

CONNECTING ROD

€ 33.50

8

0916019001
ref: 8

WASHER(19X32X1)

€ 3.50

9

1221105000
ref: 9

PIN,CRANK

€ 33.00

10

0926319007
ref: 10
09263-19009

BEARING

€ 15.00

11

1222105002
ref: 11

CRANKSHAFT,RIGHT

€ 56.50

12

1226105001
ref: 12

CRANKSHAFT,LEFT

€ 56.50

13

0822120285
ref: 13
09181-20158

THRUST WASHER

€ 2.50

14

0928325009
ref: 14
09283-25107

OIL SEAL (25X44X7)

€ 6.50

15

0928320011
ref: 15
09283-20034

OIL SEAL

€ 6.00

16

0926220015
ref: 16

BEARING(20X52X15)

€ 30.50

17

0926220005
ref: 17

BEARING(20X47X14)

€ 29.50

18-1

1241005002
ref: 18-1

PLATE,DISC VALVE

€ 17.00

18-2

1241005010
ref: 18-2

VALVE,ROTARY

€ 17.00

19

1242105210
ref: 19

GUIDE,ROTERY VALVE

€ 17.50

20

0621103052
ref: 20
04221-03059

PIN 3X5

€ 1.50

21

1245026000
ref: 21
12450-05002

SEAT,CRANKCASE OUTER VALVE

€ 1,665.00

22

0928000002
ref: 22

O RING(D:2.4,ID:100.6)

€ 5.50

23

0421109129
ref: 23

PIN

€ 2.00

24

1246005001
ref: 24
12461-05002

SEAT,INNER VALVE

€ 28.00

25

1247105001
ref: 25

GASKET,ROTERY VALVE INNER SEAT (NAS)

€ 5.50

26

0212206168
ref: 26
02122-06167

SCREW

€ 2.00

27

1251105000
ref: 27

PLATE,CSHAFT OIL GUIDE

€ 6.00

28

2111103001
ref: 28

GEAR,PRIMARY DRIVE

€ 28.00

29

0918020006
ref: 29

SPACER(20X25X10)

€ 5.50

30

0914014002
ref: 30

NUT

€ 4.00

31

0916614008
ref: 31

WASHER

€ 2.50

32

0834131039
ref: 32

KEY

€ 2.00
