REAR COMBINATION LAMP (TS75B)
TS75 1977 (B) USA (E03)

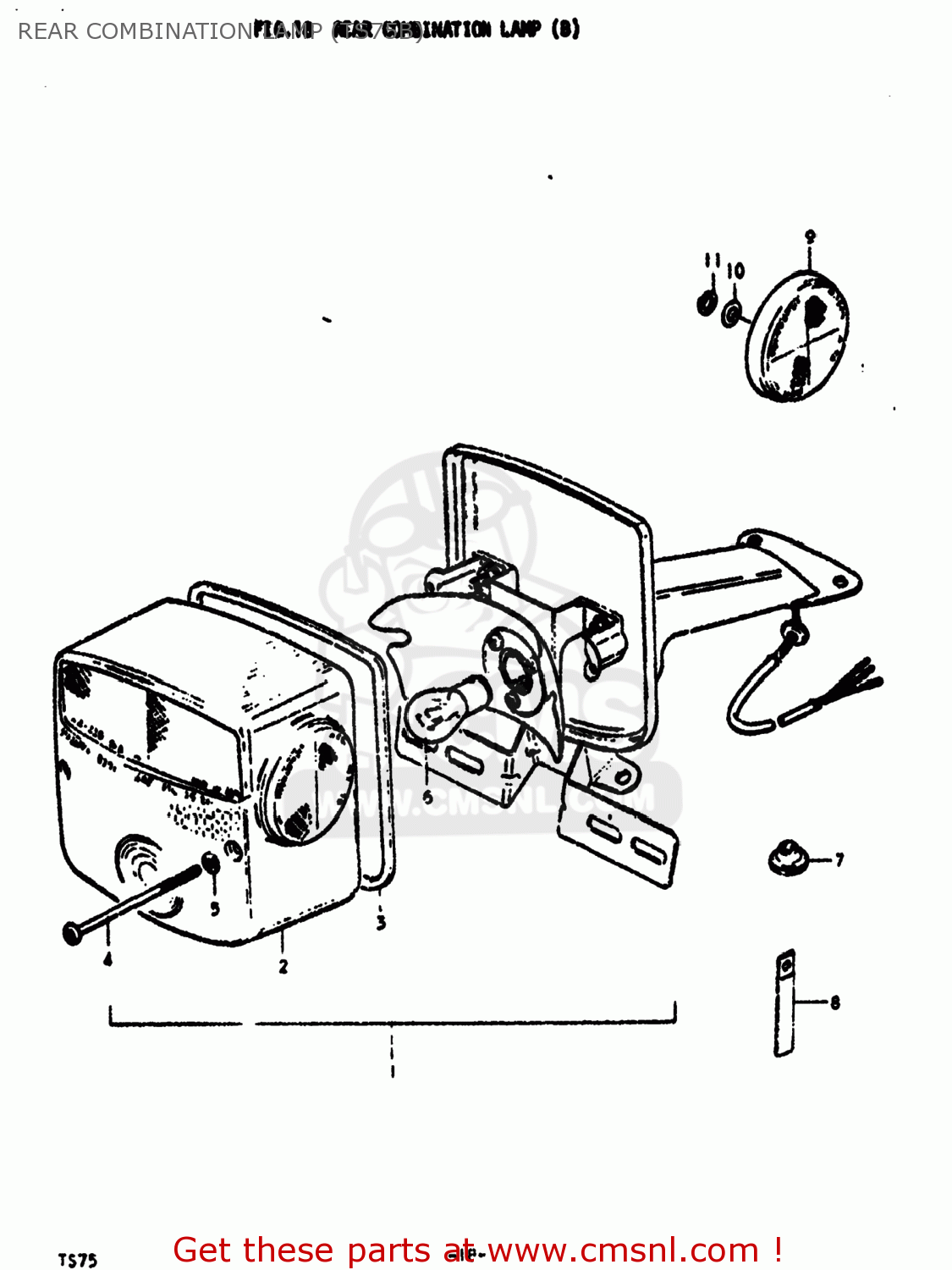

Rear combination lamp (ts75b) diagram TS75 1977 (B) USA (E03)
REAR COMBINATION LAMP (TS75B) TS75 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571026630
ref: 1
35710-26631
LAMP ASSEMBLY,REAR COMBINATION
€ 22.50
2
3571330510
ref: 2
GASKET (NAS)
€ 6.00
3
3571330510
ref: 3
GASKET (NAS)
€ 6.00
4
0211104558
ref: 4
02112-04558
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947106030
ref: 6
BULB(6V32/3CP,STANLEY)
€ 12.50
7
0930806002
ref: 7
GROMMET
€ 3.00
8
0940300069
ref: 8
CLAMP
€ 8.50
9
3595045010
ref: 9
REFLEX REFLECTOR,FR
€ 17.00
10
0832221058
ref: 10
08322-01057
WASHER
€ 2.50
11
0832121058
ref: 11
08321-0105A
LOCK WASHER
€ 2.00
