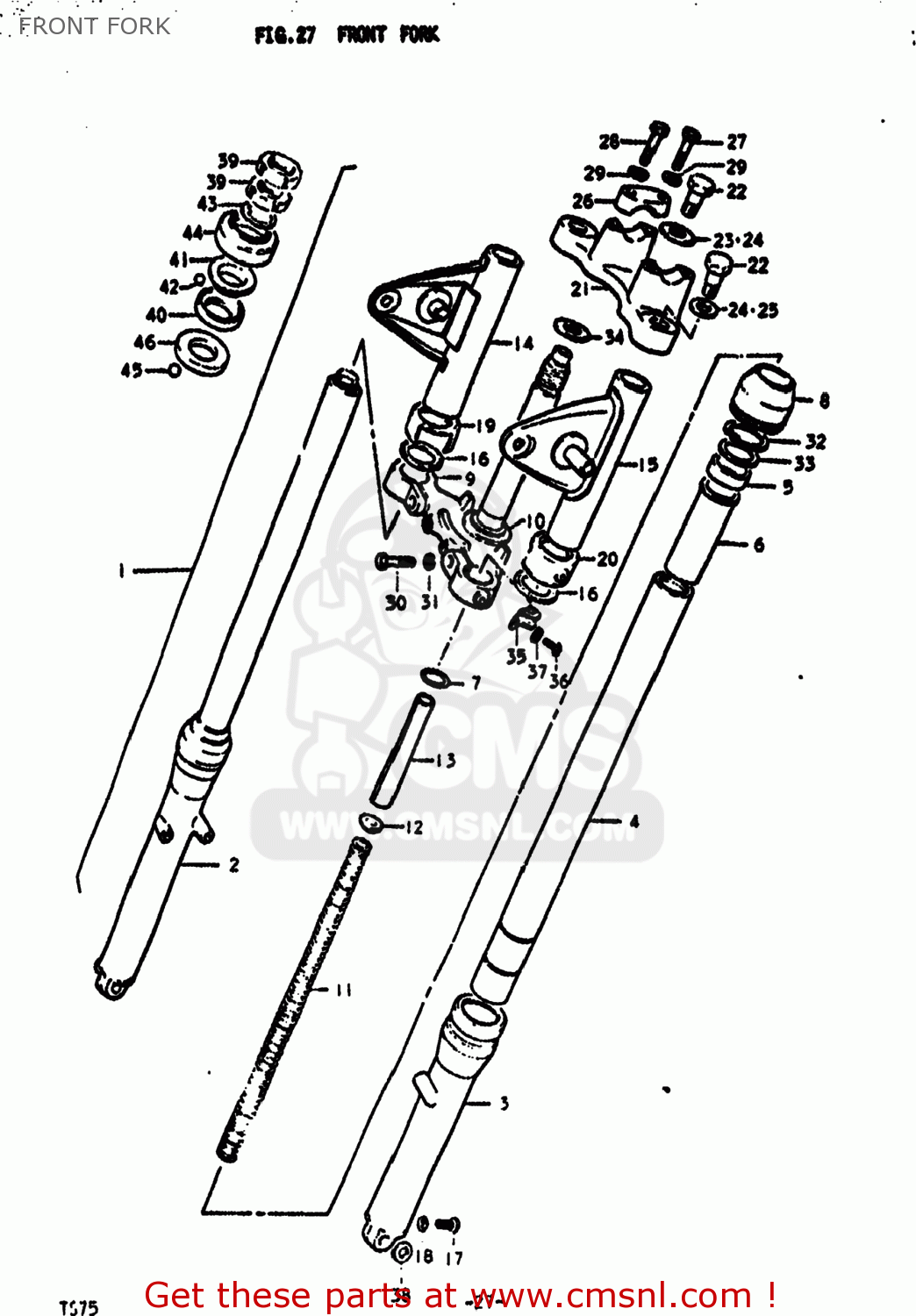

FRONT FORK

ref

part #

description

quantity

1-1

5110026211676
ref: 1-1
51106-26211

DAMPER SET

€ 238.00

1-2

5110026211291
ref: 1-2
51106-26211

DAMPER SET

€ 238.00

2

5113026210
ref: 2

TUBE,OUTER,RIGHT

€ 53.50

3

5114026210
ref: 3

TUBE,OUTER,LEFT

€ 56.00

4

5111026210
ref: 4

TUBE,FORK,INNER

€ 106.50

5

5115327410
ref: 5
51153-39140

OIL SEAL,FRONT FORK

€ 8.00

6

5115227410
ref: 6

GUIDE,FRONT FORK TUBE

€ 10.00

7

5118122010
ref: 7
51181-22011

O-RING,FORK INNER TUBE

€ 3.00

8

5117326210
ref: 8

SEAL,DUST

€ 8.50

9

5141026210
ref: 9

STEM,STEERING

€ 74.50

10

5162133001
ref: 10

RACE,STEERING OUTER LWR

€ 10.00

11

5117126210
ref: 11

SPRING

€ 14.50

12

5117226210
ref: 12

GUIDE,FRONT FORK SPRING C

€ 5.00

13

5117626210
ref: 13

SPACER,SPRING

€ 6.00

14-1

5153026210126
ref: 14-1
51500-26830-126

BRACKET COMP,HEADLAMP

€ 30.00

14-2

5153026210291
ref: 14-2
51500-26830-126

BRACKET COMP,HEADLAMP

€ 39.00

15-1

5154026210126
ref: 15-1
51500-26830-126

BRACKET,HEADLAMP,LEFT

€ 39.00

15-2

5154026210291
ref: 15-2
51500-26830-126

BRACKET,HEADLAMP,LEFT

€ 39.00

16

5155326610
ref: 16

CUSHION,HEADLAMP BRACKET

€ 3.00

17

0211104087
ref: 17
02112-04087

SCREW

€ 1.50

18

5118303010
ref: 18

GASKET,DRAIN,PLUG (NAS)

€ 3.00

19

5155426010
ref: 19

COVER STEM RH

€ 13.00

20

5155726010
ref: 20

COVER STEM LH

€ 12.50

21

5131126210019
ref: 21

HEAD,STEERING STEM

€ 41.00

22

5135120010
ref: 22
51351-29400

BOLT,FORK INNER TUBE

€ 25.00

23

5135622011
ref: 23

WASHER

€ 6.00

23

5135622011
ref: 23

WASHER

€ 6.00

24

5135622012
ref: 24

WASHER,STEM HEAD(10.5X30X3.2)

€ 4.00

25

5135607011
ref: 25

WASHER

€ 6.00

26

5621127210019
ref: 26
56211-29320-291

HOLDER,HANDLEBAR

€ 12.00

27

0122108357
ref: 27
01204-08357

Bolt

€ 3.50

28

0122108757
ref: 28
01204-08757

BOLT

€ 2.50

29

0832121088
ref: 29
08321-01087

LOCK WASHER

€ 2.00

30

5145108410
ref: 30

BOLT,FORK INNER TUBE F

€ 3.50

31

0832121108
ref: 31
08321-01107

LOCK WASHER

€ 2.00

32

0833121409
ref: 32
08331-41406

CIRCLIP

€ 4.00

33

5115827410
ref: 33

RING,FORK BACK UP

€ 6.00

34

5135722010
ref: 34

WASHER,STEERING STEM L

€ 3.50

35

5145305110
ref: 35

CLIP,BRAKE CABLE

€ 4.50

36

0211206108
ref: 36
02112-06107

SCREW

€ 1.50

37

0832121068
ref: 37
08321-01067

LOCK WASHER

€ 2.50

38

0832221108
ref: 38
08322-01107

WASHER

€ 2.50

39

5163105000
ref: 39

NUT

€ 3.00

40

5161120002
ref: 40

RACE,STEERING INNER UPR

€ 5.50

41

5162125000
ref: 41

LACE,STEERING OUTER UPR

€ 7.50

42

0611106003
ref: 42

BALL

€ 1.50

43

0916624001
ref: 43

WASHER

€ 2.00

44

5164306001
ref: 44

DUST SEAL,STEERING UPR

€ 3.50

45

0611108003
ref: 45

BALL

€ 1.50

46

5161133002
ref: 46

LACE,STEERING INNER LWR

€ 7.00
