SEAT
TS75 1977 (B) USA (E03)

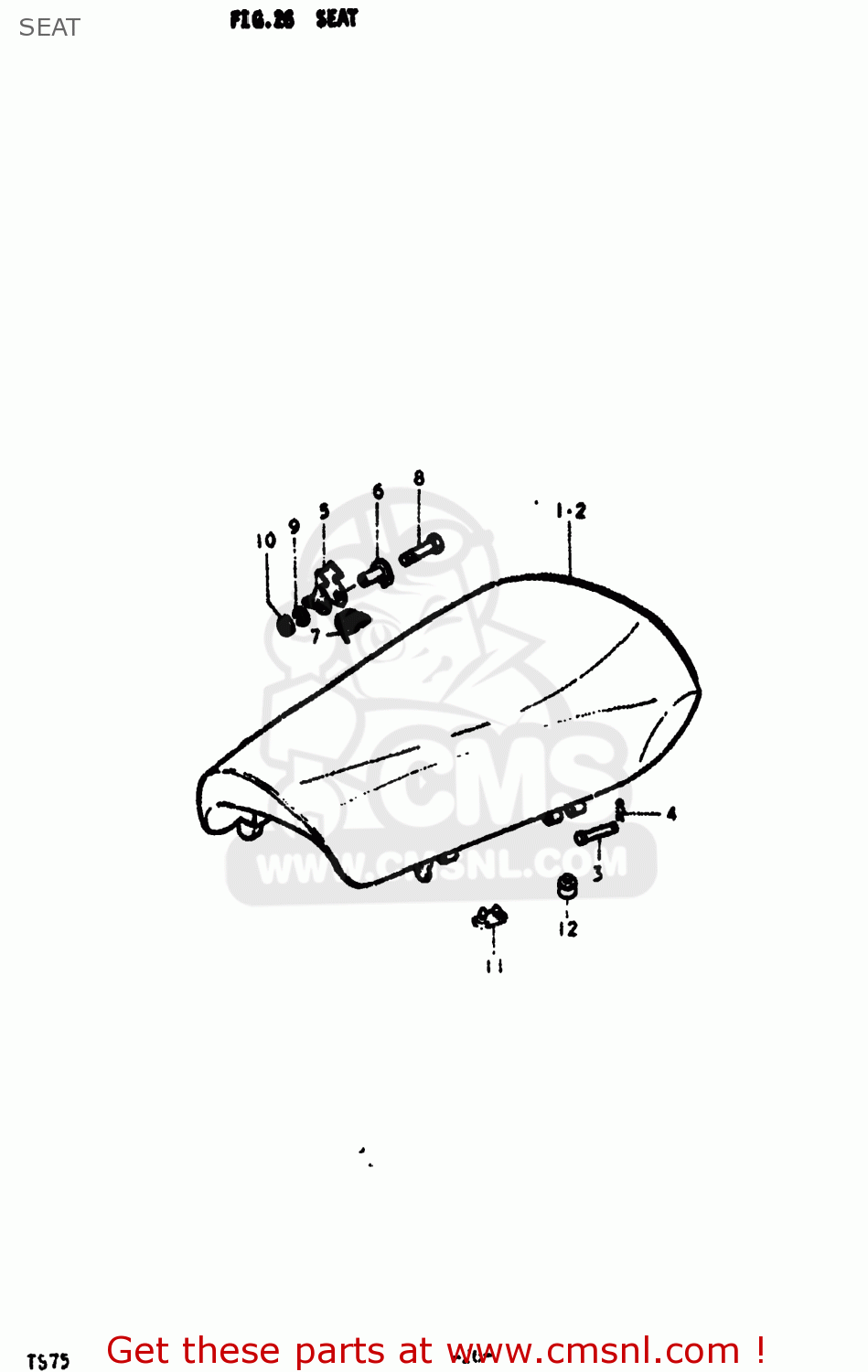

Seat diagram TS75 1977 (B) USA (E03)
SEAT TS75 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510026101403
ref: 1
45100-26600-865
SEAT ASSEMBLY
€ 82.50
2-1
4510026600403
ref: 2-1
45100-26600-865
SEAT ASSEMBLY
€ 82.50
2-2
4510026600865
ref: 2-2
SEAT ASSEMBLY
€ 82.50
3
0920006018
ref: 3
PIN
€ 2.00
4
0938506001
ref: 4
CLIP
€ 11.00
5
4521126001
ref: 5
STRIKER,SEAT LOCK
€ 4.00
6
4521026001
ref: 6
STRIKER,SEAT LOCK
€ 0.00
7
0944817007
ref: 7
SPRING
€ 3.50
8
0112208408
ref: 8
01500-0840A
BOLT 8X40
€ 3.00
9
0832121088
ref: 9
08321-01087
LOCK WASHER
€ 2.00
10
0831211088
ref: 10
08310-00087
NUT
€ 2.00
11
0932108006
ref: 11
CUSHION
€ 3.00
12
0932110001
ref: 12
CUSHION
€ 2.50
