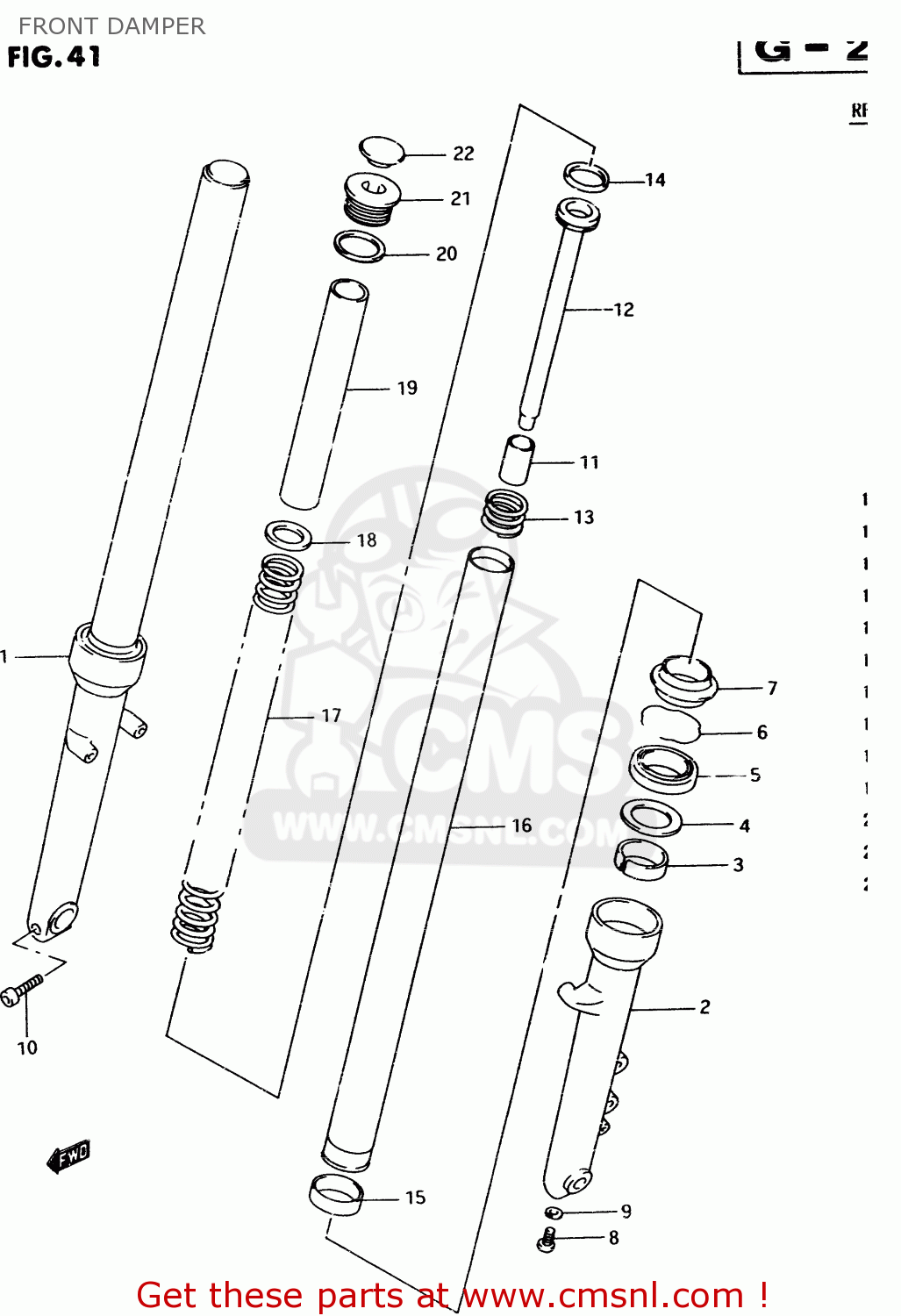

FRONT DAMPER

ref

part #

description

quantity

0

5110325D00
ref: 0

DAMPER ASSY,FR FORK,R

€ 679.50

0

5110425D00
ref: 0

DAMPER ASSY,FR FORK,L

€ 679.50

1

5113025D00
ref: 1

TUBE,OUTER,R

€ 318.50

2

5114025D00
ref: 2

TUBE,OUTER,L

€ 321.00

3

5115225D00
ref: 3

BUSH,GUIDE

€ 17.50

4

5116825D00
ref: 4

SPACER,SEAL

€ 5.50

5

5115325D00
ref: 5

OIL SEAL,FRONT FORK

€ 15.00

6

5155625D00
ref: 6

RING,STOPPER

€ 3.00

7

5117325D00
ref: 7

SEAL,DUST

€ 15.00

8

5114742AA0
ref: 8

BOLT,CENTER (8X18)

€ 3.00

9

5114836011
ref: 9

GASKET (NAS)

€ 4.00

10

0713008357
ref: 10

BOLT

€ 4.50

11

5119525D00
ref: 11

PIECE,OIL LOCK

€ 19.00

12

5114625D00
ref: 12

CYLINDER

€ 82.50

13

5117725D00
ref: 13

SPRING,REBOUND

€ 8.50

14

5119625D00
ref: 14

RING,PISTON

€ 7.50

15

5112125D00
ref: 15

BUSHING,SLIDE

€ 10.50

16

5111025D00
ref: 16

TUBE,INNER

€ 391.50

17

5117125D00
ref: 17

SPRING,MAIN

€ 66.50

18

5119225D00
ref: 18

JOINT,SPRING

€ 4.50

19

5117625D00
ref: 19

SPACER,SPRING

€ 14.00

20

5111725D00
ref: 20

O RING

€ 4.50

21

5118925D00
ref: 21

BOLT,FORK

€ 16.00

22

5135103D00
ref: 22

CAP,FORK

€ 6.50
