FUEL COCK

TU250X 1997 (V) (E02 E04 E17 E24 E25 E34 E39)

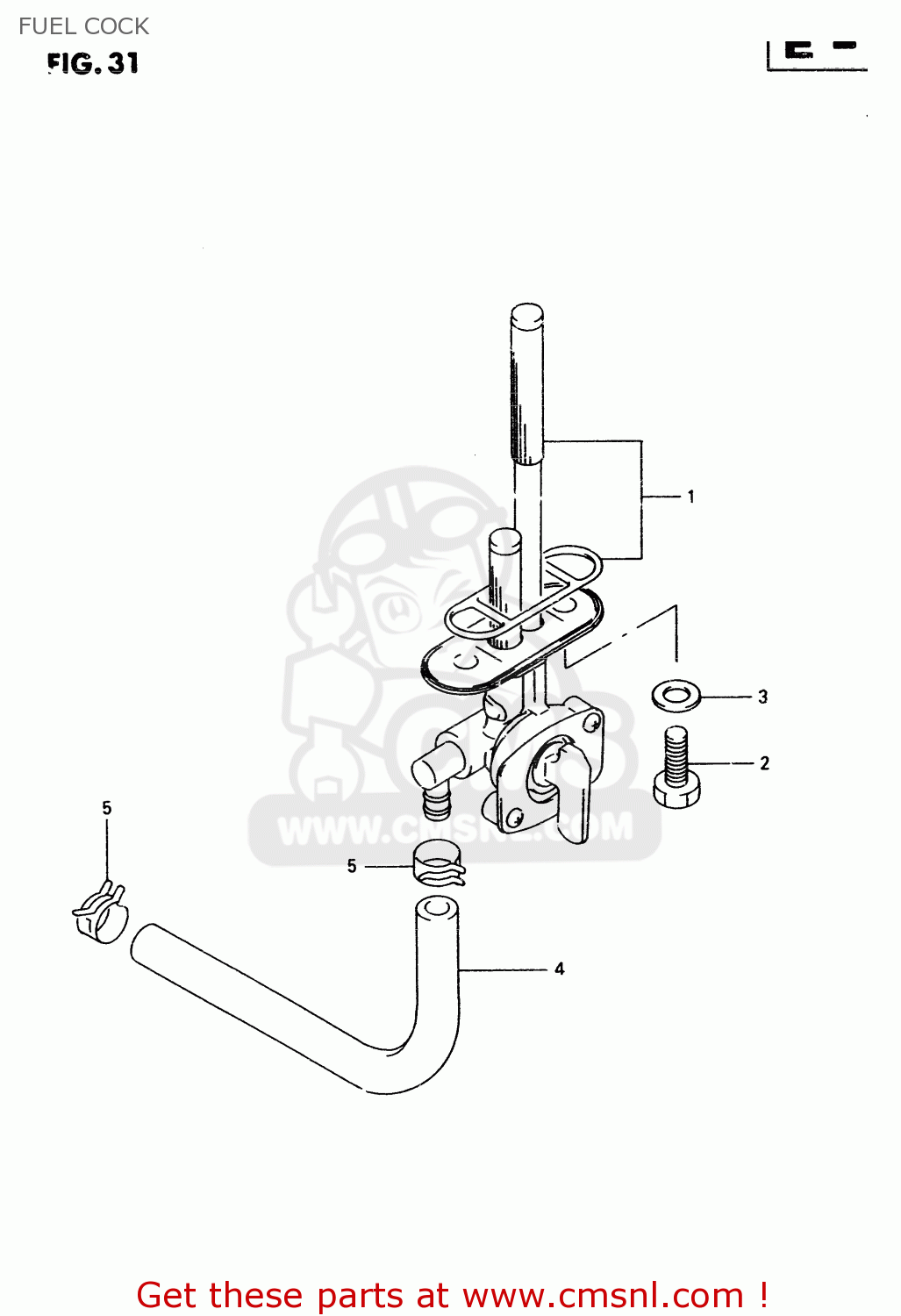

Fuel cock diagram TU250X 1997 (V) (E02 E04 E17 E24 E25 E34 E39)

FUEL COCK TU250X 1997 (V) (E02 E04 E17 E24 E25 E34 E39)

FUEL COCK TU250X 1997 (V) (E02 E04 E17 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

4430025D00
ref: 1

COCK ASSY,FUEL

€ 102.50

2

0912806057
ref: 2

BOLT(6X20)

€ 2.00

3

0916806026
ref: 3

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

4

0935550105600
ref: 4

HOSE(5X10X600)

€ 7.50

5

0940109403
ref: 5

CLIP

€ 2.50
