HANDLE SWITCH

TU250X 1997 (V) (E02 E04 E17 E24 E25 E34 E39)

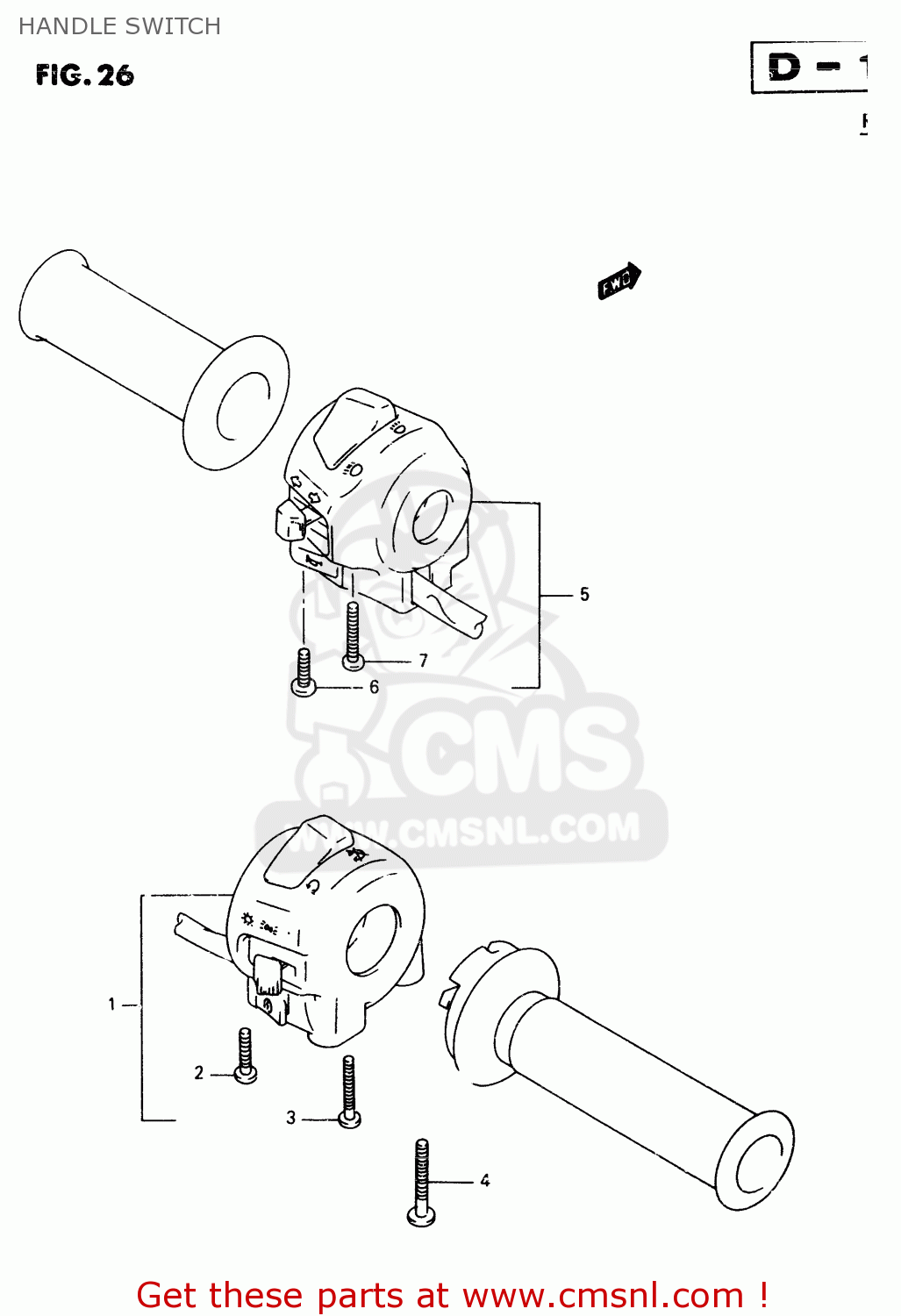

Handle switch diagram TU250X 1997 (V) (E02 E04 E17 E24 E25 E34 E39)

HANDLE SWITCH TU250X 1997 (V) (E02 E04 E17 E24 E25 E34 E39)

HANDLE SWITCH TU250X 1997 (V) (E02 E04 E17 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

3720027E11
ref: 1-1

SWITCH ASSY,HANDLE,R

€ 176.00

1-2

3720027E31
ref: 1-2
E24

SWITCH ASSY,HANDLE,R

€ 165.00

2

0211205303
ref: 2

SCREW

€ 1.50

3

0211205503
ref: 3

SCREW

€ 2.00

4

0211205103
ref: 4

SCREW

€ 2.00

5

3740027E60
ref: 5

SWITCH ASSY,HANDLE,L

€ 131.50

6

0211205253
ref: 6

SCREW

€ 1.50

7

0211205453
ref: 7

SCREW

€ 4.00
