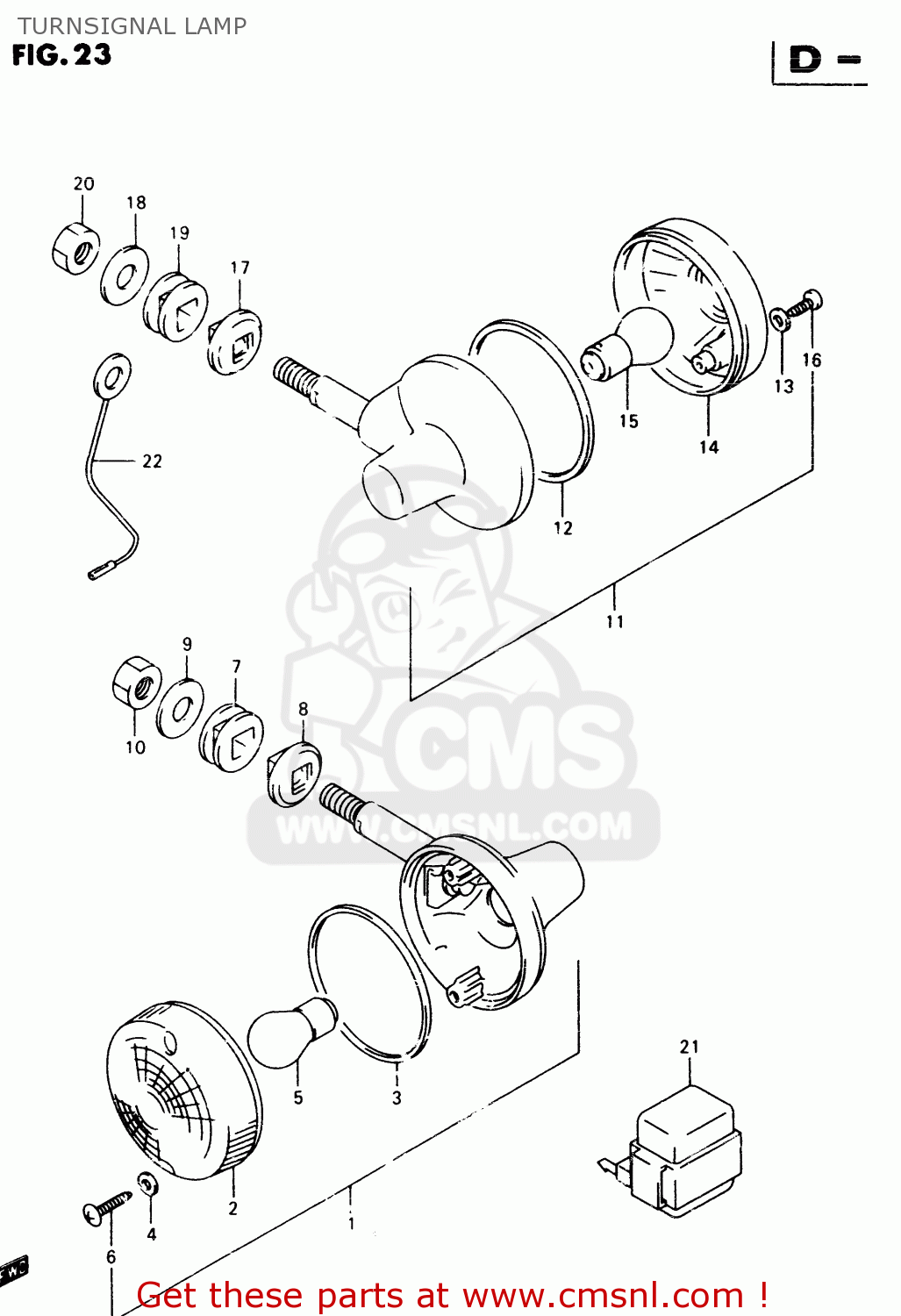

TURNSIGNAL LAMP

ref

part #

description

quantity

1-1

3560139360
ref: 1-1

LAMP ASSY,FR TURN SIGNAL

€ 76.00

1-2

3560139370
ref: 1-2
E24

LAMP ASSY, FRONT TURN SIGNAL

€ 78.50

2

3561202460
ref: 2

LENS

€ 9.00

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

3562743010
ref: 4

GASKET (NAS)

€ 2.00

5

0947112045
ref: 5

BULB(12V21W)

€ 5.00

6

0321104208
ref: 6

SCREW

€ 1.50

7

3569032200
ref: 7

CUSHION

€ 38.50

8

3569536590
ref: 8

SPACER

€ 6.00

9

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

10

0831000107
ref: 10

NUT

€ 2.50

11

3560339360
ref: 11

LAMP ASSY,RR TURNSIGNAL

€ 121.50

12

3561228620
ref: 12

LENS

€ 10.50

13

3562743010
ref: 13

GASKET (NAS)

€ 2.00

14

3565202470
ref: 14

LENS

€ 7.00

15

0947112045
ref: 15

BULB(12V21W)

€ 5.00

16

0321104208
ref: 16

SCREW

€ 1.50

17

3569536590
ref: 17

SPACER

€ 6.00

18

0916010006
ref: 18

WASHER (10.5X30X2.3)

€ 2.50

19

0932015004
ref: 19

CUSHION

€ 5.00

20

0831000107
ref: 20

NUT

€ 2.50

21-1

3861045D01
ref: 21-1
MODEL V

RELAY ASSY,TURNSIGNAL LAMP

€ 68.50

21-2

3861026E00
ref: 21-2
MODEL W

RELAY ASSY

€ 47.00

22

3666033000
ref: 22

LEAD WIRE,EARTH

€ 5.00

all assemblies
