MAGNETO

TU250X 1997 (V) (E02 E04 E17 E24 E25 E34 E39)

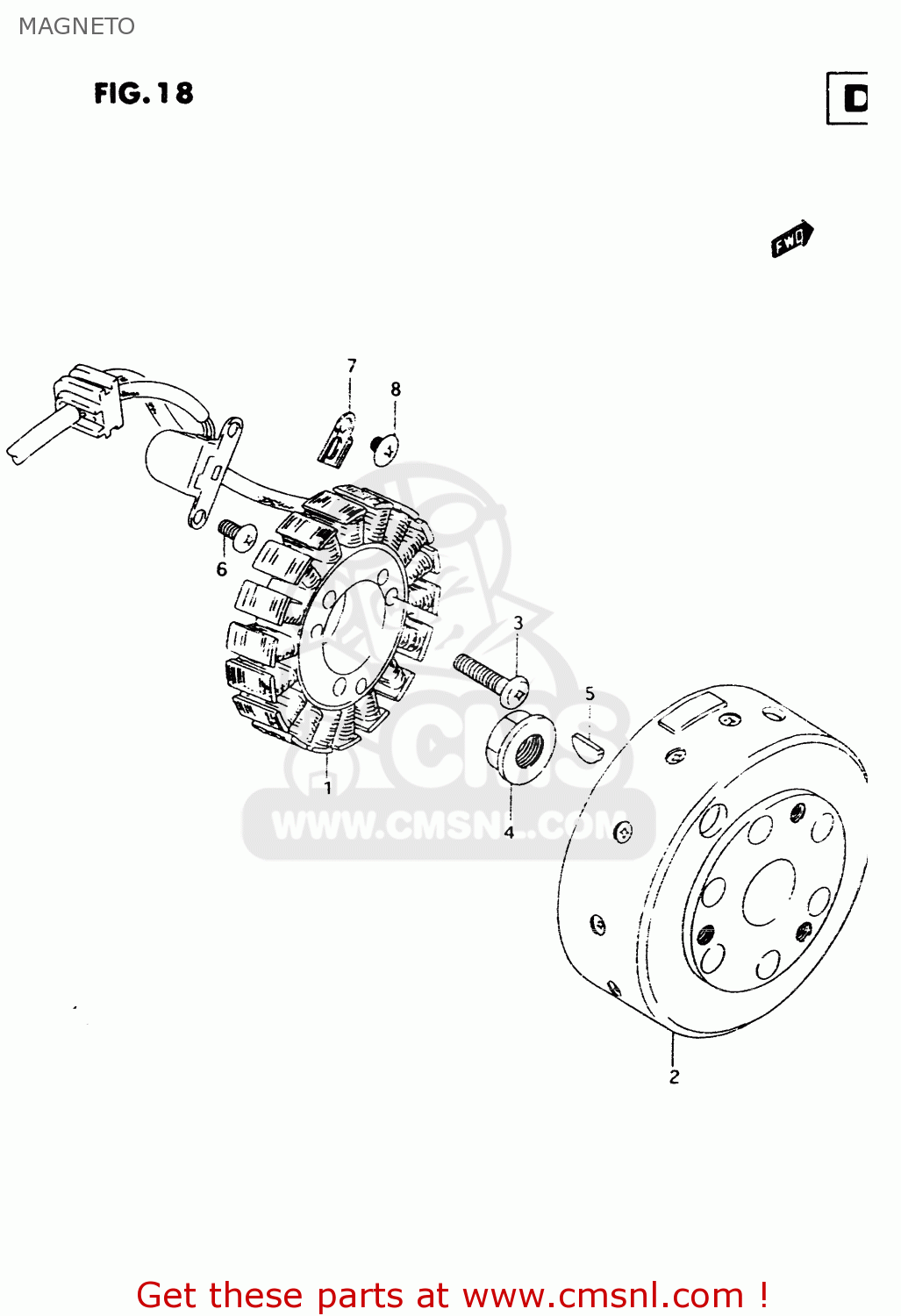

Magneto diagram TU250X 1997 (V) (E02 E04 E17 E24 E25 E34 E39)

MAGNETO TU250X 1997 (V) (E02 E04 E17 E24 E25 E34 E39)

MAGNETO TU250X 1997 (V) (E02 E04 E17 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

3210138302
ref: 1

STARTER ASSY

€ 665.00

2

3210238301
ref: 2

ROTOR

€ 309.00

3

0211206253
ref: 3

SCREW

€ 1.50

4

3179249200
ref: 4

NUT,GENERATOR ROTOR

€ 10.00

5

0834131039
ref: 5

KEY

€ 2.00

6

0211205103
ref: 6

SCREW

€ 2.00

7

0149745000
ref: 7

CLAMP, GENERATOR LEAD WIRE

€ 0.00

8

0214235083
ref: 8

SCREW

€ 2.50
