CRANKCASE COVER

VL1500 BOULEVARD C90 2009 (K9) USA (E03)

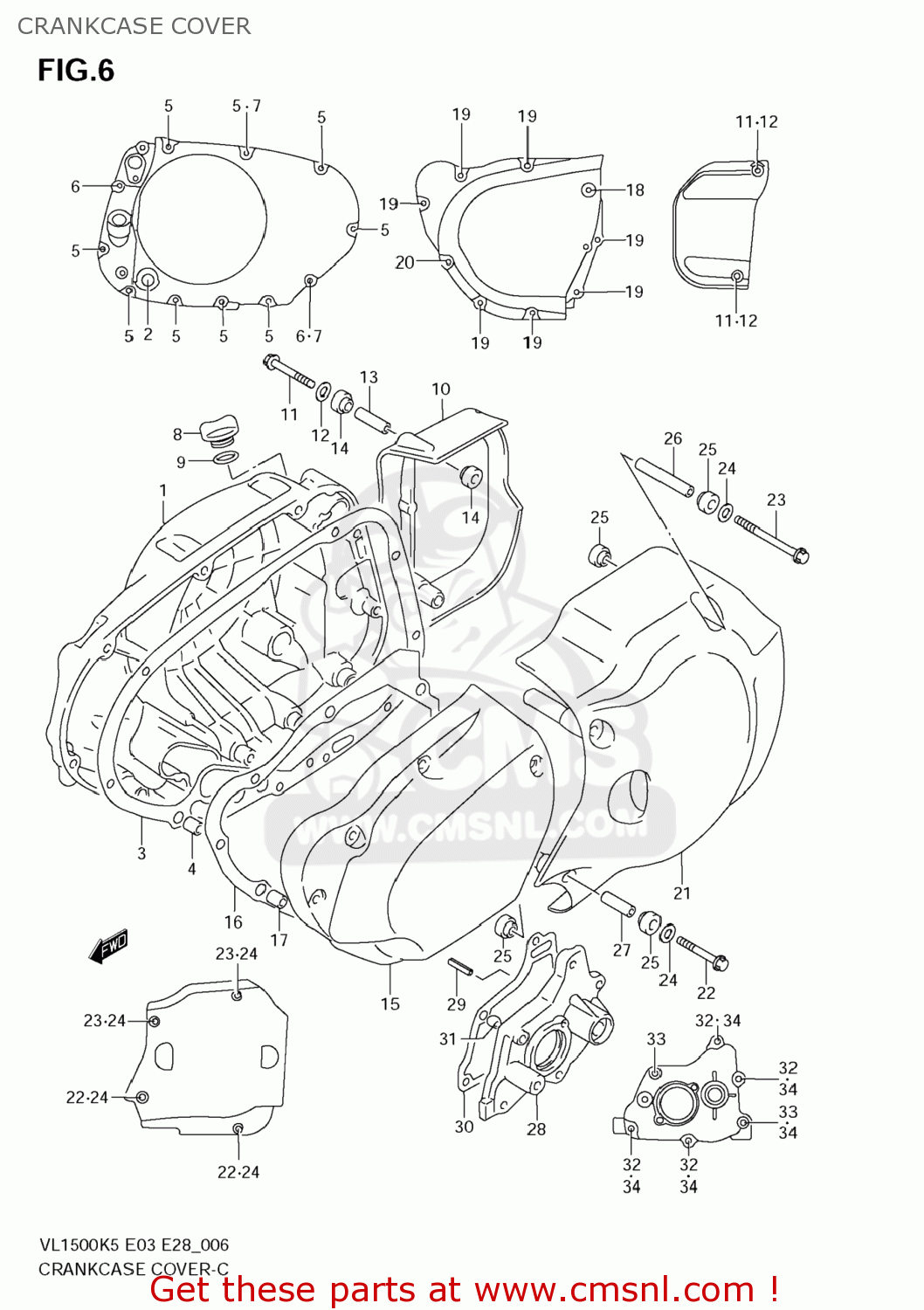

Crankcase cover diagram VL1500 BOULEVARD C90 2009 (K9) USA (E03)

CRANKCASE COVER VL1500 BOULEVARD C90 2009 (K9) USA (E03)
CRANKCASE COVER VL1500 BOULEVARD C90 2009 (K9) USA (E03)
CRANKCASE COVER VL1500 BOULEVARD C90 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1134010F00
ref: 1
COVER,CLUTCH
1134010F00
€ 577.00
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
1197145010
€ 13.00
3
1148238B20
ref: 3
GASKET,CLUTCH COVER (NAS)
1148238B20
€ 22.50
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0910306213
ref: 5
BOLT(6X30)
0910306213
€ 2.50
6
0910306215
ref: 6
BOLT(6X40)
0910306215
€ 2.00
7
0916806023
ref: 7
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
8
1197125D00
ref: 8
PLUG,ENGINE OIL FILLER
1197125D00
€ 5.50
9
0928017003
ref: 9
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
10
1138110F00
ref: 10
COVER,CLUTCH RR
1138110F00
€ 142.00
11
0910606107
ref: 11
BOLT(6X45)
€ 4.00
12
0916006125
ref: 12
WASHER(6.5X14X1.6)
0916006125
€ 2.00
13
0918006277
ref: 13
SPACER(6.5X9X31.5)
0918006277
€ 4.00
14
0916109005
ref: 14
WASHER(8.7X16X5)
0916109005
€ 2.50
15
1135110F00
ref: 15
COVER,GENERATOR
1135110F00
€ 437.00
16
1148310F10
ref: 16
GASKET,GENERATOR COVER (NAS)
1148310F10
€ 14.50
17
0920611007
ref: 17
PIN(8.4X11X20)
0920611007
€ 1.50
18
0910306227
ref: 18
BOLT(6X95)
0910306227
€ 3.00
19
0910306214
ref: 19
BOLT(6X35)
0910306214
€ 2.50
20
0910306224
ref: 20
BOLT(6X45)
0910306224
€ 3.00
21
1136110F00
ref: 21
COVER,SECONDARY DRIVE UNIT
1136110F00
€ 812.50
22
0910306215
ref: 22
BOLT(6X40)
0910306215
€ 2.00
23
0910306225
ref: 23
BOLT(6X70)
0910306225
€ 3.50
24
0916006125
ref: 24
WASHER(6.5X14X1.6)
0916006125
€ 2.00
25
0916109005
ref: 25
WASHER(8.7X16X5)
0916109005
€ 2.50
26
0918006233
ref: 26
SPACER(6.1X9X55.9)
0918006233
€ 8.00
27
0918006302
ref: 27
SPACER(6.5X9X26)
0918006302
€ 7.00
28
1137010F00
ref: 28
COVER,GEAR SHIFT
€ 72.00
29
0920503023
ref: 29
PIN,SPRING(3.5X16)
0920503023
€ 1.50
30
1148510F10
ref: 30
GASKET,GEAR SHIFT COVER (NAS)
1148510F10
€ 6.50
31
0421109109
ref: 31
PIN
0421109109
€ 2.00
32
015470625B
ref: 32
BOLT
015470625B
€ 2.50
33
015470635B
ref: 33
BOLT
015470635B
€ 3.00
34
0916806023
ref: 34
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
