STARTER CLUTCH

VL1500 BOULEVARD C90 2009 (K9) USA (E03)

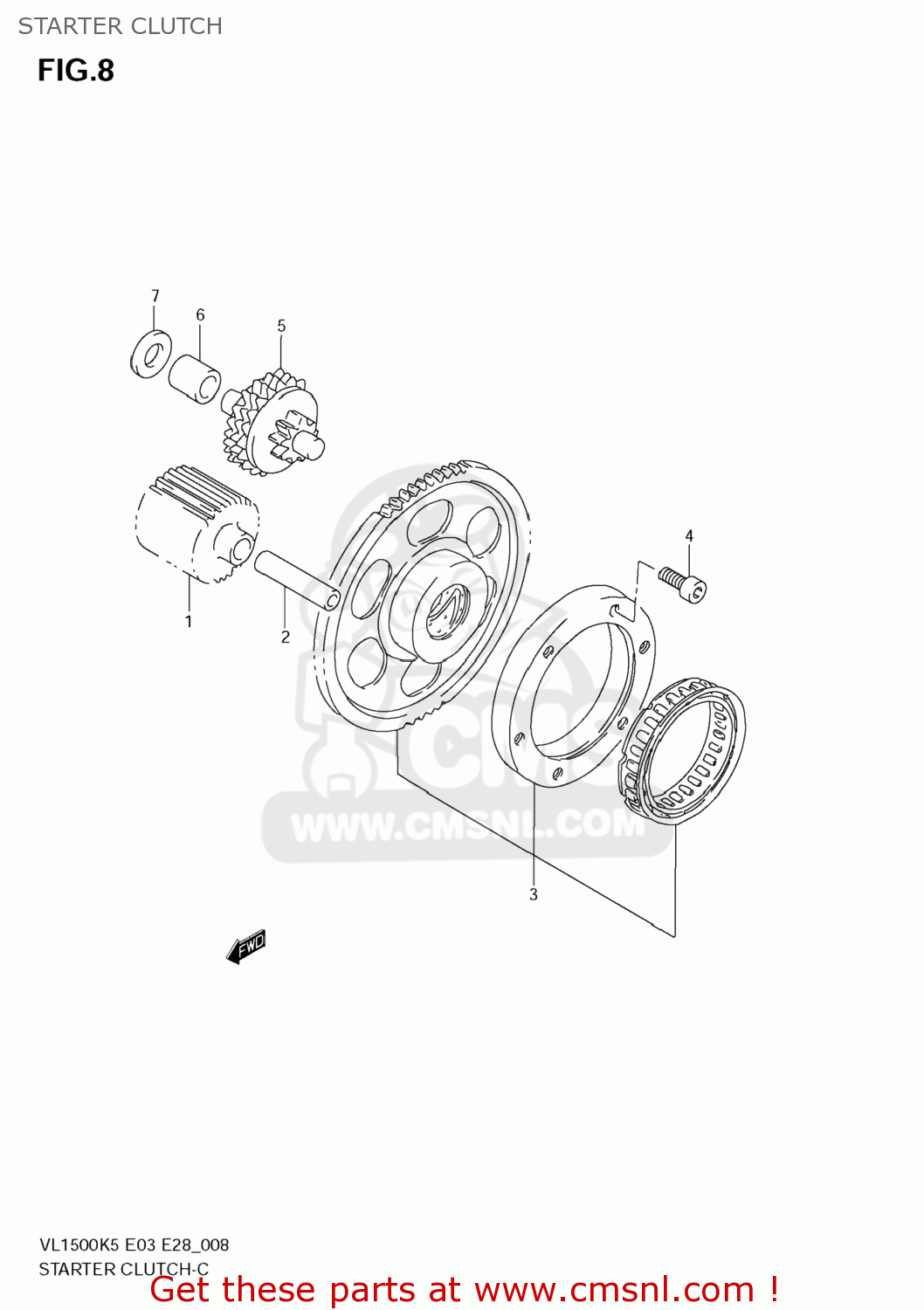

Starter clutch diagram VL1500 BOULEVARD C90 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1261110F00
ref: 1

GEAR,STARTER IDLE NO.1

€ 56.00

0920611015
ref: 2

PIN(7X11X55)

€ 9.00

1260010860
ref: 3

CLUTCH SET,STARTER

€ 374.00

0910608095
ref: 4

BOLT(8X16)

€ 2.50

1260024B00
ref: 5
12600-24B01

LIMITER ASSEMBLY,STARTER IDLER GEAR

€ 223.00

1260024B00
ref: 5
12600-24B01

LIMITER ASSEMBLY,STARTER IDLER GEAR

€ 223.00

1261831D01
ref: 6

BUSH,LIMITER GEAR SHAFT

€ 17.50

0918110195
ref: 7

SHIM(10X20X1)

€ 2.00
