SIDE COVER (MODEL K8)

VL1500 BOULEVARD C90 2009 (K9) USA (E03)

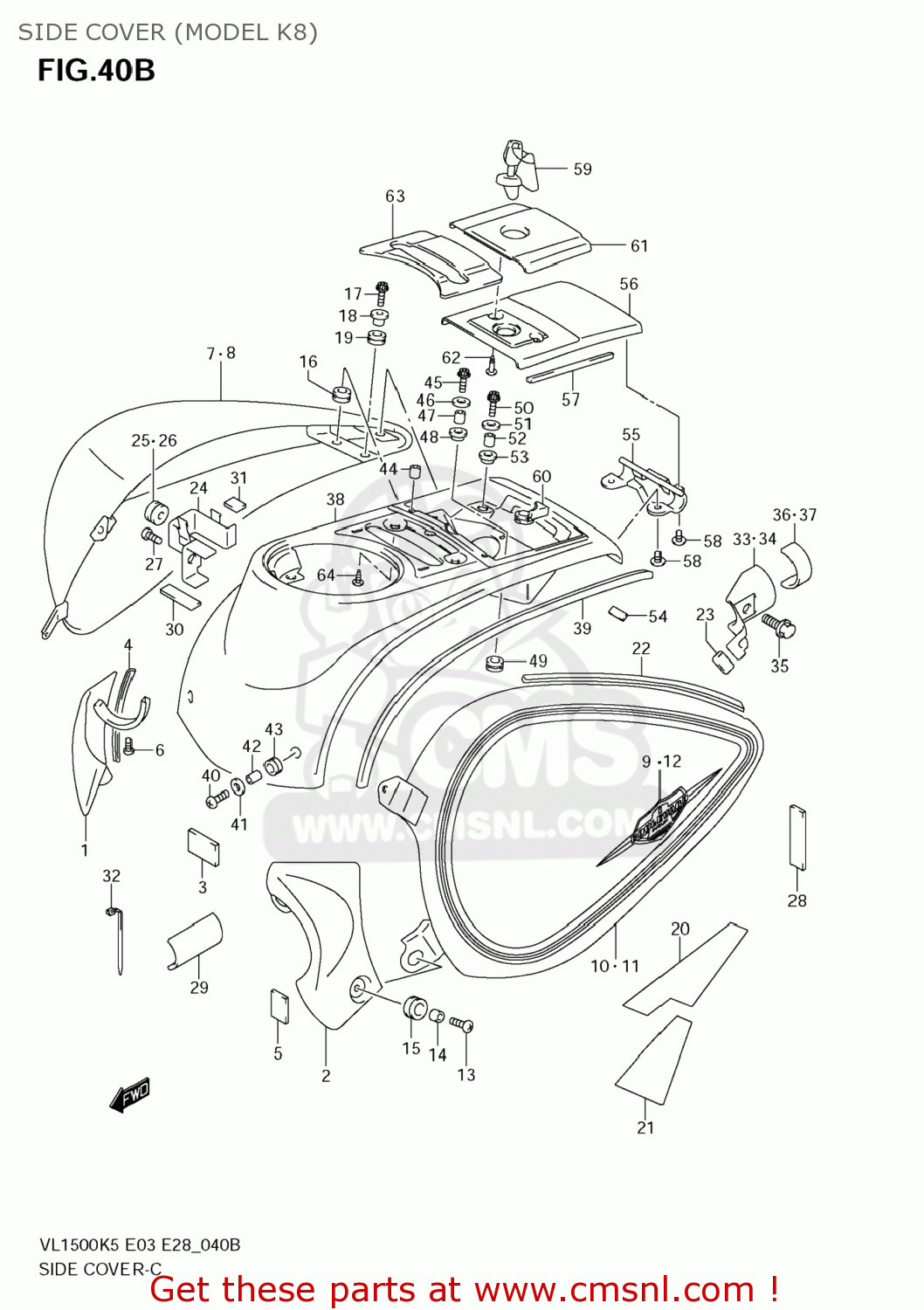

Side cover (model k8) diagram VL1500 BOULEVARD C90 2009 (K9) USA (E03)

SIDE COVER (MODEL K8) VL1500 BOULEVARD C90 2009 (K9) USA (E03)
SIDE COVER (MODEL K8) VL1500 BOULEVARD C90 2009 (K9) USA (E03)
SIDE COVER (MODEL K8) VL1500 BOULEVARD C90 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4751010F01
ref: 1
COVER,FRAME HEAD,R
4751010F01
€ 120.00
2
4752010F02
ref: 2
COVER,FRAME HEAD,L
4752010F02
€ 120.00
3
4782910F00
ref: 3
44612-13600
CUSHION,METER COVER RE
€ 3.00
4
4751410F00
ref: 4
MOLDING,FRAME HEAD COVER
4751410F00
€ 5.50
5
4716110D00
ref: 5
PROTECTOR,FRAME COVER
4716110D00
€ 3.50
6
0913906028
ref: 6
SCREW(6X20)
0913906028
€ 3.50
7-1
4780010F50YAY
ref: 7-1
COVER ASSY,SIDE UPR,R
4780010F50YAY
€ 406.50
7-2
4780010FC0EUJ
ref: 7-2
COVER ASSY,SIDE UPR,R
€ 637.00
8-1
4780010F70YHF
ref: 8-1
COVER ASSY,SIDE UPR,R
€ 658.00
8-2
4780010F70YBA
ref: 8-2
COVER ASSY,SIDE UPR,R
€ 587.50
9
6811110FA0
ref: 9
68111-10FA1
EMBLEM,SIDE CO
6811110FA0
€ 61.00
10-1
4790010F50YAY
ref: 10-1
COVER ASSY,SIDE UPR,L
€ 528.50
10-2
4790010FC0EUJ
ref: 10-2
COVER ASSY,SIDE UPR,L
€ 637.00
11-1
4790010F70YHF
ref: 11-1
COVER ASSY,SIDE UPR,L
€ 658.00
11-2
4790010F70YBA
ref: 11-2
COVER ASSY,SIDE UPR,L
4790010F70YBA
€ 587.50
12
6812110FA0
ref: 12
68121-10FA1
EMBLEM,SIDE CO
6812110FA0
€ 61.00
13
0913906030
ref: 13
SCREW(6X16)
0913906030
€ 3.50
14
0918006260
ref: 14
SPACER(6.5X9X7.2)
0918006260
€ 3.50
15
0932008021
ref: 15
CUSHION
0932008021
€ 4.00
16
4782210F00
ref: 16
CUSHION,SIDE UP METER & FRAME
4782210F00
€ 7.50
17
071200620B
ref: 17
BOLT
071200620B
€ 3.50
18
4782710F00
ref: 18
WASHER,SIDE UPR COVER
4782710F00
€ 5.00
19
4782610F00
ref: 19
CUSHION,SIDE UPR COVER
4782610F00
€ 7.50
20
4783510FA0
ref: 20
SHIELD,SIDE UPR COVER,R
€ 43.50
21
4783610FA0
ref: 21
SHIELD,SIDE UPR COVER,L
€ 43.50
22
4783710FA0
ref: 22
MOLDING,SIDE UPR COVER UNDER
4783710FA0
€ 9.50
23
4716610FA0
ref: 23
CUSHION,BRACKET
€ 4.00
24
4785010FA0
ref: 24
BRACKET,SIDE UPR COVER
€ 9.00
25
0932110034
ref: 25
CUSHION
0932110034
€ 6.50
26
0932110012
ref: 26
CUSHION
0932110012
€ 3.00
27
015500616B
ref: 27
BOLT
015500616B
€ 2.50
28
4716410FA0
ref: 28
TAPE,HEAT SHIELD
€ 6.00
29
4716510FA0
ref: 29
CUSHION,SIDE COVER FR
€ 10.00
30
3181229F00
ref: 30
PROTECTOR,STARTING MOTOR LEAD
3181229F00
€ 3.50
31
1776509F00
ref: 31
PROTECTOR,CTR
1776509F00
€ 2.50
32
0940718402
ref: 32
CLAMP(L:165)
0940718402
€ 2.50
33
4783910FA0
ref: 33
BRACKET,SIDE UPR COVER,R
€ 8.00
34
4784910FA0
ref: 34
BRACKET,SIDE UPR COVER,L
€ 10.50
35
015500616B
ref: 35
BOLT
015500616B
€ 2.50
36
4716110FA0
ref: 36
CUSHION,BRACKET NO.1
€ 5.00
37
4716210FA0
ref: 37
CUSHION,BRACKET NO.2
€ 5.00
38
4782110FA0
ref: 38
COVER,METER & FUEL INLET
€ 633.00
39
4782410FB0
ref: 39
MOLDING,METER COVER
4782410FB0
€ 11.50
40
0913906030
ref: 40
SCREW(6X16)
0913906030
€ 3.50
41
0916006036
ref: 41
WASHER(6.5X18X1.5)
0916006036
€ 1.50
42
0918006256
ref: 42
SPACER(6.5X9X5.7)
0918006256
€ 2.00
43
0932008051
ref: 43
09320-08066
CUSHION
0932008051
€ 7.50
44
0932106013
ref: 44
CUSHION
0932106013
€ 2.50
45
071200625B
ref: 45
BOLT
071200625B
€ 2.50
46
0916006084
ref: 46
WASHER(6.5X18X1.6)
0916006084
€ 2.00
47
0918006265
ref: 47
SPACER(6.5X9X11)
0918006265
€ 4.50
48
4782510F00
ref: 48
CUSHION,METER COVER
4782510F00
€ 7.50
49
4782210F00
ref: 49
CUSHION,SIDE UP METER & FRAME
4782210F00
€ 7.50
50
071200616B
ref: 50
BOLT
071200616B
€ 2.50
51
0916006084
ref: 51
WASHER(6.5X18X1.6)
0916006084
€ 2.00
52
0918006256
ref: 52
SPACER(6.5X9X5.7)
0918006256
€ 2.00
53
0932008051
ref: 53
09320-08066
CUSHION
0932008051
€ 7.50
54
4782910F00
ref: 54
44612-13600
CUSHION,METER COVER RE
€ 3.00
55
4738010F01
ref: 55
HINGE,FUEL LID
€ 16.00
56
4781110FA0
ref: 56
LID,FUEL INLET
4781110FA0
€ 180.00
57
4781210F00
ref: 57
CUSHION,FUEL LID
4781210F00
€ 4.50
58
021420612B
ref: 58
SCREW
021420612B
€ 2.00
59
9570007860
ref: 59
LOCK SET,COVER
9570007860
€ 76.00
60
4782810F00
ref: 60
CUSHION,RR,L
4782810F00
€ 15.00
61
4781210FA0
ref: 61
COVER,FUEL LID
4781210FA0
€ 17.00
62
035410512B
ref: 62
SCREW
035410512B
€ 2.00
63
4782210FA0
ref: 63
COVER,METER SWITCH
€ 10.50
64
035410512B
ref: 64
SCREW
035410512B
€ 2.00
