REAR MASTER CYLINDER

VL1500 BOULEVARD C90 2009 (K9) USA (E03)

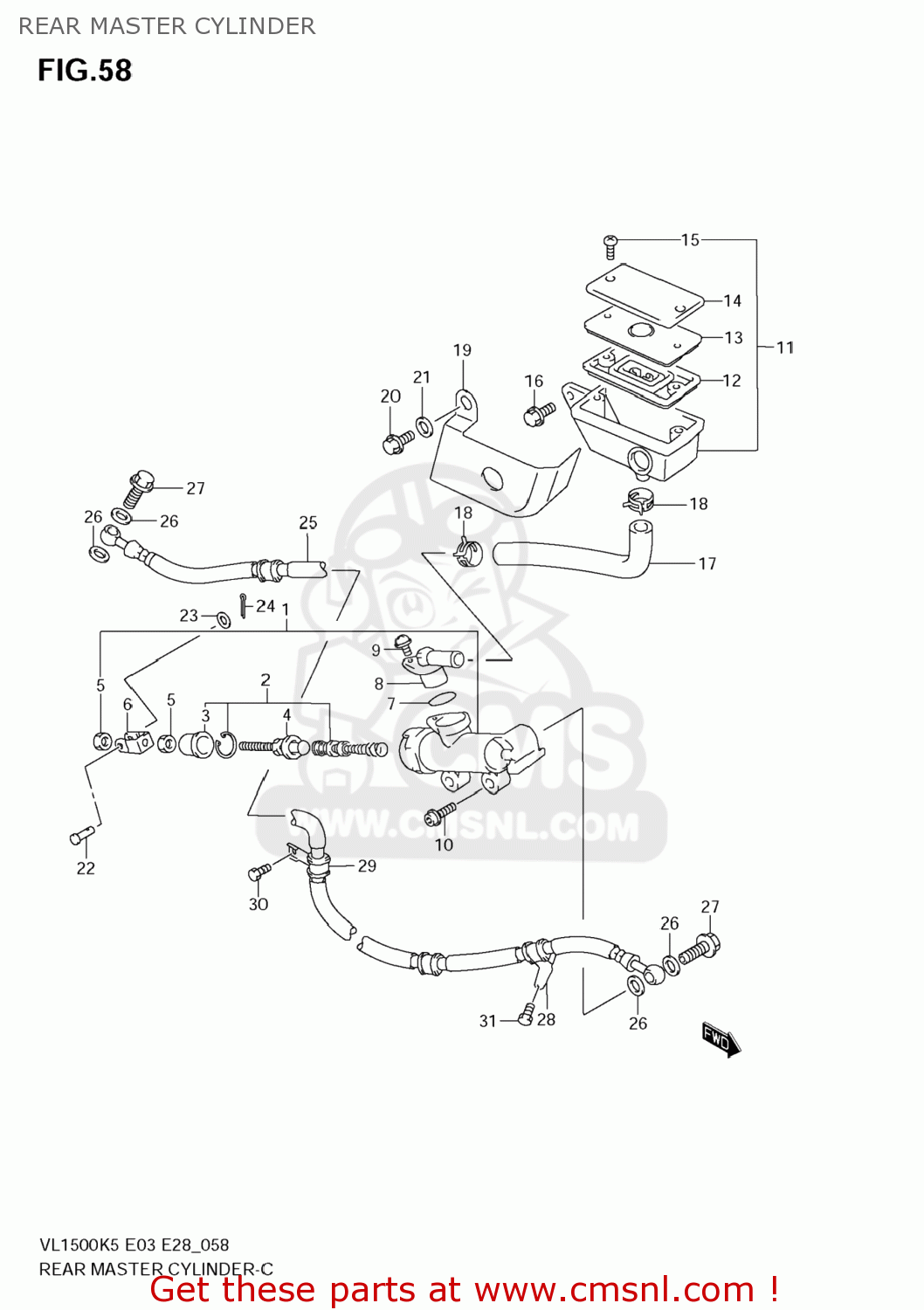

Rear master cylinder diagram VL1500 BOULEVARD C90 2009 (K9) USA (E03)

REAR MASTER CYLINDER VL1500 BOULEVARD C90 2009 (K9) USA (E03)
REAR MASTER CYLINDER VL1500 BOULEVARD C90 2009 (K9) USA (E03)
REAR MASTER CYLINDER VL1500 BOULEVARD C90 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6960010F00
ref: 1
CYLINDER ASSY,RR MASTER
6960010F00
€ 194.50
2
6960004820
ref: 2
PISTON/CUP SET
6960004820
€ 31.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6967000B21
ref: 4
ROD,PUSH
6967000B21
€ 24.00
5
6969305A00
ref: 5
NUT
6969305A00
€ 1.50
6
6969227A30
ref: 6
YOKE
6969227A30
€ 12.50
7
6968634200
ref: 7
O RING
6968634200
€ 3.50
8
6967205A00
ref: 8
CONNECTOR
6967205A00
€ 4.50
9
021127412A
ref: 9
SCREW
021127412A
€ 2.50
10-1
0712006163
ref: 10-1
07120-0616B
BOLT MAGNETO S
0712006163
€ 2.50
10-2
071200616B
ref: 10-2
BOLT
071200616B
€ 2.50
11
6974010F00
ref: 11
TANK ASSY,RR RESERVOIR
€ 98.50
12
5966749460
ref: 12
5966749460
13
5966841C00
ref: 13
PLATE,DIAPHRAGM
5966841C00
€ 8.00
14
5966941C00
ref: 14
CAP
5966941C00
€ 30.00
15
6968949300
ref: 15
SCREW
6968949300
€ 1.50
16-1
0155006163
ref: 16-1
01550-0616A
BOLT
0155006163
€ 2.50
16-2
015500616B
ref: 16-2
BOLT
015500616B
€ 2.50
17
6973110F00
ref: 17
HOSE,RESERVOIR TANK
€ 14.50
18
0940113417
ref: 18
CLIP
0940113417
€ 2.50
19
6979510F00
ref: 19
COVER,RESERVOIR TANK
€ 17.50
20
015500610B
ref: 20
BOLT
015500610B
€ 2.50
21-1
0832201063
ref: 21-1
08322-0106B
WASHER
0832201063
€ 2.00
21-2
083220106B
ref: 21-2
WASHER
083220106B
€ 2.00
22
0920006068
ref: 22
PIN(6X18.2)
0920006068
€ 5.00
23-1
0832201063
ref: 23-1
08322-0106B
WASHER
0832201063
€ 2.00
23-2
083220106B
ref: 23-2
WASHER
083220106B
€ 2.00
24-1
0411120158
ref: 24-1
04111-2015A
PIN
0411120158
€ 1.50
24-2
041112015A
ref: 24-2
PIN
041112015A
€ 1.50
25-1
6948010F20
ref: 25-1
69480-10F30
HOSE,REAR BRAK
€ 131.50
25-2
6948010F30
ref: 25-2
HOSE,RR BRAKE
€ 131.50
26
0916110009
ref: 26
WASHER(10X15X1.5)
0916110009
€ 2.00
27-1
0936010042
ref: 27-1
09360-10062
BOLT UNION
0936010042
€ 5.00
27-2
0936010062
ref: 27-2
BOLT UNION
0936010062
€ 5.00
28
6926810F10
ref: 28
CLAMP,RR BRAKE HOSE
€ 7.00
29
5926801D10
ref: 29
CLAMP,FRONT BRAKE NO.2
5926801D10
€ 6.00
30-1
0216206123
ref: 30-1
02162-0612A
BOLT
€ 1.50
30-2
021620612A
ref: 30-2
SCREW
021620612A
€ 2.50
31-1
0155006163
ref: 31-1
01550-0616A
BOLT
0155006163
€ 2.50
31-2
015500616A
ref: 31-2
BOLT
015500616A
€ 2.50
