GEAR SHIFTING

VL1500 BOULEVARD C90 2009 (K9) USA (E03)

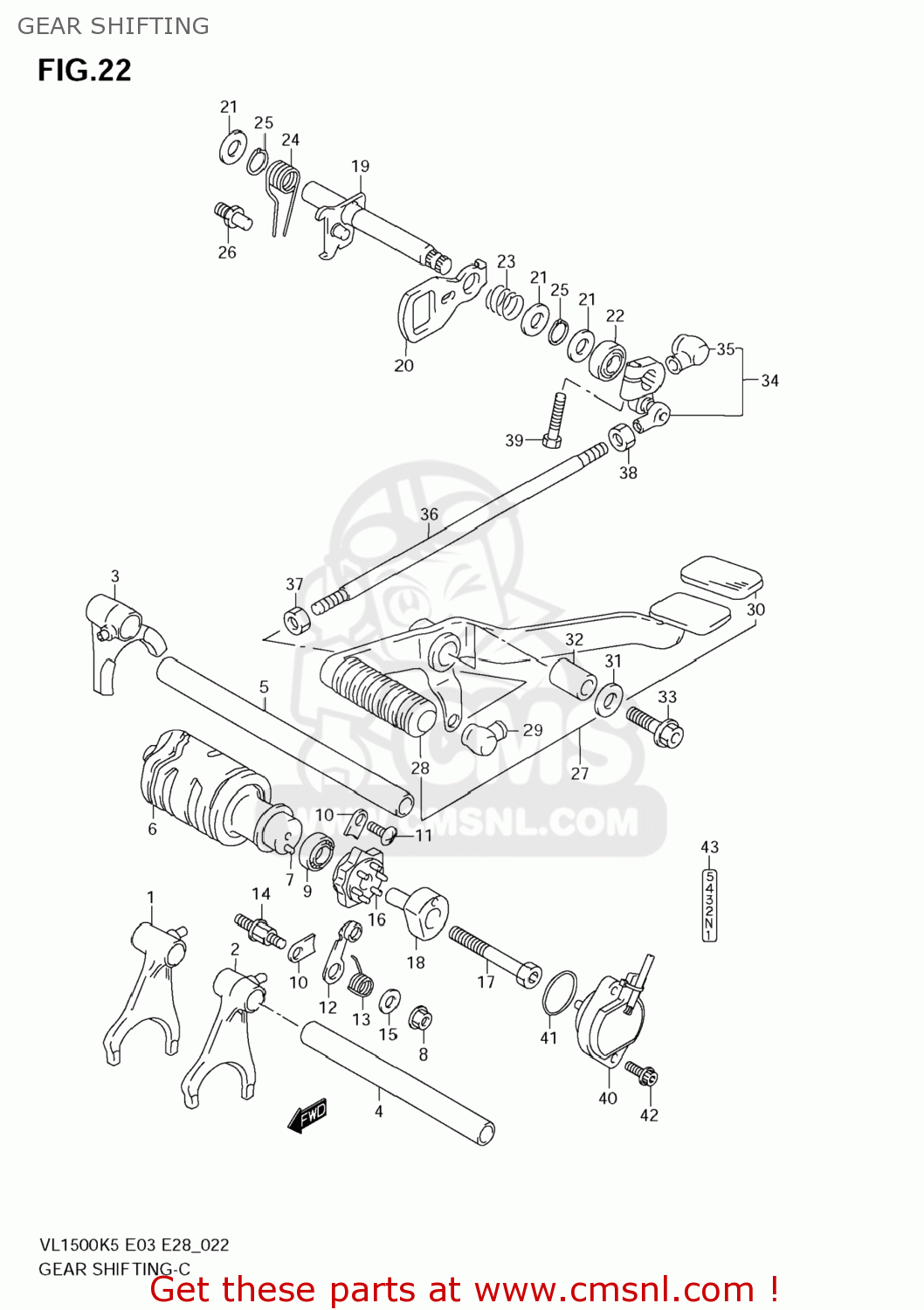

Gear shifting diagram VL1500 BOULEVARD C90 2009 (K9) USA (E03)

GEAR SHIFTING VL1500 BOULEVARD C90 2009 (K9) USA (E03)
GEAR SHIFTING VL1500 BOULEVARD C90 2009 (K9) USA (E03)
GEAR SHIFTING VL1500 BOULEVARD C90 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2521138B11
ref: 1
FORK,GEAR SHIFT NO.1
2521138B11
€ 83.00
2
2522138B10
ref: 2
FORK,GEAR SHIFT NO.2
2522138B10
€ 83.00
3
2523110F01
ref: 3
FORK,GEAR SHIFT NO.3
2523110F01
€ 83.50
4
2541110F10
ref: 4
SHAFT,GEAR SHIFT FORK NO.1
€ 28.00
5
2541110F20
ref: 5
SHAFT GEAR SHIFT FORK NO.2
2541110F20
€ 29.50
6
2531010F01
ref: 6
CAM,GEAR SHIFT
2531010F01
€ 205.00
7
0422104089
ref: 7
PIN
0422104089
€ 1.50
8
083161006B
ref: 8
NUT
083161006B
€ 2.50
9
0926225006
ref: 9
BEARING(25X47X8)
0926225006
€ 24.00
10
2474218A00
ref: 10
RETAINER,BEARING
2474218A00
€ 2.00
11
021120612B
ref: 11
SCREW
021120612B
€ 1.50
12
2535024B00
ref: 12
STOPPER,GEAR SHIFT CAM
2535024B00
€ 8.00
13
2535513E20
ref: 13
SPRING,STOPPER ARM
€ 6.00
14
2535612C00
ref: 14
SUPPORT,CAM STOPPER ARM
2535612C00
€ 9.50
15
0821106181
ref: 15
WASHER
0821106181
€ 2.00
16-1
2538010F00
ref: 16-1
25381-10F10
PLATE,GEAR SHIFT CAM
2538010F00
€ 67.50
16-2
2538110F10
ref: 16-2
PLATE,GEAR SHIFT CAM
€ 67.50
17
0910606083
ref: 17
BOLT(6X50)
0910606083
€ 5.00
18
2531238B01
ref: 18
HOLDER,NEUTRAL SWITCH
2531238B01
€ 21.00
19
2551010F10
ref: 19
SHAFT,GEAR SHIFT
€ 97.50
20
2551206G10
ref: 20
PLATE,GEAR SHIFT CAM DRIVE
2551206G10
€ 20.00
21
0918114167
ref: 21
SHIM(14X22X1)
0918114167
€ 3.50
22
0928314006
ref: 22
SEAL,OIL(14X22X6)
0928314006
€ 6.50
23
0944017009
ref: 23
SPRING
0944017009
€ 1.50
24
0944420001
ref: 24
SPRING
0944420001
€ 5.00
25
083313114A
ref: 25
CIRCLIP
083313114A
€ 2.00
26
2567101011
ref: 26
STOPPER,GEAR SHIFT ARM
2567101011
€ 3.00
27
2560010F02
ref: 27
LEVER ASSY,GEAR SHIFT
2560010F02
€ 99.00
28
2565210F00
ref: 28
RUBBER
2565210F00
€ 8.00
29
2552647000
ref: 29
COVER,DUST
2552647000
€ 3.50
30
4315101400
ref: 30
RUBBER,BRAKE PEDAL
4315101400
€ 4.00
31
0916010127
ref: 31
09160-10093
WASHER (10.5X24X2.3)
0916010127
€ 2.00
32
2561710F00
ref: 32
SPSCER,GEAR SHIFT LEVER
2561710F00
€ 14.50
33
0910310300
ref: 33
BOLT(10X40)
0910310300
€ 5.50
34
2552022A00
ref: 34
ARM,GEAR SHIFT LINK
2552022A00
€ 46.50
35
2552647000
ref: 35
COVER,DUST
2552647000
€ 3.50
36
2552517E11
ref: 36
ROD,GEAR SHIFT LINK
2552517E11
€ 19.00
37
0914006025
ref: 37
NUT
0914006025
€ 2.00
38
083100006B
ref: 38
NUT
€ 2.00
39
015000620B
ref: 39
BOLT
015000620B
€ 1.50
40
3773010F01
ref: 40
SENSOR ASSY,GEAR POSITION
€ 147.50
41
0928035006
ref: 41
O RING(D:2.4,ID:35.5)
0928035006
€ 4.00
42
071200516A
ref: 42
BOLT
071200516A
€ 1.50
43
6839238B00
ref: 43
LABEL,GEAR SHIFT
€ 2.50
