FRONT CALIPER (MODEL W)

VL1500 INTRUDER 2000 (Y) USA (E03)

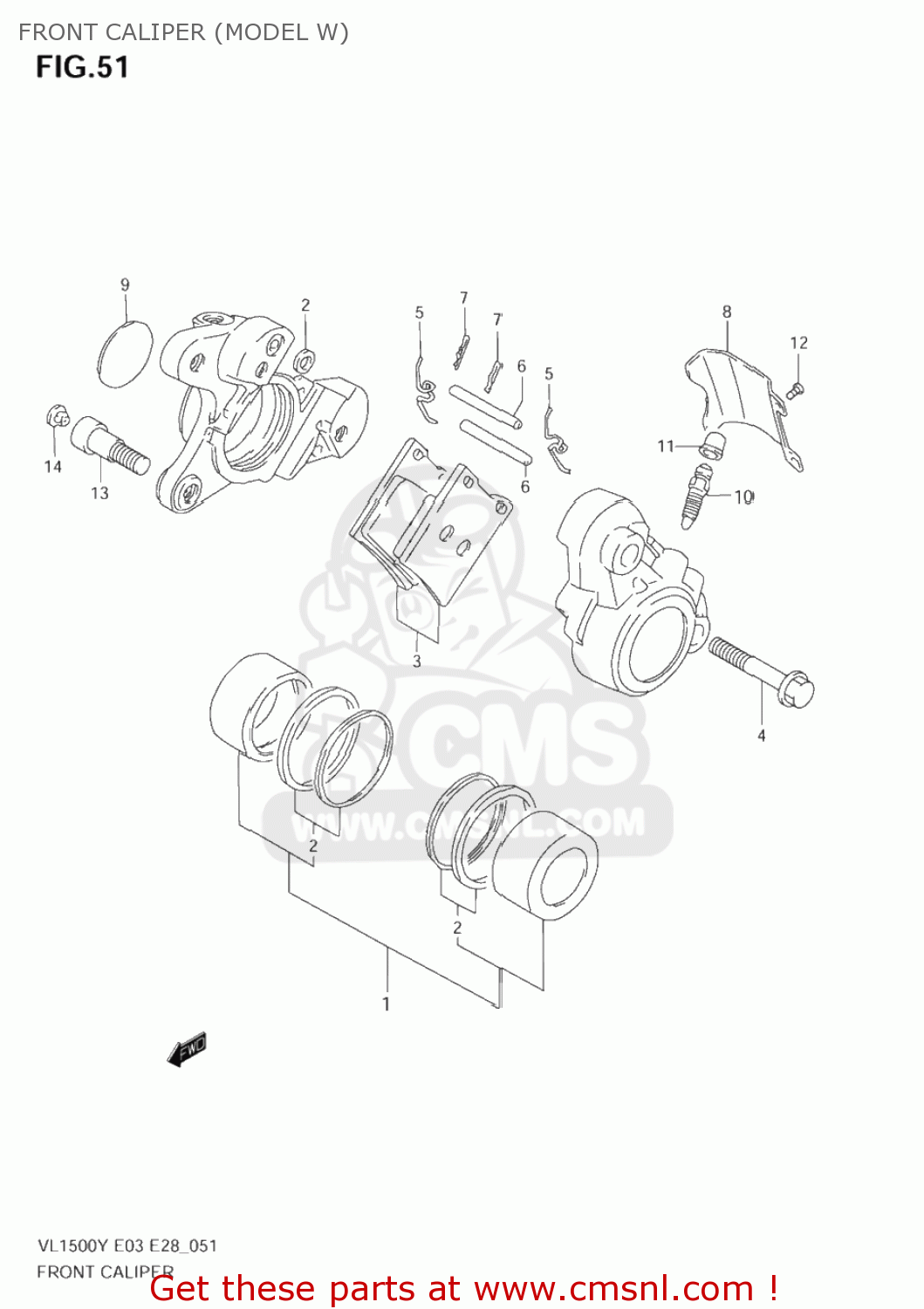

Front caliper (model w) diagram VL1500 INTRUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

5910010F00
ref:
59100-38B11-999

CALIPER ASSEMBLY,FRONT,RIGHT

€ 626.00

5910038811
ref: 1

PISTON SET

€ 154.50

5910038840
ref: 2

SEAL SET,PISTON

€ 30.50

5910010810
ref: 3
59100-10811

PAD SET (NAS)

€ 45.50

5914516700
ref: 4

BOLT,HOUSING

€ 8.00

5914316700
ref: 5

SPRING

€ 7.50

6914145000
ref: 6

PIN,PAD

€ 6.50

6914245000
ref: 7

CLIP,PAD PIN

€ 4.50

5915138B01
ref: 8

COVER,CALIPER HOUSING,DUST

€ 58.00

5915224A00
ref: 9

CAP,CALIPER

€ 23.50

5912118410
ref: 10

BLEEDER

€ 8.00

5515666310
ref: 11

CAP,BLEEDER PLUG

€ 6.00

5915338B10
ref: 12

SCREW,CALIPER COVER(4X6)

€ 7.50

0910610038
ref: 13

BOLT(10X33)

€ 4.50

0925008014
ref: 14

CAP(OD:12)

€ 3.50
