WIRING HARNESS (MODEL W/X)

VL1500 INTRUDER 2000 (Y) USA (E03)

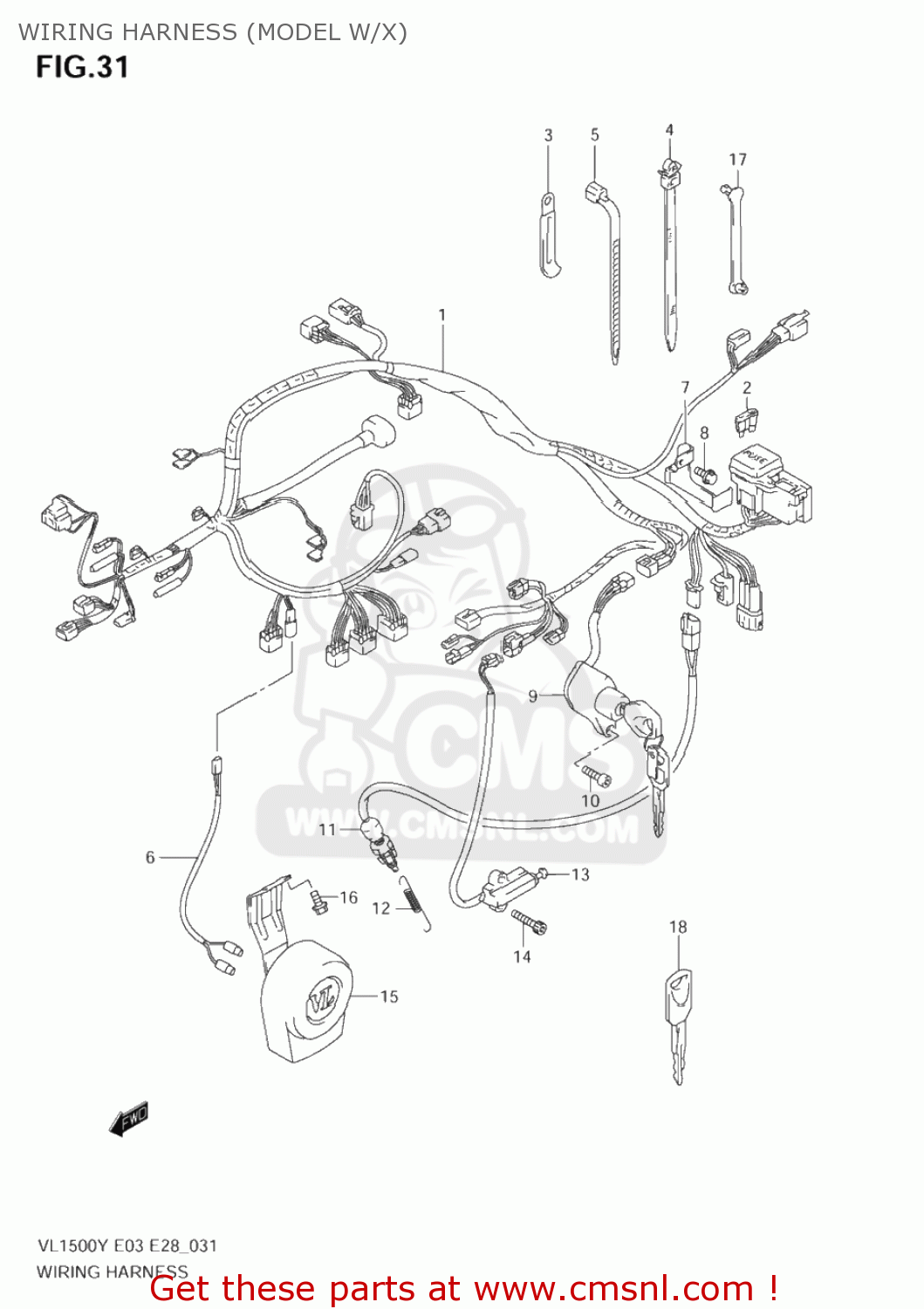

Wiring harness (model w/x) diagram VL1500 INTRUDER 2000 (Y) USA (E03)

WIRING HARNESS (MODEL W/X) VL1500 INTRUDER 2000 (Y) USA (E03)

WIRING HARNESS (MODEL W/X) VL1500 INTRUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3661010F10
ref: 1-1

HARNESS,WIRING

€ 504.50

1-2

3661010F60
ref: 1-2
36610-10F90

HARNESS,WIRING

€ 525.00

2-1

0948110501
ref: 2-1

FUSE(10A)

€ 3.00

2-2

0948115501
ref: 2-2

FUSE(15A)

€ 1.00

3-1

0940406429
ref: 3-1

CLAMP(L:45)

€ 2.50

3-2

0940406433
ref: 3-2

CLAMP(L:80)

€ 3.00

4

0940711402
ref: 4

CLAMP(L:90)

€ 2.50

5-1

0940714403
ref: 5-1

CLAMP(L:125)

€ 2.50

5-2

0940725401
ref: 5-2

CLAMP(L:235)

€ 4.00

5-3

0940718402
ref: 5-3

CLAMP(L:165)

€ 2.50

6

3685221E10
ref: 6

WIRE,HORN LEAD

€ 14.00

7

3674410F00
ref: 7

BRACKET,FUSE

€ 6.00

8

0155006123
ref: 8
01550-0612A

BOLT

€ 2.50

9

3711010F00
ref: 9

SWITCH ASSY,IGNITION

€ 87.50

10

0713006163
ref: 10
07130-0616B

BOLT,OIL FILLE

€ 3.00

11

3774010F00
ref: 11

SWITCH ASSY,STOP LAMP

€ 33.50

12

4313910F00
ref: 12

SPRING,STOP LAMP SWITCH

€ 7.00

13

3784010F00
ref: 13

SWITCH ASSY,SIDE STAND

€ 101.50

14

0214206203
ref: 14
02142-0620A

SCREW

€ 2.00

15

3850010F00
ref: 15

HORN ASSY

€ 102.50

16

0155006163
ref: 16
01550-0616A

BOLT

€ 2.50

17

0940703401
ref: 17

CLAMP(L:33)

€ 3.50

18

3714648E00
ref: 18
37146-48E10

KEY,BLANK

€ 21.00
