HANDLE SWITCH (MODEL W/X/Y/K1/K2)

VL1500 INTRUDER 2000 (Y) USA (E03)

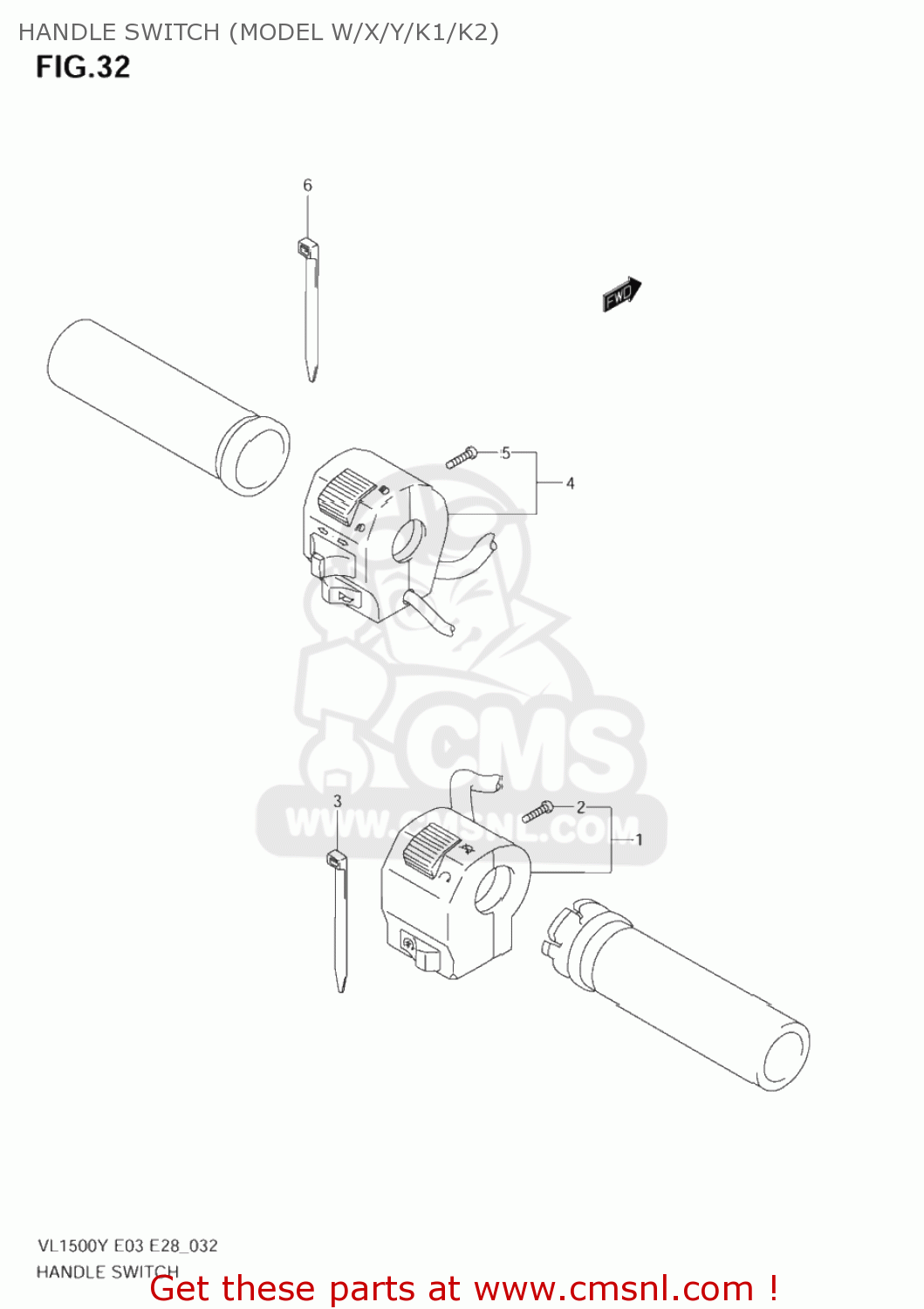

Handle switch (model w/x/y/k1/k2) diagram VL1500 INTRUDER 2000 (Y) USA (E03)

HANDLE SWITCH (MODEL W/X/Y/K1/K2) VL1500 INTRUDER 2000 (Y) USA (E03)

HANDLE SWITCH (MODEL W/X/Y/K1/K2) VL1500 INTRUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720048E30
ref: 1

SWITCH ASSY,HANDLE,R

€ 157.50

2

0211205167
ref: 2

SCREW

€ 2.50

3

0940714407
ref: 3

CLAMP(L:145)

€ 4.00

4

3740010F30
ref: 4

SWITCH ASSY,HANDLE,L

€ 0.00

5

0211205167
ref: 5

SCREW

€ 2.50

6

0940714407
ref: 6

CLAMP(L:145)

€ 4.00
