SIDE COVER (MODEL K1)
VL1500 INTRUDER 2000 (Y) USA (E03)

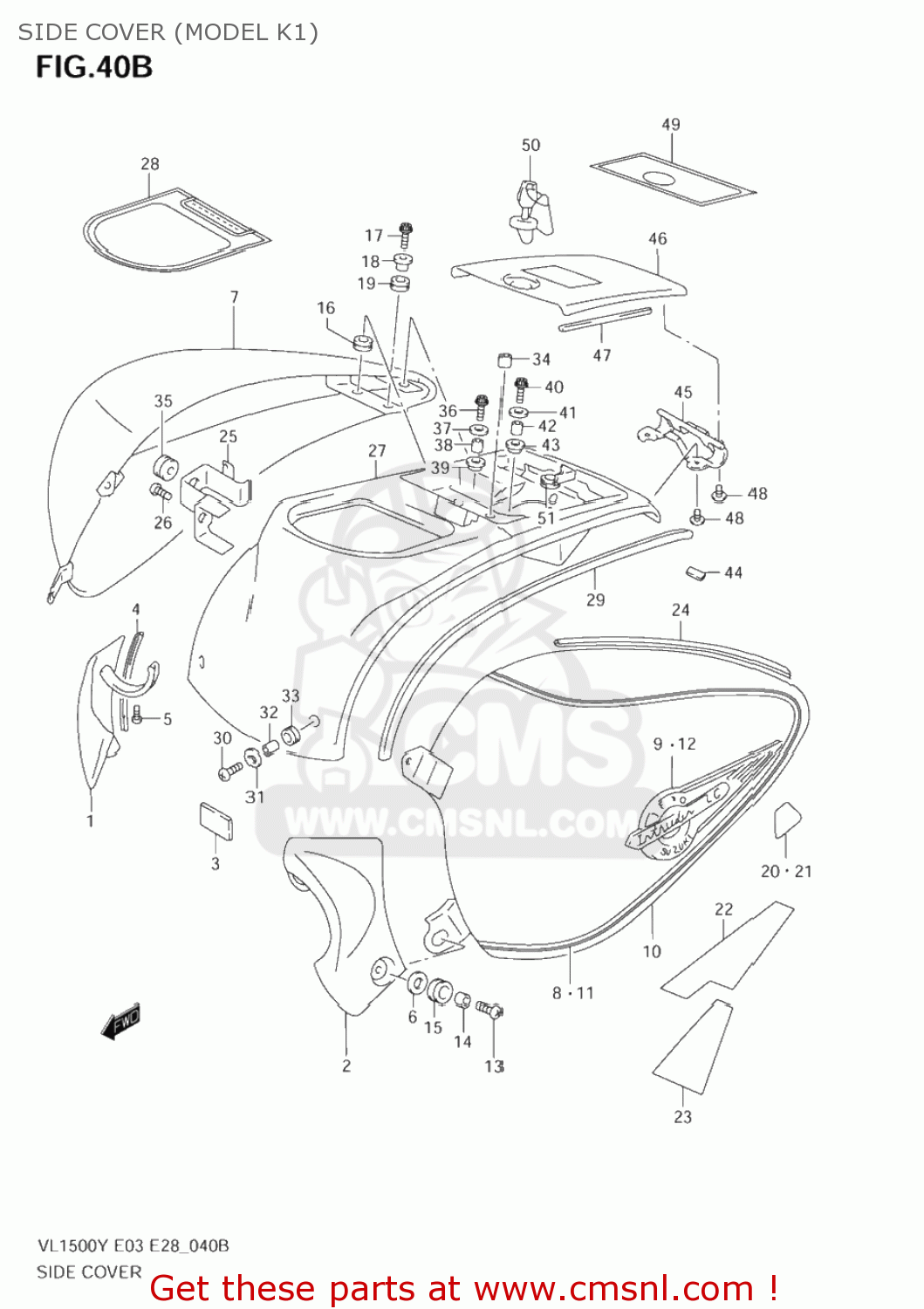

Side cover (model k1) diagram VL1500 INTRUDER 2000 (Y) USA (E03)
SIDE COVER (MODEL K1) VL1500 INTRUDER 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4751010F00
ref: 1
47510-10F01
COVER COMP,FRAME HEAD
€ 120.00
2
4752010F01
ref: 2
47520-10F02
COVER,FRAME HEAD,LEFT
€ 120.00
3
4782910F00
ref: 3
44612-13600
CUSHION,METER COVER RE
€ 3.00
4
4751410F00
ref: 4
MOLDING,FRAME HEAD COVER
€ 5.50
5
0913906028
ref: 5
SCREW(6X20)
€ 3.50
6
0832201063
ref: 6
08322-0106B
WASHER
€ 2.00
7-1
4780010F1033J
ref: 7-1
47800-10F20-33J
COVER ASSEMBLY,SIDE UPPER
€ 468.50
7-2
4780010F10FG1
ref: 7-2
47800-10F20-FG1
COVER VL1500/K
€ 517.50
7-3
4780010F10FG2
ref: 7-3
47800-10F20-FG2
COVER ASSY,SIDE UPR,R
€ 261.00
8-1
6813510F10BU8
ref: 8-1
68135-10F20-BU8
TAPE,COVER SIDE,UPPER
€ 75.50
8-2
6813510F10EZ7
ref: 8-2
68135-10F20-EZ7
TAPE,COVER SIDE UPR,R
€ 44.50
8-3
6813510F10EZ9
ref: 8-3
68135-10F20-EZ9
TAPE,COVER SIDE
€ 44.50
9
6811110F00
ref: 9
EMBLEM,TANK COVER,R
€ 61.00
10-1
4790010F1033J
ref: 10-1
47900-10F20-33J
COVER ASSEMBLY,SIDE UPPER
€ 486.50
10-2
4790010F10FG1
ref: 10-2
47900-10F20-FG1
COVER ASSY SID
€ 486.50
10-3
4790010F10FG2
ref: 10-3
47900-10F20-FG2
COVER ASSY,SIDE UPR,L
€ 261.00
11-1
6814510F10BU8
ref: 11-1
68145-10F20-BU8
TAPE,COVER SIDE,UPPER
€ 68.50
11-2
6814510F10EZ7
ref: 11-2
68145-10F20-EZ7
TAPE,COVER SIDE UPR,L
€ 44.50
11-3
6814510F10EZ9
ref: 11-3
68145-10F20-EZ9
TAPE,COVER SIDE UPR,L
€ 44.50
12
6812110F00
ref: 12
EMBLEM,TANK COVER,L
€ 61.00
13
0913906030
ref: 13
SCREW(6X16)
€ 3.50
14
0918006260
ref: 14
SPACER(6.5X9X7.2)
€ 3.50
15
0932008021
ref: 15
CUSHION
€ 4.00
16
4782210F00
ref: 16
CUSHION,SIDE UP METER & FRAME
€ 7.50
17
0712006203
ref: 17
07120-0620B
BOLT
€ 3.50
18
4782710F00
ref: 18
WASHER,SIDE UPR COVER
€ 5.00
19
4782610F00
ref: 19
CUSHION,SIDE UPR COVER
€ 7.50
20
4783810F00
ref: 20
TAPE,SIDE COVER UPR,R
€ 7.50
21
4784810F00
ref: 21
TAPE,SIDE COVER UPR,L
€ 7.50
22
4783510F00
ref: 22
CUSHION,SIDE UPR COVER,R
€ 45.00
23
4783610F00
ref: 23
CUSHION,SIDE UPR COVER,R
€ 18.50
24
4783710F00
ref: 24
47837-10FA0
MOLDING,SIDE UPPER COVER
€ 9.50
25
4785010F00
ref: 25
BRACKET,SIDE UPPER COVER
€ 9.00
26
0155006163
ref: 26
01550-0616A
BOLT
€ 2.50
27
4782110F00
ref: 27
COVER,METER & FUEL INLET
€ 693.00
28
6889710F10
ref: 28
EMBLEM,METER COVER
€ 36.50
29
4782410F00
ref: 29
MOLDING,METER COVER
€ 9.00
30
0913906030
ref: 30
SCREW(6X16)
€ 3.50
31
0916006036
ref: 31
WASHER(6.5X18X1.5)
€ 1.50
32
0918006256
ref: 32
SPACER(6.5X9X5.7)
€ 2.00
33
0932008051
ref: 33
09320-08066
CUSHION
€ 7.50
34
0932106013
ref: 34
CUSHION
€ 2.50
35
0932110007
ref: 35
CUSHION
€ 4.50
36
0712006253
ref: 36
07120-0625A
BOLT,OIL PAN
€ 2.50
37
0916006084
ref: 37
WASHER(6.5X18X1.6)
€ 2.00
38
0918006265
ref: 38
SPACER(6.5X9X11)
€ 4.50
39
4782510F00
ref: 39
CUSHION,METER COVER
€ 7.50
40
0712006163
ref: 40
07120-0616B
BOLT MAGNETO S
€ 2.50
41
0916006084
ref: 41
WASHER(6.5X18X1.6)
€ 2.00
42
0918006256
ref: 42
SPACER(6.5X9X5.7)
€ 2.00
43
0932008051
ref: 43
09320-08066
CUSHION
€ 7.50
44
4782910F00
ref: 44
44612-13600
CUSHION,METER COVER RE
€ 3.00
45
4738010F00
ref: 45
47380-10F01
HINGE COMP,FUEL LID
€ 16.00
46
4781110F00
ref: 46
LID,FUEL INLET
€ 174.00
47
4781210F00
ref: 47
CUSHION,FUEL LID
€ 4.50
48
0214206123
ref: 48
02142-0612A
SCREW 6X12
€ 2.00
49
6889810F10
ref: 49
EMBLEM,FUEL LID
€ 31.50
50
9570007860
ref: 50
LOCK SET,COVER
€ 76.00
51
4782810F00
ref: 51
CUSHION,RR,L
€ 15.00
