REAR CALIPER (MODEL W)
VL1500 INTRUDER 2000 (Y) USA (E03)

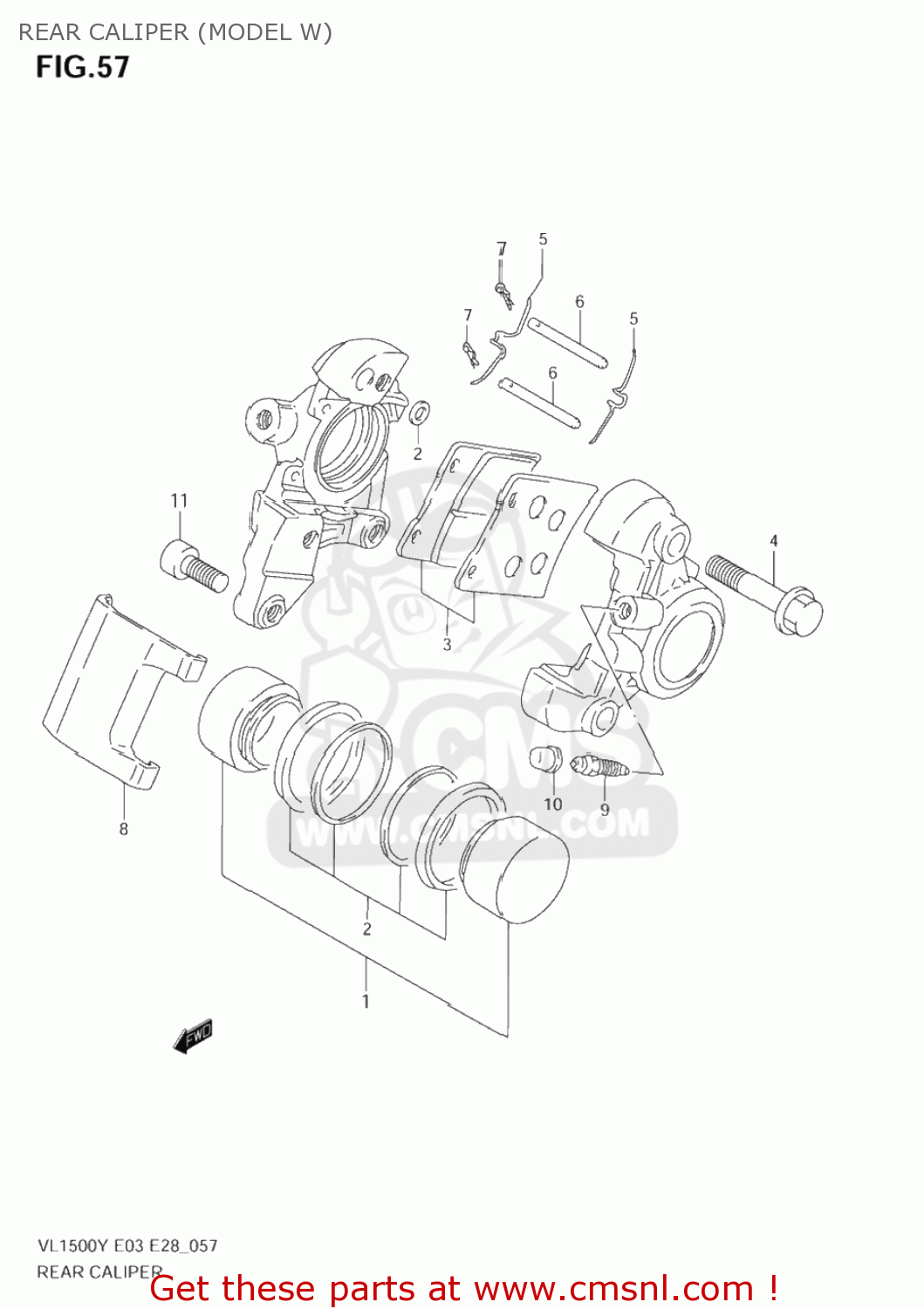

Rear caliper (model w) diagram VL1500 INTRUDER 2000 (Y) USA (E03)
REAR CALIPER (MODEL W) VL1500 INTRUDER 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
6910038B20
ref:
69100-38B50-999
CALIPER ASSEMBLY,REAR
€ 707.00
1
6910038810
ref: 1
69100-38851
PISTON SET
€ 176.00
2
6910038830
ref: 2
69100-38831
SEAL SET,PISTON
€ 38.50
3
6910038860
ref: 3
69100-38870
PAD SET (NAS)
€ 57.50
4
5914516700
ref: 4
BOLT,HOUSING
€ 8.00
5
5914316700
ref: 5
SPRING
€ 7.50
6
6914145000
ref: 6
PIN,PAD
€ 6.50
7
6914245000
ref: 7
CLIP,PAD PIN
€ 4.50
8
5915124A00
ref: 8
COVER
€ 18.00
9
5912118410
ref: 9
BLEEDER
€ 8.00
10
5515666310
ref: 10
CAP,BLEEDER PLUG
€ 6.00
11
0713010203
ref: 11
07130-1020B
BOLT
€ 3.50
