prices are in EUR

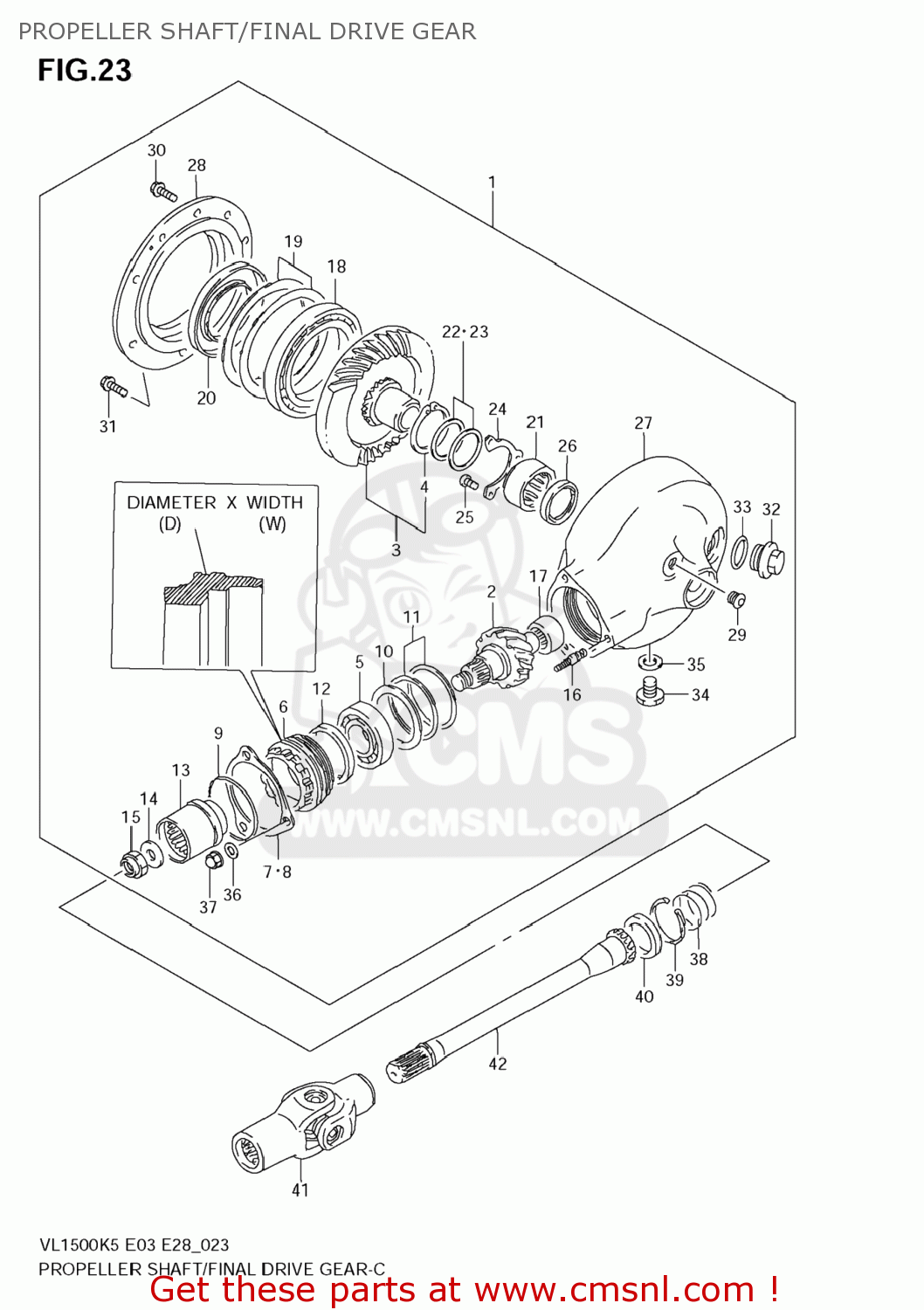

ref
part #
description
quantity
1-1
GEAR & CASE SET,FINAL BEVEL
1-2
GEAR & CASE SET, FINAL BEVEL
1-4
GEAR & CASE SET,FINAL BEVEL
2
GEAR,FINAL DRIVE BEVEL
3
GEAR,FINAL DRIVEN BEVEL
5
BEARING(28X68X18)
6
STOPPER,FINAL DRIVE BEARING
7
PLATE,BEARING STOPPER
8
PLATE,BEARING STOPPER
9
O RING(D:3.1,ID:63.9)
10
WASHER(54X68X1.5)
11
SHIM SET,FINAL DRIVE GEAR
11
SHIM SET,FINAL DRIVE GEAR
12
SEAL,OIL
13
COUPLING,FINAL DRIVE GEAR
14
WASHER(16X29X4)
15
NUT
16-1
BOLT
16-2
BOLT,STUD
17
BEARING(20X34X18)
18
BEARING(85X130X14)
19
SHIM SET,FINAL DRIVEN GEAR
20
SEAL,OIL(70X110X14.7)
21
BEARING(35X48X23.7)
22
WASHER(35X46X0.95)
23
SHIM SET,FINAL DRIVEN GEAR
23
SHIM SET,FINAL DRIVEN GEAR
24
RETAINER,FINAL DRIVEN GEAR BRG
25
SCREW
26
SEAL,OIL(35X43X5)
28
CASE,FINAL GEAR BEARING
29
PLUG,16X8
30
BOLT
31
BOLT
32
PLUG,30X9
33
O RING(D:3.1,ID:26.4)
34
PLUG(MAGNETO)
35
GASKET(13.8X18.8X4.8) (NAS)
36
WASHER
37
NUT
38
SPRING
39
CIRCLIP
40
SEAL,OIL(30X40.5X5.5)
41
YOKE COMP,UNIVERSAL JOINT
42
SHAFT,PROPELLER
