SEAT (VL1500K5/K6/K7/K8/K9)

VL1500T BOULEVARD C90 2006 (K6) USA (E03)

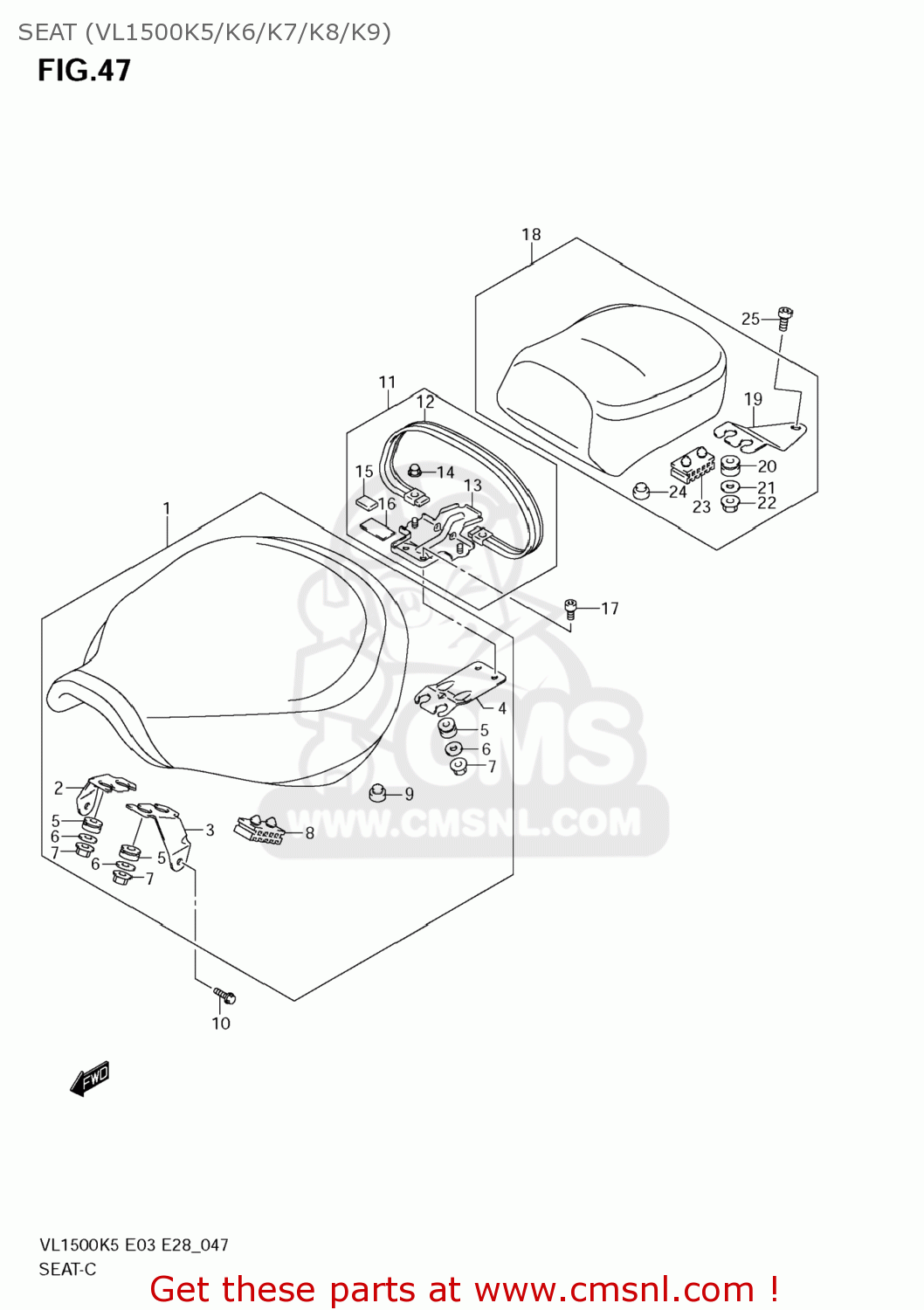

Seat (vl1500k5/k6/k7/k8/k9) diagram VL1500T BOULEVARD C90 2006 (K6) USA (E03)

SEAT (VL1500K5/K6/K7/K8/K9) VL1500T BOULEVARD C90 2006 (K6) USA (E03)

SEAT (VL1500K5/K6/K7/K8/K9) VL1500T BOULEVARD C90 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4510010FA0P8Z
ref: 1

SEAT ASSY

€ 280.50

2

4511510FA0
ref: 2

BRACKET,FR,R

€ 12.00

3

4511610FA0
ref: 3

BRACKET,FR,L

€ 12.00

4

4511710FA0
ref: 4

BRACKET,RR

€ 16.50

5

4521506B00
ref: 5

CUSHION

€ 4.50

6

0916006088
ref: 6

WASHER(6.5X20X1.6)

€ 2.00

7

083161006A
ref: 7

NUT

€ 2.50

8

4514942F00
ref: 8

CUSHION

€ 4.50

9

0932110011
ref: 9

CUSHION

€ 3.00

10-1

0910606114
ref: 10-1

BOLT(6X18)

€ 6.50

10-2

0910608177
ref: 10-2

BOLT(8X20)

€ 3.50

11

4518010FA148H
ref: 11

BAND ASSY,SEAT

€ 77.50

12

4518110FA1
ref: 12

BAND,SEAT

€ 30.50

13

4518510FA0
ref: 13

BRACKET,SEAT BAND

€ 60.50

14

083132006B
ref: 14

NUT

€ 2.00

15

6154494500
ref: 15

PAD

€ 2.00

16

4488538A00
ref: 16

CUSHION

€ 3.00

17

0910606064
ref: 17

BOLT(6X18)

€ 6.00

18

4530010FA1P8Z
ref: 18

SEAT ASSY,PILLION

€ 334.50

19

4531610FA0
ref: 19

BRACKET,RR

€ 14.50

20

4521506B00
ref: 20

CUSHION

€ 4.50

21

0916006088
ref: 21

WASHER(6.5X20X1.6)

€ 2.00

22

083161006B
ref: 22

NUT

€ 2.50

23

4514942F00
ref: 23

CUSHION

€ 4.50

24

0932110011
ref: 24

CUSHION

€ 3.00

25

0910608169
ref: 25

BOLT(8X16)

€ 9.00
