STARTING MOTOR

VL1500T BOULEVARD C90 2006 (K6) USA (E03)

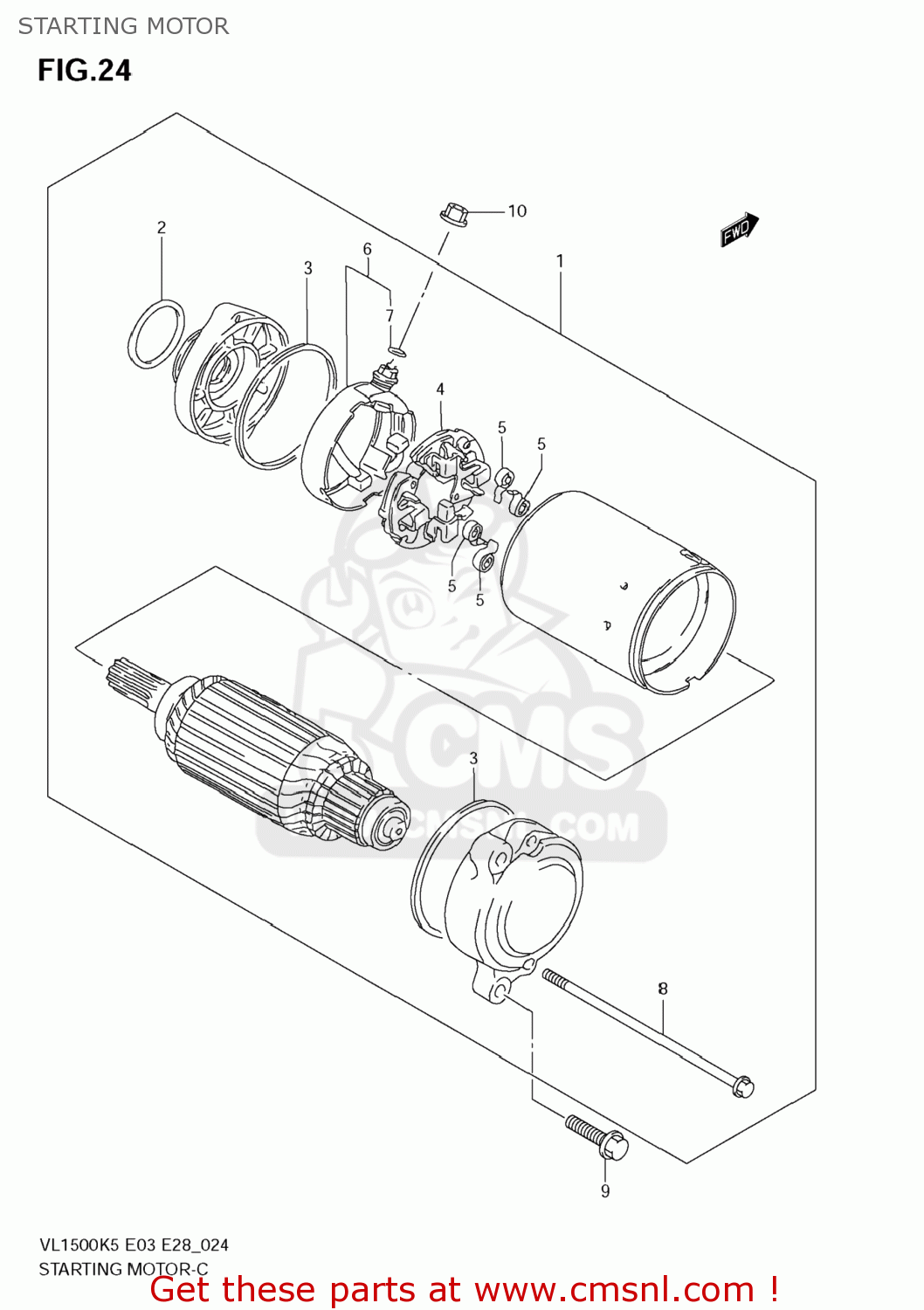

Starting motor diagram VL1500T BOULEVARD C90 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

3110010F00
ref: 1
31100-38B02

MOTOR ASSY,STARTING

€ 973.50

0928035005A
ref: 2

O-RING (D:2.1 ID:34.7)

€ 9.50

3126431300
ref: 3
31264-32E00

O RING

€ 7.50

3113238B00
ref: 4

HOLDER SET,BRUSH

€ 45.00

3113538B00
ref: 5

SPRING,BRUSH

€ 3.50

3113038B00
ref: 6

TERMINAL SET,BRUSH

€ 45.00

3114349040
ref: 7

O RING

€ 3.00

3128124B10
ref: 8

BOLT

€ 5.00

0910306212
ref: 9

BOLT(6X25)

€ 2.50

083613506A
ref: 10

NUT

€ 2.00
