SIDE COVER (MODEL K5)

VL1500T BOULEVARD C90 2006 (K6) USA (E03)

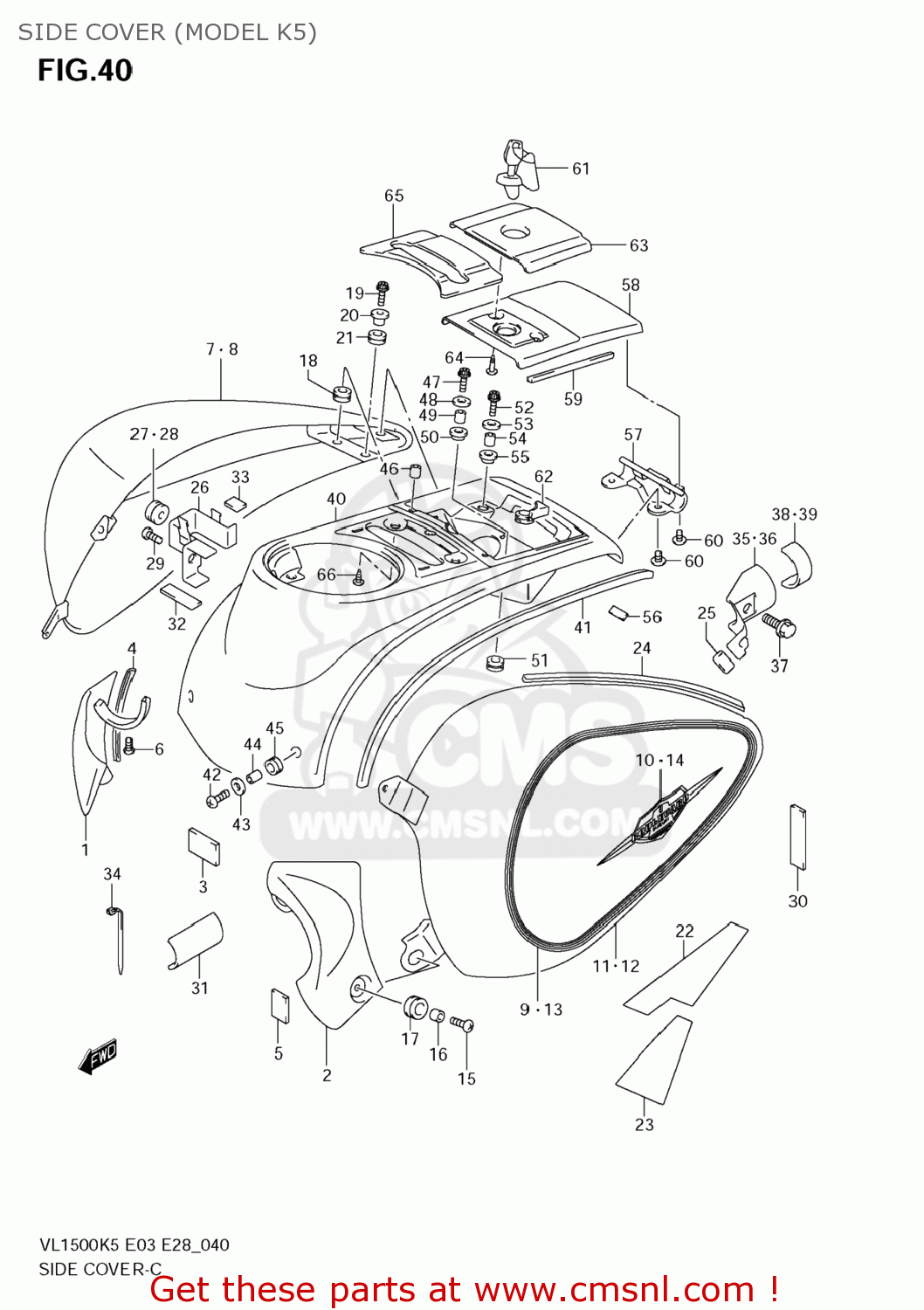

Side cover (model k5) diagram VL1500T BOULEVARD C90 2006 (K6) USA (E03)

SIDE COVER (MODEL K5) VL1500T BOULEVARD C90 2006 (K6) USA (E03)
SIDE COVER (MODEL K5) VL1500T BOULEVARD C90 2006 (K6) USA (E03)
SIDE COVER (MODEL K5) VL1500T BOULEVARD C90 2006 (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4751010F01
ref: 1
COVER,FRAME HEAD,R
4751010F01
€ 120.00
2
4752010F02
ref: 2
COVER,FRAME HEAD,L
4752010F02
€ 120.00
3
4782910F00
ref: 3
44612-13600
CUSHION,METER COVER RE
€ 3.00
4
4751410F00
ref: 4
MOLDING,FRAME HEAD COVER
4751410F00
€ 5.50
5
4716110D00
ref: 5
PROTECTOR,FRAME COVER
4716110D00
€ 3.50
6
0913906028
ref: 6
SCREW(6X20)
0913906028
€ 3.50
7
4780010F50YAY
ref: 7
COVER ASSY,SIDE UPR,R
4780010F50YAY
€ 406.50
8-1
4780010F60NY3
ref: 8-1
COVER ASSY,SIDE UPR,R
€ 651.50
8-2
4780010F60AVU
ref: 8-2
COVER ASSY,SIDE UPR,R
€ 651.50
9-1
6813510FA0BFB
ref: 9-1
TAPE,SIDE COVER UPR,R
€ 145.00
9-2
6813510FA0BFC
ref: 9-2
TAPE,SIDE COVER UPR,R
€ 145.00
10
6811110FA0
ref: 10
68111-10FA1
EMBLEM,SIDE CO
6811110FA0
€ 61.00
11
4790010F50YAY
ref: 11
COVER ASSY,SIDE UPR,L
€ 528.50
12-1
4790010F60NY3
ref: 12-1
COVER ASSY,SIDE UPR,L
€ 547.00
12-2
4790010F60AVU
ref: 12-2
COVER ASSY,SIDE UPR,L
€ 651.50
13-1
6814510FA0BFB
ref: 13-1
TAPE,SIDE COVER UPR,L
€ 145.00
13-2
6814510FA0BFC
ref: 13-2
TAPE,SIDE COVER UPR,L
€ 145.00
14
6812110FA0
ref: 14
68121-10FA1
EMBLEM,SIDE CO
6812110FA0
€ 61.00
15
0913906030
ref: 15
SCREW(6X16)
0913906030
€ 3.50
16
0918006260
ref: 16
SPACER(6.5X9X7.2)
0918006260
€ 3.50
17
0932008021
ref: 17
CUSHION
0932008021
€ 4.00
18
4782210F00
ref: 18
CUSHION,SIDE UP METER & FRAME
4782210F00
€ 7.50
19
0712006203
ref: 19
07120-0620B
BOLT
0712006203
€ 3.50
20
4782710F00
ref: 20
WASHER,SIDE UPR COVER
4782710F00
€ 5.00
21
4782610F00
ref: 21
CUSHION,SIDE UPR COVER
4782610F00
€ 7.50
22
4783510FA0
ref: 22
SHIELD,SIDE UPR COVER,R
€ 43.50
23
4783610FA0
ref: 23
SHIELD,SIDE UPR COVER,L
€ 43.50
24
4783710FA0
ref: 24
MOLDING,SIDE UPR COVER UNDER
4783710FA0
€ 9.50
25
4716610FA0
ref: 25
CUSHION,BRACKET
€ 4.00
26
4785010FA0
ref: 26
BRACKET,SIDE UPR COVER
€ 9.00
27
0932110034
ref: 27
CUSHION
0932110034
€ 6.50
28
0932110012
ref: 28
CUSHION
0932110012
€ 3.00
29
0155006163
ref: 29
01550-0616A
BOLT
0155006163
€ 2.50
30
4716410FA0
ref: 30
TAPE,HEAT SHIELD
€ 6.00
31
4716510FA0
ref: 31
CUSHION,SIDE COVER FR
€ 10.00
32
3181229F00
ref: 32
PROTECTOR,STARTING MOTOR LEAD
3181229F00
€ 3.50
33
1776509F00
ref: 33
PROTECTOR,CTR
1776509F00
€ 2.50
34
0940718402
ref: 34
CLAMP(L:165)
0940718402
€ 2.50
35
4783910FA0
ref: 35
BRACKET,SIDE UPR COVER,R
€ 8.00
36
4784910FA0
ref: 36
BRACKET,SIDE UPR COVER,L
€ 10.50
37
0155006163
ref: 37
01550-0616A
BOLT
0155006163
€ 2.50
38
4716110FA0
ref: 38
CUSHION,BRACKET NO.1
€ 5.00
39
4716210FA0
ref: 39
CUSHION,BRACKET NO.2
€ 5.00
40
4782110FA0
ref: 40
COVER,METER & FUEL INLET
€ 633.00
41
4782410FB0
ref: 41
MOLDING,METER COVER
4782410FB0
€ 11.50
42
0913906030
ref: 42
SCREW(6X16)
0913906030
€ 3.50
43
0916006036
ref: 43
WASHER(6.5X18X1.5)
0916006036
€ 1.50
44
0918006256
ref: 44
SPACER(6.5X9X5.7)
0918006256
€ 2.00
45
0932008051
ref: 45
09320-08066
CUSHION
0932008051
€ 7.50
46
0932106013
ref: 46
CUSHION
0932106013
€ 2.50
47
0712006253
ref: 47
07120-0625A
BOLT,OIL PAN
0712006253
€ 2.50
48
0916006084
ref: 48
WASHER(6.5X18X1.6)
0916006084
€ 2.00
49
0918006265
ref: 49
SPACER(6.5X9X11)
0918006265
€ 4.50
50
4782510F00
ref: 50
CUSHION,METER COVER
4782510F00
€ 7.50
51
4782210F00
ref: 51
CUSHION,SIDE UP METER & FRAME
4782210F00
€ 7.50
52
0712006163
ref: 52
07120-0616B
BOLT MAGNETO S
0712006163
€ 2.50
53
0916006084
ref: 53
WASHER(6.5X18X1.6)
0916006084
€ 2.00
54
0918006256
ref: 54
SPACER(6.5X9X5.7)
0918006256
€ 2.00
55
0932008051
ref: 55
09320-08066
CUSHION
0932008051
€ 7.50
56
4782910F00
ref: 56
44612-13600
CUSHION,METER COVER RE
€ 3.00
57
4738010F00
ref: 57
47380-10F01
HINGE COMP,FUEL LID
€ 16.00
58
4781110FA0
ref: 58
LID,FUEL INLET
4781110FA0
€ 180.00
59
4781210F00
ref: 59
CUSHION,FUEL LID
4781210F00
€ 4.50
60
0214206123
ref: 60
02142-0612A
SCREW 6X12
0214206123
€ 2.00
61
9570007860
ref: 61
LOCK SET,COVER
9570007860
€ 76.00
62
4782810F00
ref: 62
CUSHION,RR,L
4782810F00
€ 15.00
63
4781210FA0
ref: 63
COVER,FUEL LID
4781210FA0
€ 17.00
64
0354105123
ref: 64
03541-0512A
SCREW
0354105123
€ 2.00
65
4782210FA0
ref: 65
COVER,METER SWITCH
€ 10.50
66
0354105123
ref: 66
03541-0512A
SCREW
0354105123
€ 2.00
