CYLINDER

VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

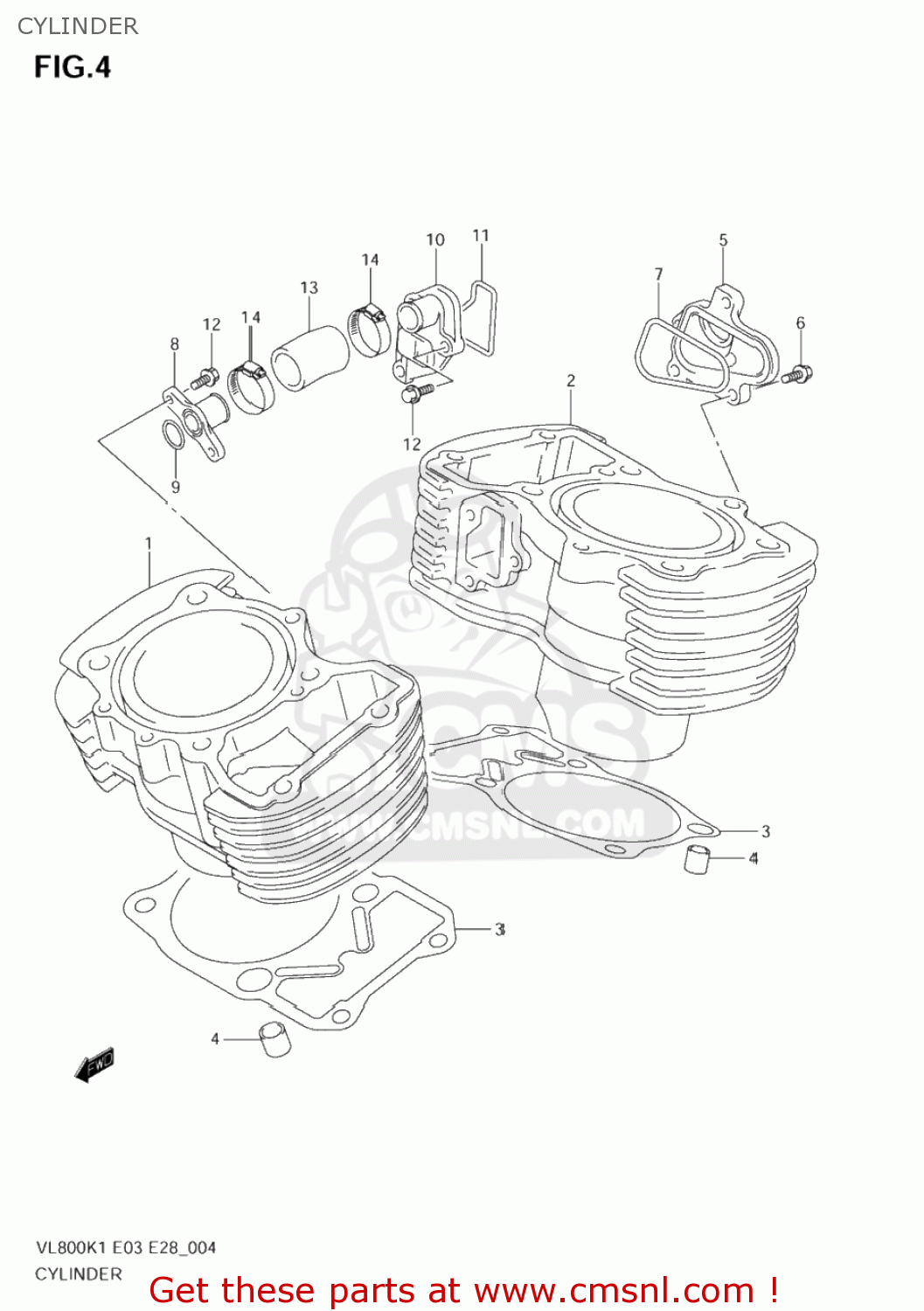

Cylinder diagram VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

CYLINDER VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

CYLINDER VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

1121041F000F0
ref: 1

CYLINDER,FR

€ 669.00

2

1122041F000F0
ref: 2

CYLINDER,RR

€ 669.00

3

1124141F00
ref: 3

GASKET,CYLINDER (NAS)

€ 8.50

4

0421113189
ref: 4

PIN

€ 2.50

5-1

1123739A20
ref: 5-1
11237-41F00

CHAMBER,WATER,INLET

€ 28.00

5-2

1123741F00
ref: 5-2

CONNECTOR,CYLINDER INLET PIPE

€ 28.00

6

0154706203
ref: 6
01547-0620B

SCREW

€ 2.50

7

1124738A00
ref: 7

O RING,INLET WATER CHAMBER

€ 3.00

8-1

1123545C10
ref: 8-1
11235-41F00

UNION,WATER INLET

€ 16.00

8-2

1123541F00
ref: 8-2

UNION,CYL INLET

€ 16.00

9

0928016005
ref: 9

O RING(D:2.4,ID:15.8)

€ 1.50

10

1789241F00
ref: 10

UNION,CYL OUTLET

€ 20.00

11

1789941F00
ref: 11

O RING,CYL OUTLET UNION

€ 4.50

12

0154706163
ref: 12
01547-0616B

BOLT

€ 2.50

13

1785101A00
ref: 13

HOSE,RADIATOR INLET

€ 17.50

14

0940228511
ref: 14

CLAMP

€ 8.50
