OIL PUMP (MODEL K5)

VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

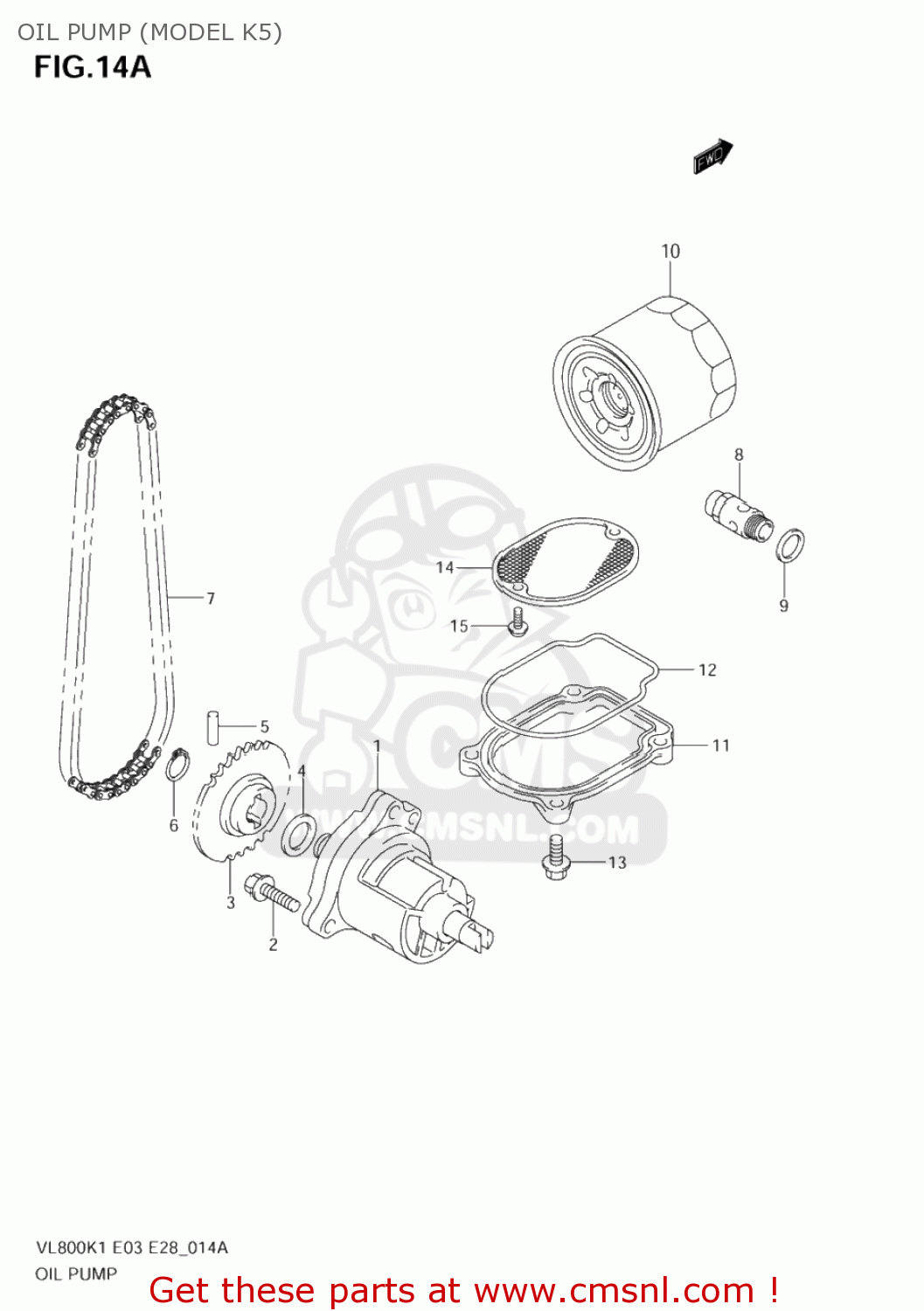

Oil pump (model k5) diagram VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

OIL PUMP (MODEL K5) VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)
OIL PUMP (MODEL K5) VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)
OIL PUMP (MODEL K5) VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
1640038A01
ref: 1
PUMP ASSY,ENGINE OIL
1640038A01
€ 148.00
2
0155006253
ref: 2
01550-0625A
BOLT
0155006253
€ 2.50
3
1633138A10
ref: 3
SPROCKET,OIL PUMP DRIVEN
1633138A10
€ 29.00
4
0918112158
ref: 4
SHIM(12X20X0.5)
0918112158
€ 2.00
5
0926105006
ref: 5
PIN(5X18)
0926105006
€ 1.50
6
0833131126
ref: 6
08331-3112A
CIRCLIP,12 MM
0833131126
€ 2.00
7
1631038A00
ref: 7
CHAIN,OIL PUMP DRIVE
1631038A00
€ 19.50
8
1644017C20
ref: 8
VALVE ASSY,OIL RELIEF
1644017C20
€ 39.00
9
0916816002
ref: 9
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
10-1
1651003G00X07
ref: 10-1
16510-07J00
FILTER ASSY,EN
1651003G00X07
€ 12.50
10-2
1651022H00
ref: 10-2
FILTER ASSY,EN
1651022H00
€ 33.50
11
1652338A00
ref: 11
CAP,OIL STRAINER
1652338A00
€ 19.50
12
1652838A00
ref: 12
O RING,OIL STRAINER CAP
1652838A00
€ 8.00
13
0155006203
ref: 13
01550-0620A
BOLT
0155006203
€ 2.50
14
1652038A00
ref: 14
STRAINER,ENGINE OIL
1652038A00
€ 7.50
15
0211275123
ref: 15
02112-7512A
SCREW
€ 2.50
