HEADLAMP ASSY (MODEL K1/K2/K3/K4)

VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

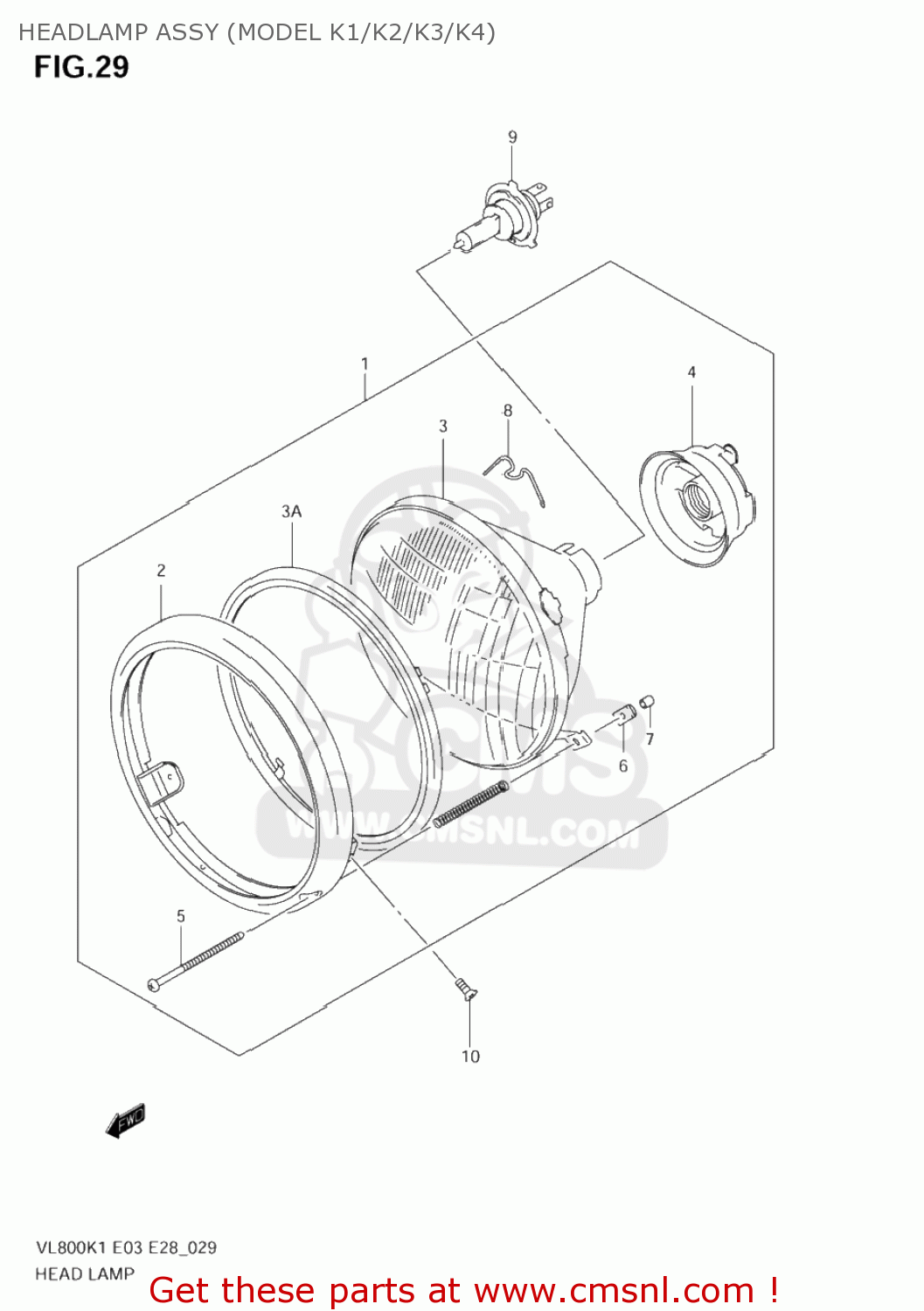

Headlamp assy (model k1/k2/k3/k4) diagram VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

3510010F30999
ref: 1

HEADLAMP ASSY

€ 265.00

3511110F20
ref: 2

RIM ASSY

€ 114.50

3512110F30
ref: 3

LAMP UNIT

€ 233.00

3512710F00
ref: 3A

RETAINING RING ASSY

€ 25.00

3517320A01
ref: 4

COVER,SOCKET

€ 14.50

3515145900
ref: 5

SCREW

€ 4.00

3515215611
ref: 6

NUT

€ 3.50

3515843400
ref: 7

CAP,SCREW

€ 2.00

3512810F00
ref: 8

SPRING

€ 4.50

0947112060
ref: 9

BULB(12V60/55W,H4)

€ 8.00

0912605003
ref: 10

SCREW(5X12)

€ 2.50
