FRONT WHEEL

VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

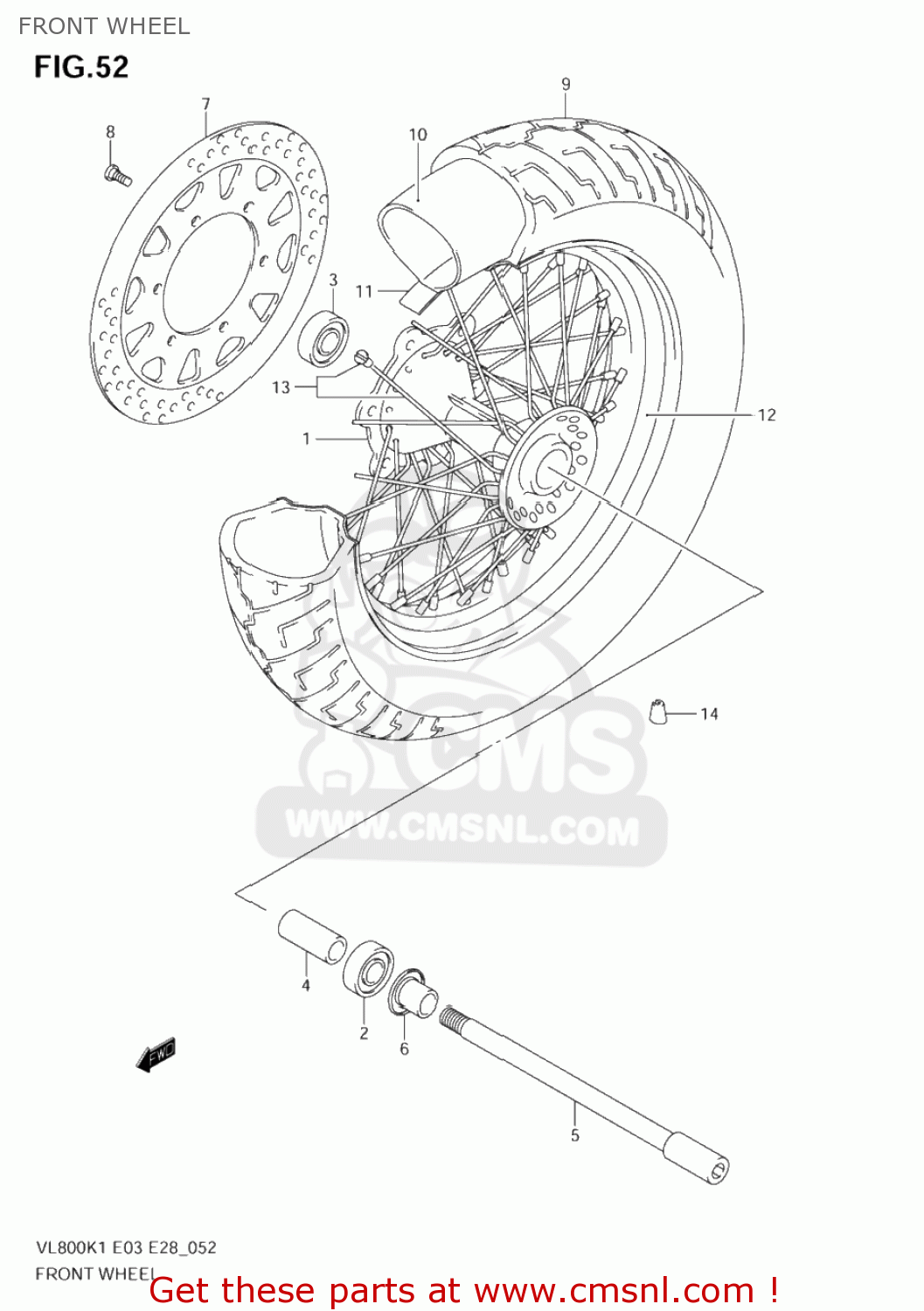

Front wheel diagram VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

FRONT WHEEL VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

FRONT WHEEL VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

5411141F00
ref: 1

HUB,FR

€ 265.50

2

0813362037
ref: 2

BEARING

€ 24.50

3

0814362037
ref: 3

BEARING

€ 18.50

4

0918017080
ref: 4

SPACER(17.5X25X102)

€ 16.50

5

5471141F00
ref: 5

AXLE,FR

€ 82.00

6

5474032C00
ref: 6

SPACER,FR AXLE,R

€ 12.00

7

5921141F00
ref: 7

DISC,FR BRAKE

€ 152.00

8

5942103A20
ref: 8

BOLT,DISK

€ 4.00

9-1

5510041F00
ref: 9-1

TIRE(130/90 16 67H)

€ 121.00

9-2

5510041F10
ref: 9-2

TIRE,FRONT,130/90-16M/C 67H

€ 114.00

9-2

5510041F10
ref: 9-2

TIRE,FRONT,130/90-16M/C 67H

€ 114.00

10

5520041F00
ref: 10

TUBE ASSY,WHEEL INNER

€ 35.00

11

5526141F00
ref: 11

PROTECTOR,WHL INR TUBE

€ 4.00

12

5531141F00
ref: 12
55311-41F01

RIM,FRONT WHEE

€ 226.00

13

5532041F00
ref: 13

SPOKE SET,FR WHEEL

€ 94.00

14-1

5541238A00
ref: 14-1
55412-41F00

BALANCER,WHEEL

€ 6.50

14-2

5541338A00
ref: 14-2
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00

14-3

5541241F00
ref: 14-3

BALANCER,WHEEL(20G)

€ 6.50

14-4

5541341F00
ref: 14-4

BALANCER,WHEEL(30G)

€ 8.00
