GASKET SET

VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

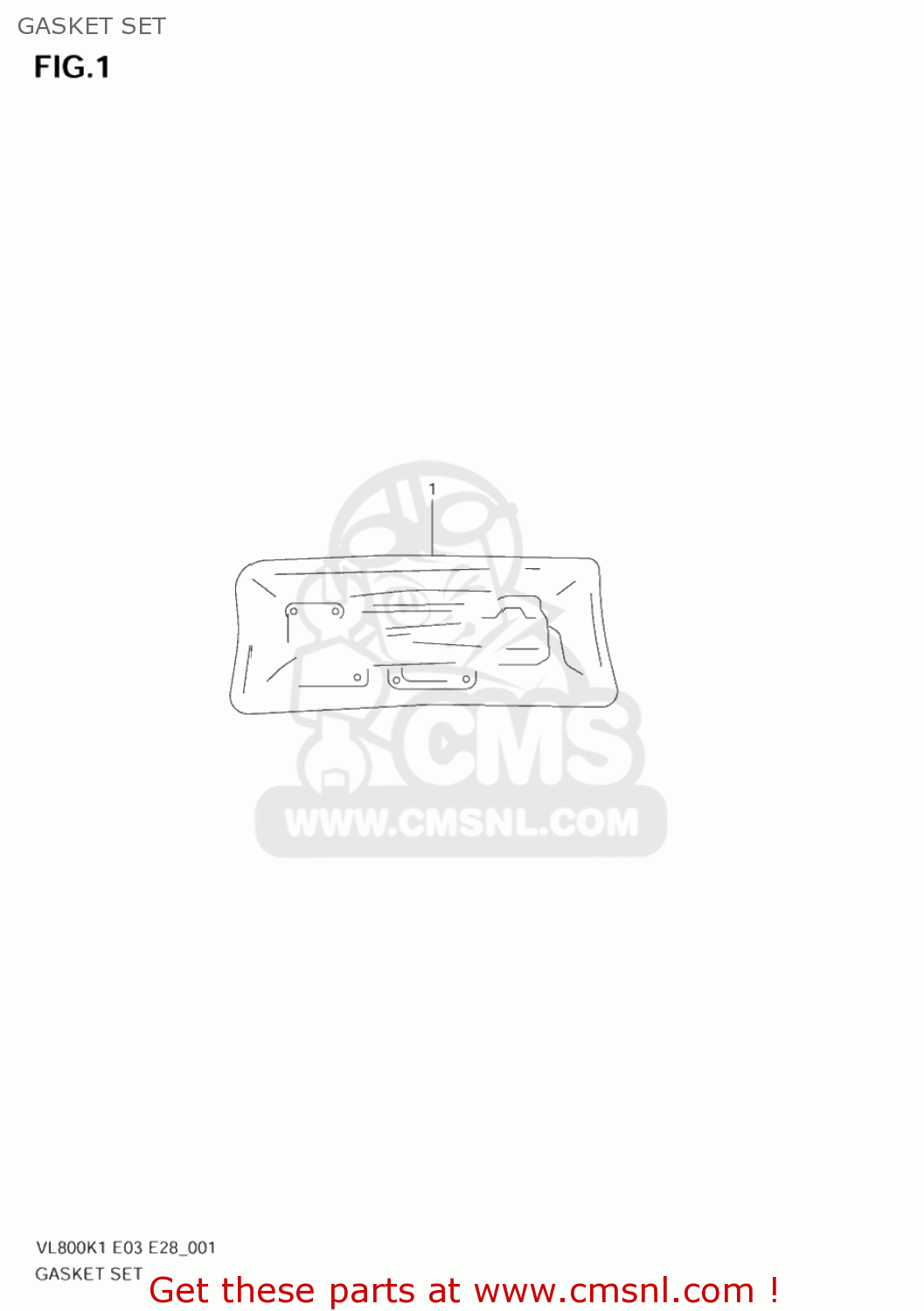

Gasket set diagram VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

GASKET SET VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

GASKET SET VL800 BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

1140241811
ref: 1-1
11402-41813

GASKET SET

€ 142.50

1-1

1140241811
ref: 1-1
11402-41813

GASKET SET

€ 142.50

1-2

1140241812
ref: 1-2
11402-41813

GASKET SET (NAS)

€ 142.50

1-2

1140241812
ref: 1-2
11402-41813

GASKET SET (NAS)

€ 142.50

2

1112338A00
ref: 2

GASKET,CYLINDER HEAD WATER (NAS)

€ 2.50

3

1114141F00
ref: 3

GASKET,CYLINDER HEAD FR (NAS)

€ 27.50

4

1114241F00
ref: 4

GASKET,CYLINDER HEAD RR (NAS)

€ 27.50

5

1117738A00
ref: 5

GASKET,INSPECTION CAP (NAS)

€ 5.00

6-1

1118741F00
ref: 6-1
11187-41F10

GASKET,BREATHE (NAS)

€ 6.00

6-1

1118741F00
ref: 6-1
11187-41F10

GASKET,BREATHE (NAS)

€ 6.00

6-2

1118741F10
ref: 6-2

GASKET,BREATHER COVER (NAS)

€ 6.00

6-2

1118741F10
ref: 6-2

GASKET,BREATHER COVER (NAS)

€ 6.00

7

1124141F00
ref: 7

GASKET,CYLINDER (NAS)

€ 8.50

8

1148241F00
ref: 8

GASKET,CLUTCH COVER (NAS)

€ 15.50

9

1148341F00
ref: 9

GASKET,GENERATOR COVER (NAS)

€ 11.50

10

1418110F00
ref: 10

GASKET,EXHAUST PIPE (NAS)

€ 11.50

11

1652838A00
ref: 11

O RING,OIL STRAINER CAP

€ 8.00

12

0916806023
ref: 12

GASKET(5.8X13X1.2) (NAS)

€ 2.00

13

0916808029
ref: 13

GASKET(8.2X16X1) (NAS)

€ 2.50

14

0916810002
ref: 14

GASKET(10X14X3.6) (NAS)

€ 2.00

15

0916814002
ref: 15
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

16

0916816002
ref: 16

GASKET(16X22X2) (NAS)

€ 2.00

17

0928004004
ref: 17

O RING(D:1.2,ID:4)

€ 2.00
