CLUTCH

VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

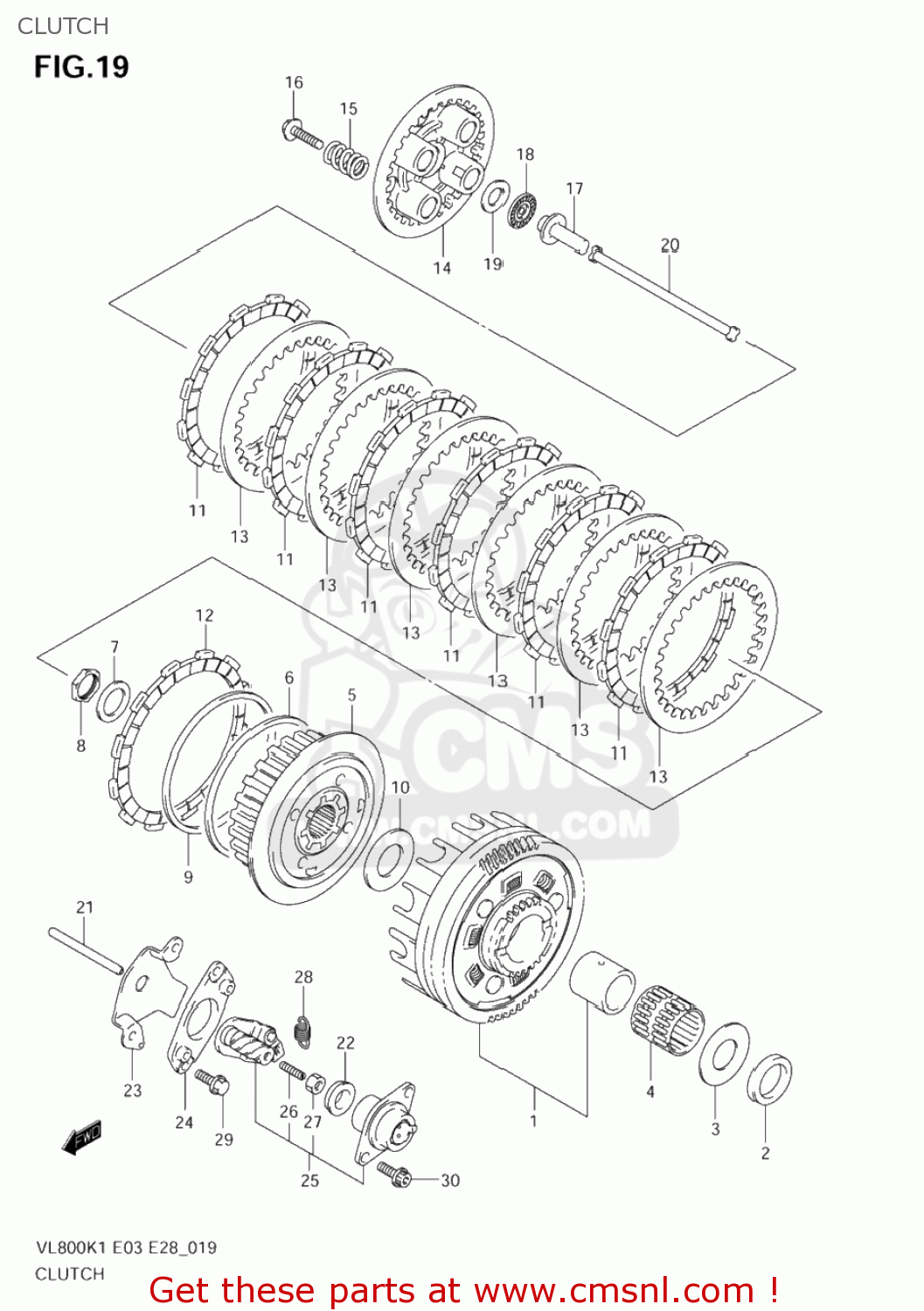

Clutch diagram VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

CLUTCH VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

CLUTCH VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

2120038840
ref: 1

GEAR ASSY,PRIMARY(NT:71)

€ 321.00

2

0918025077
ref: 2

SPACER(25X38X6.5)

€ 7.50

3

0916025055
ref: 3

WASHER(25X50X2.5)

€ 9.50

4

0926335017
ref: 4

BEARING(35X40X35.8)

€ 36.50

5

2141041F00
ref: 5

HUB,CLUTCH SLEEVE

€ 95.50

6

2147137400
ref: 6

SEAT,WAVE WASHER(T:1.4)

€ 8.00

7

0916422007
ref: 7

WASHER

€ 5.00

8

0914022008
ref: 8

NUT

€ 4.50

9

0916400004
ref: 9

WASHER

€ 9.00

10

0916025055
ref: 10

WASHER(25X50X2.5)

€ 9.50

11

2144137400
ref: 11

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

12

2144237401
ref: 12

PLATE,CLUTCH DRIVE(T:3.5) (NAS)

€ 11.50

13

2145114A00
ref: 13

PLATE,CLUTCH DRIVEN(T:1.6) (NAS)

€ 6.50

14

2146227A00
ref: 14

DISC,CLUTCH PRESSURE

€ 37.00

15

2141341F00
ref: 15

SPRING,CLUTCH

€ 5.50

16

0911606185
ref: 16

BOLT(6X30)

€ 2.50

17

2312131E00
ref: 17

PIECE,CLUTCH PUSH

€ 18.50

18

0926315003
ref: 18

BEARING(15X28X2)

€ 7.00

19

0916015045
ref: 19

WASHER(15.5X28X1)

€ 4.00

20

2311027A00
ref: 20

ROD,CLUTCH

€ 17.00

21

2311145C00
ref: 21

ROD,CLUTCH PUSH,L

€ 11.00

22

0928506017
ref: 22

SEAL,OIL(6X34X11)

€ 11.00

23

2311745C00
ref: 23

RETAINER,CL PUSH ROD OIL SEAL

€ 4.50

24

2313045C00
ref: 24

PLATE,CLUTCH RELEASE SCREW

€ 16.50

25

2320041F00
ref: 25

SCREW ASSY,CLUTCH RELEASE

€ 62.00

26

0913406010
ref: 26

SCREW(6X25)

€ 3.00

27

0831000067
ref: 27

NUT

€ 2.50

28

0944309050
ref: 28

SPRING

€ 3.00

29

0712006203
ref: 29
07120-0620B

BOLT

€ 3.50

30

0712006163
ref: 30
07120-0616B

BOLT MAGNETO S

€ 2.50
