CRANKCASE

VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

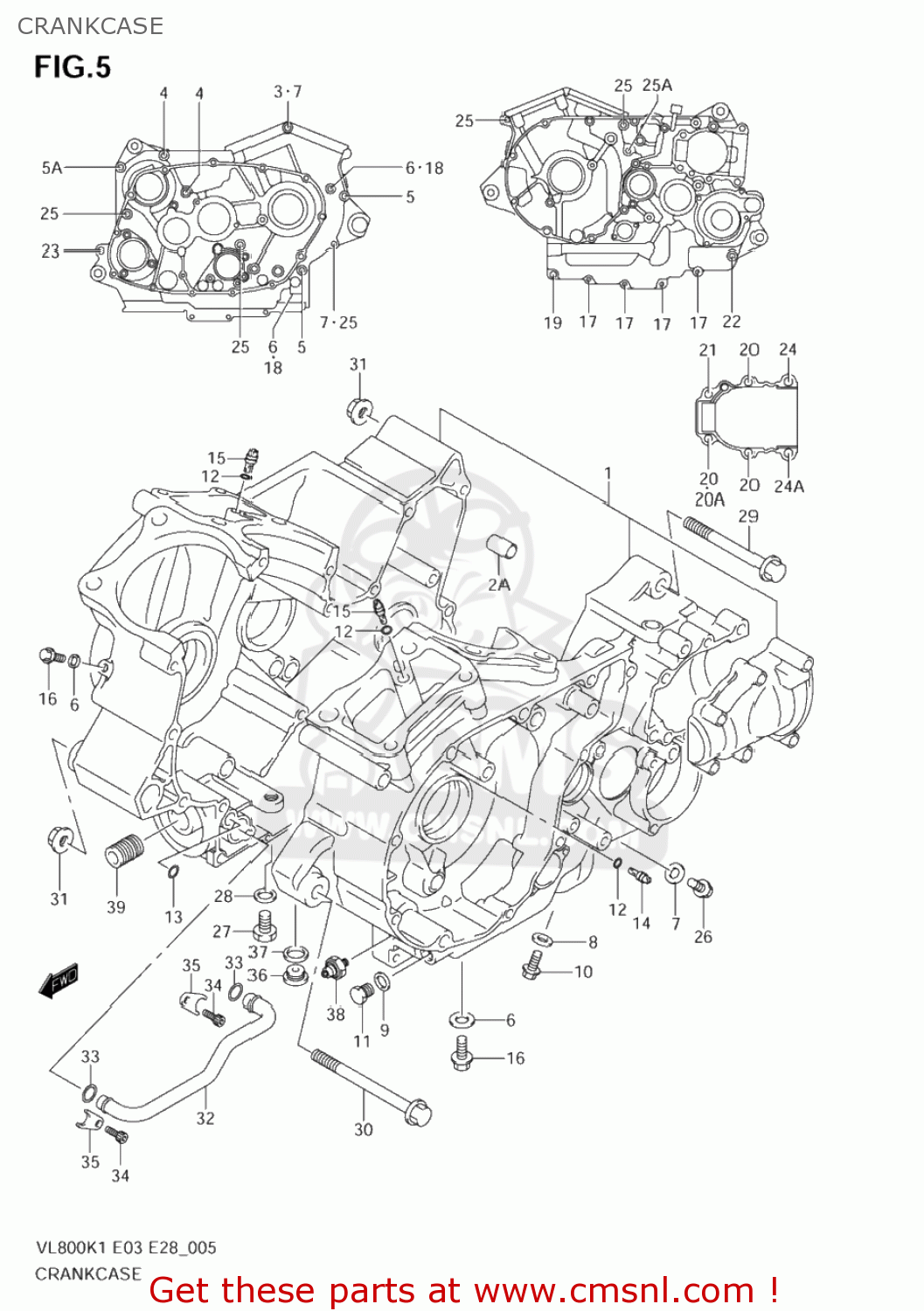

Crankcase diagram VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

CRANKCASE VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)
CRANKCASE VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)
CRANKCASE VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1-1
1130141811
ref: 1-1
11301-41813
CRANKCASE SET
€ 1,574.50
1-1
1130141811
ref: 1-1
11301-41813
CRANKCASE SET
€ 1,574.50
1-2
1130141820
ref: 1-2
CRANKCASE SET
€ 1,205.50
1-3
1130141812
ref: 1-3
11301-41813
CRANKCASE SET
€ 1,574.50
2A
0920611007
ref: 2A
PIN(8.4X11X20)
0920611007
€ 1.50
2-1
0916048001
ref: 2-1
WASHER(48.1X64X1.94)
0916048001
€ 18.50
2-10
0916048010
ref: 2-10
WASHER(48.1X64X2.16)
0916048010
€ 17.00
2-2
0916048002
ref: 2-2
WASHER(48.1X64X1.96)
0916048002
€ 17.00
2-3
0916048003
ref: 2-3
WASHER(48.1X64X1.99)
0916048003
€ 17.00
2-4
0916048004
ref: 2-4
WASHER(48.1X64X2.01)
0916048004
€ 17.00
2-5
0916048005
ref: 2-5
WASHER(48.1X64X2.04)
0916048005
€ 17.00
2-6
0916048006
ref: 2-6
WASHER(48.1X64X2.06)
0916048006
€ 17.00
2-7
0916048007
ref: 2-7
WASHER(48.1X64X2.09)
0916048007
€ 17.00
2-8
0916048008
ref: 2-8
WASHER(48.1X64X2.11)
0916048008
€ 17.00
2-9
0916048009
ref: 2-9
WASHER(48.1X64X2.14)
0916048009
€ 17.00
3-1
0910308110
ref: 3-1
BOLT(8X160)
0910308110
€ 10.00
3-2
0910308405
ref: 3-2
BOLT(8X160)
0910308405
€ 6.50
4-1
0910308131
ref: 4-1
BOLT(8X120)
0910308131
€ 3.00
4-2
0910308406
ref: 4-2
BOLT(8X120)
€ 2.50
5A
0910308164
ref: 5A
BOLT(8X95)
0910308164
€ 3.50
5-1
0910308133
ref: 5-1
BOLT(8X105)
0910308133
€ 4.50
5-2
0910308179
ref: 5-2
BOLT(8X105)
0910308179
€ 4.00
6
0916806023
ref: 6
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
7
0916808029
ref: 7
GASKET(8.2X16X1) (NAS)
0916808029
€ 2.50
8
0916810002
ref: 8
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
9
0916814002
ref: 9
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
10
0924710008
ref: 10
PLUG(10X12)
0924710008
€ 3.00
11
0924714026
ref: 11
PLUG(14X12)
0924714026
€ 3.50
12
0928004004
ref: 12
O RING(D:1.2,ID:4)
0928004004
€ 2.00
13
0928012009
ref: 13
O RING(D:1.9,ID:12.6)
0928012009
€ 2.50
14
0949320014
ref: 14
JET,OIL GALLERY
0949320014
€ 8.00
15
0949328010
ref: 15
JET,AIR(14)
0949328010
€ 10.50
16
0155006103
ref: 16
01550-0610A
BOLT
0155006103
€ 2.50
17
0155006403
ref: 17
01550-0640A
BOLT
0155006403
€ 2.00
18-1
0155008123
ref: 18-1
01550-0812A
BOLT
0155008123
€ 3.50
18-2
0910308407
ref: 18-2
BOLT(8X12)
€ 2.00
19
0155008353
ref: 19
01550-0835A
BOLT
0155008353
€ 3.50
20
0155008403
ref: 20
01550-0840A
BOLT
0155008403
€ 3.50
20A
0916808029
ref: 20A
GASKET(8.2X16X1) (NAS)
0916808029
€ 2.50
21
0155008503
ref: 21
01550-0850B
BOLT
0155008503
€ 2.50
22
0155008553
ref: 22
01550-0855A
BOLT
€ 3.00
23
0155008603
ref: 23
01550-0860A
BOLT
€ 3.50
24
0155008553
ref: 24
01550-0855A
BOLT
€ 3.00
24A
0155008653
ref: 24A
01550-0865A
BOLT
€ 3.00
25A
0155008753
ref: 25A
01550-0875A
BOLT
€ 3.50
25-1
0155008953
ref: 25-1
01550-0895A
BOLT
0155008953
€ 3.50
25-2
0910308105
ref: 25-2
BOLT(8X95)
0910308105
€ 3.00
26-1
0712008123
ref: 26-1
PLUG
€ 2.50
26-2
0910308407
ref: 26-2
BOLT(8X12)
€ 2.00
27
0924712106
ref: 27
PLUG,12X20
0924712106
€ 2.50
28
0916812002
ref: 28
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
29
0910310142
ref: 29
BOLT(10X135)
0910310142
€ 4.00
30
0910310278
ref: 30
BOLT(10X160)
0910310278
€ 9.50
31-1
0915910058
ref: 31-1
09159-10115
NUT
0915910058
€ 4.00
31-2
0915910113
ref: 31-2
NUT
€ 3.00
32
1145138A00
ref: 32
PIPE,OIL GALLERY
€ 13.50
33
0928015008
ref: 33
O RING(D:3.1,ID:14.8)
0928015008
€ 1.50
34
0910606075
ref: 34
BOLT(6X12)
0910606075
€ 2.50
35
1146138A00
ref: 35
CLAMP,OIL PIPE
€ 1.50
36
0924816012
ref: 36
PLUG,16X8
0924816012
€ 4.50
37
0916816002
ref: 37
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
38
3782033D10
ref: 38
SWITCH ASSY,OIL PRESSURE
3782033D10
€ 29.00
39
1659106B00
ref: 39
16591-06B01
UNION,OIL STAND
1659106B00
€ 6.00
