REAR SWINGING ARM (MODEL K1/K2)

VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

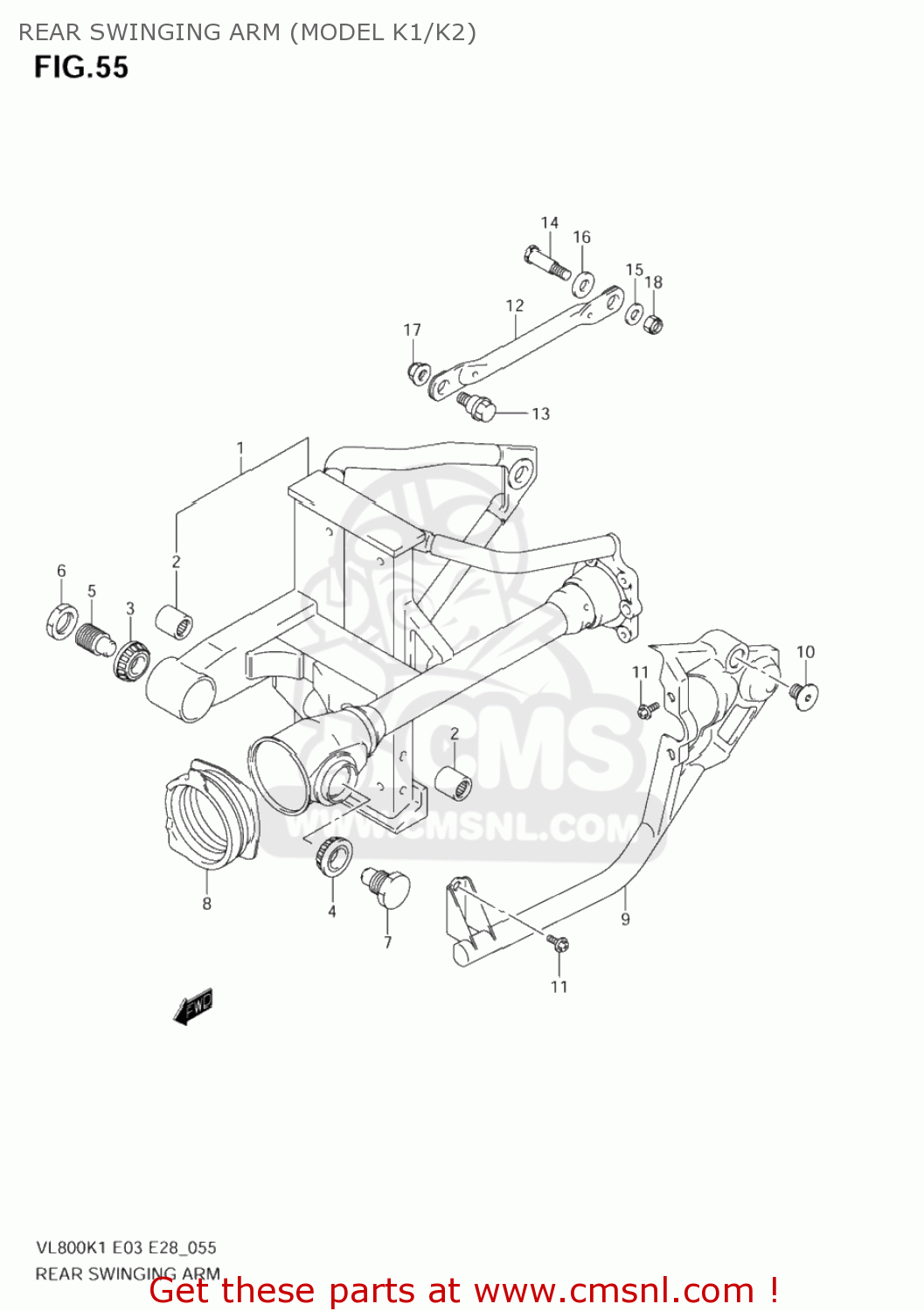

Rear swinging arm (model k1/k2) diagram VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

REAR SWINGING ARM (MODEL K1/K2) VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

REAR SWINGING ARM (MODEL K1/K2) VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

6110141870019
ref: 1
61101-41890-019

SWINGINGARM SET,RR

€ 919.00

2

0926317037
ref: 2

BEARING(17X24X25)

€ 19.00

3

0926517013
ref: 3

BEARING(17X40X13.25)

€ 47.00

3

0926517013
ref: 3

BEARING(17X40X13.25)

€ 47.00

4

0926517012
ref: 4

BEARING(17X40X13.25)

€ 35.00

4

0926517012
ref: 4

BEARING(17X40X13.25)

€ 35.00

5

6121324A00
ref: 5

BOLT,RR SWGARM PIVOT

€ 17.00

6

0914024007
ref: 6

NUT

€ 4.50

7

6121310F00
ref: 7

BOLT,SWINGINGARM PIVOT,L

€ 16.00

8

6137241F00
ref: 8

BOOT,PROPELLER SHAFT

€ 11.00

9

6112641F00
ref: 9

COVER,RR SWINGINGARM,L

€ 29.00

10

6112741F00
ref: 10
61127-41F0V

BOLT,RR SWGARM

€ 22.00

11

0911106058
ref: 11

BOLT(6X14.1)

€ 2.00

12

6431041F00
ref: 12

TORQUE LINK,RR

€ 15.50

13

0911110062
ref: 13

BOLT(10X22)

€ 5.00

14

0911110057
ref: 14

BOLT(10X41)

€ 4.00

15

0916010085
ref: 15
09160-10142

WASHER (10X20X2.3)

€ 2.00

16

0932012501
ref: 16

CUSHION

€ 5.50

17

0831931103
ref: 17
08319-3110A

NUT

€ 3.00

18

0915910027
ref: 18

NUT

€ 3.00
