REAR FENDER (MODEL K3)

VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

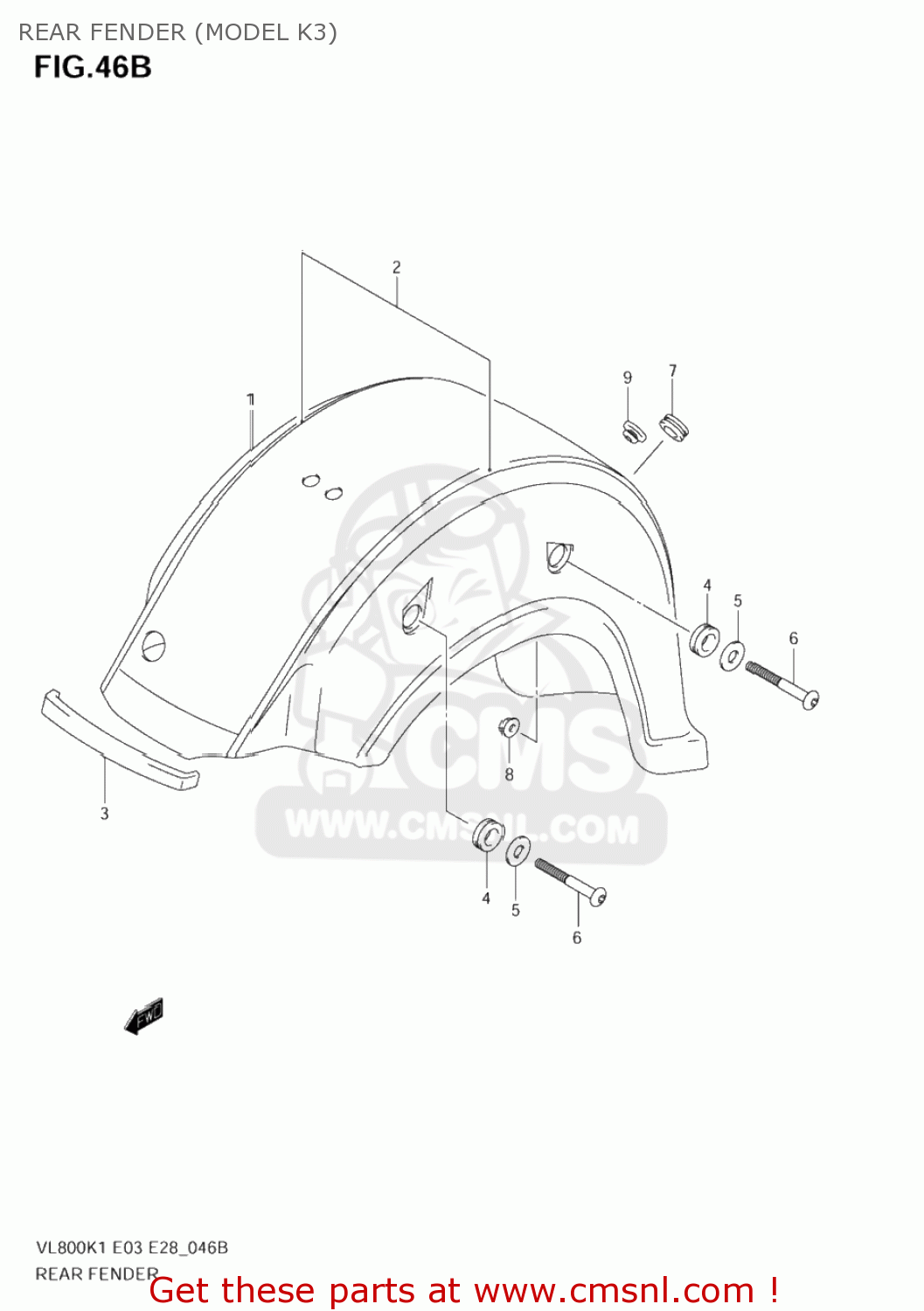

Rear fender (model k3) diagram VL800T BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

6311041F3033J
ref: 1-1

FENDER,RR

€ 388.00

1-2

6311041F30KT9
ref: 1-2

FENDER,RR

€ 688.50

1-3

6311041F30KU1
ref: 1-3

FENDER,RR

€ 520.00

1-4

6311041F30YC3
ref: 1-4

FENDER,RR

€ 550.50

2-1

6817041F10LT2
ref: 2-1

TAPE SET,RR FENDER

€ 194.50

2-2

6817041F10LS9
ref: 2-2

TAPE SET,RR FENDER

€ 161.50

2-3

6817041F10LT1
ref: 2-3

TAPE SET,RR FENDER

€ 194.50

2-4

6817041F10ME4
ref: 2-4

TAPE SET,RR FENDER

€ 181.00

4716129B00
ref: 3

SEALER,SIDE COVER L

€ 3.50

4719124F00
ref: 4

CUSHION,FRAME COVER UPR RR

€ 3.00

0916015002
ref: 5

WASHER(15.5X26X2.3)

€ 2.00

6316141F00
ref: 6

BOLT,RR FENDER

€ 5.00

0932015008
ref: 7

CUSHION

€ 3.50

0831610083
ref: 8
08316-1008B

NUT

€ 3.00

0932110007
ref: 9

CUSHION

€ 4.50
