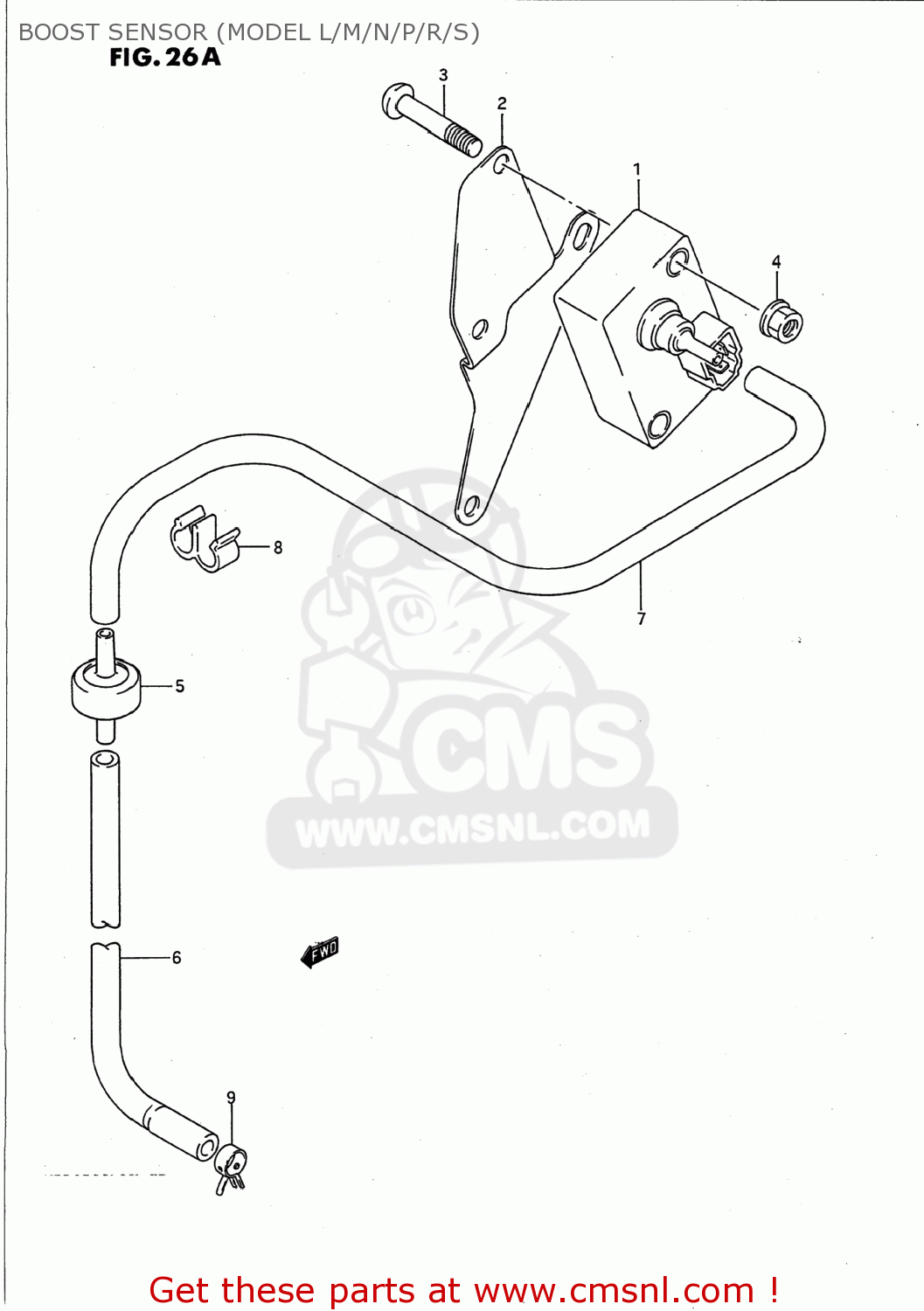

BOOST SENSOR (MODEL L/M/N/P/R/S)

VS1400GLP INTRUDER 1988 (J) USA (E03)

Boost sensor (model l/m/n/p/r/s) diagram VS1400GLP INTRUDER 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

3324038B00
ref: 1

SENSOR ASSY,BOOST

€ 716.50

3324138B00
ref: 2

BRACKET,BOOST SENSOR

€ 6.50

3-1

0211206306
ref: 3-1
02112-0630A

SCREW,6X30

€ 2.50

3-2

0211206303
ref: 3-2
02112-0630A

SCREW 6X30

€ 2.50

4-1

0831616066
ref: 4-1
08316-1006B

NUT

€ 2.50

4-2

0831616063
ref: 4-2
08316-1006B

NUT

€ 2.00

2796585400
ref: 5

FILTER,VSV

€ 7.50

3324238B00
ref: 6

HOSE,BOOST NO.1

€ 8.50

093543575300B
ref: 7
09355-35755-00B

HOSE (3.5X7.5X2000)

€ 43.00

0940800033
ref: 8

CLAMP

€ 2.50

0940107401
ref: 9

CLAMP

€ 2.00
