FRONT FORK
VS1400GLP INTRUDER 1988 (J) USA (E03)

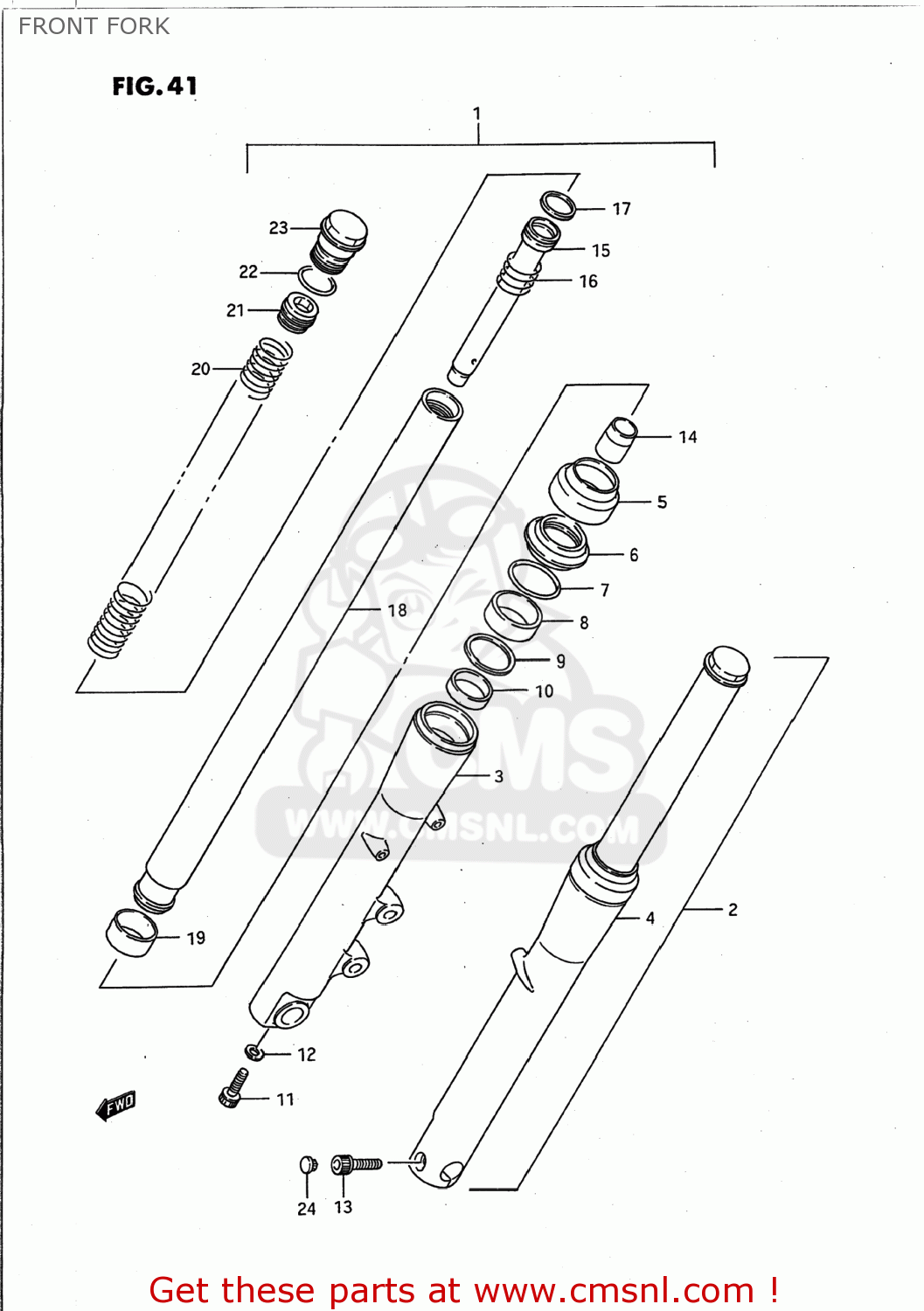

Front fork diagram VS1400GLP INTRUDER 1988 (J) USA (E03)
FRONT FORK VS1400GLP INTRUDER 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110338B00
ref: 1
DAMPER ASSY,FR FORK,R
€ 858.50
2
5110438B00
ref: 2
DAMPER ASSY,FR FORK,L
€ 923.50
3
5113138B00
ref: 3
TUBE,OUTER,R
€ 470.00
4
5114138B00
ref: 4
TUBE,OUTER,L
€ 470.00
5
5157238B00
ref: 5
COVER,CASE
€ 31.00
6-1
5157138B00
ref: 6-1
51173-15D00
BOOT
€ 19.50
6-2
5117308D00
ref: 6-2
51173-15D00
DUST SEAL,FRONT FORK
€ 19.50
6-3
5117315D00
ref: 6-3
DUST SEAL
€ 19.50
7
5155638B00
ref: 7
CIRCLIP,FORK OIL SEAL
€ 4.50
8-1
5115338B00
ref: 8-1
51153-08D00
OIL SEAL,FRONT FORK
€ 15.50
8-2
5115312C00
ref: 8-2
51153-08D00
OIL SEAL,FRONT FORK
€ 15.50
8-3
5115308D00
ref: 8-3
SEAL,OIL
€ 15.50
9
5116838B00
ref: 9
SPACER,SEAL
€ 5.00
10-1
5115238B00
ref: 10-1
51152-48B31
BUSHING,GUIDE
€ 20.00
10-2
5115248B31
ref: 10-2
BUSH,GUIDE
€ 20.00
11
5114748130
ref: 11
BOLT(8X27)
€ 3.50
12
5114836011
ref: 12
GASKET (NAS)
€ 4.00
13
0713008407
ref: 13
BOLT
€ 3.50
14
5119538B00
ref: 14
PIECE,OIL LOCK
€ 27.50
15
5114638B00
ref: 15
CYLINDER
€ 92.00
16
5117732B00
ref: 16
SPRING,REBOUND
€ 9.50
17
5119632B00
ref: 17
RING,PISTON
€ 7.50
18
5111038B00
ref: 18
TUBE,INNER
€ 546.00
19-1
5112138B00
ref: 19-1
51121-03D00
PISTON
€ 15.00
19-2
5112103D00
ref: 19-2
BUSH,SLIDE
€ 15.00
20
5117138B00
ref: 20
SPRING,FR FORK
€ 119.50
21
5135338B00
ref: 21
BOLT,FORK INNER
€ 27.50
22
5111738B00
ref: 22
O RING
€ 4.00
23
5135138B00
ref: 23
BOLT
€ 81.00
24
0925006009
ref: 24
CAP(OD:14.5)
€ 3.50
