prices are in EUR
ref
part #
description
quantity

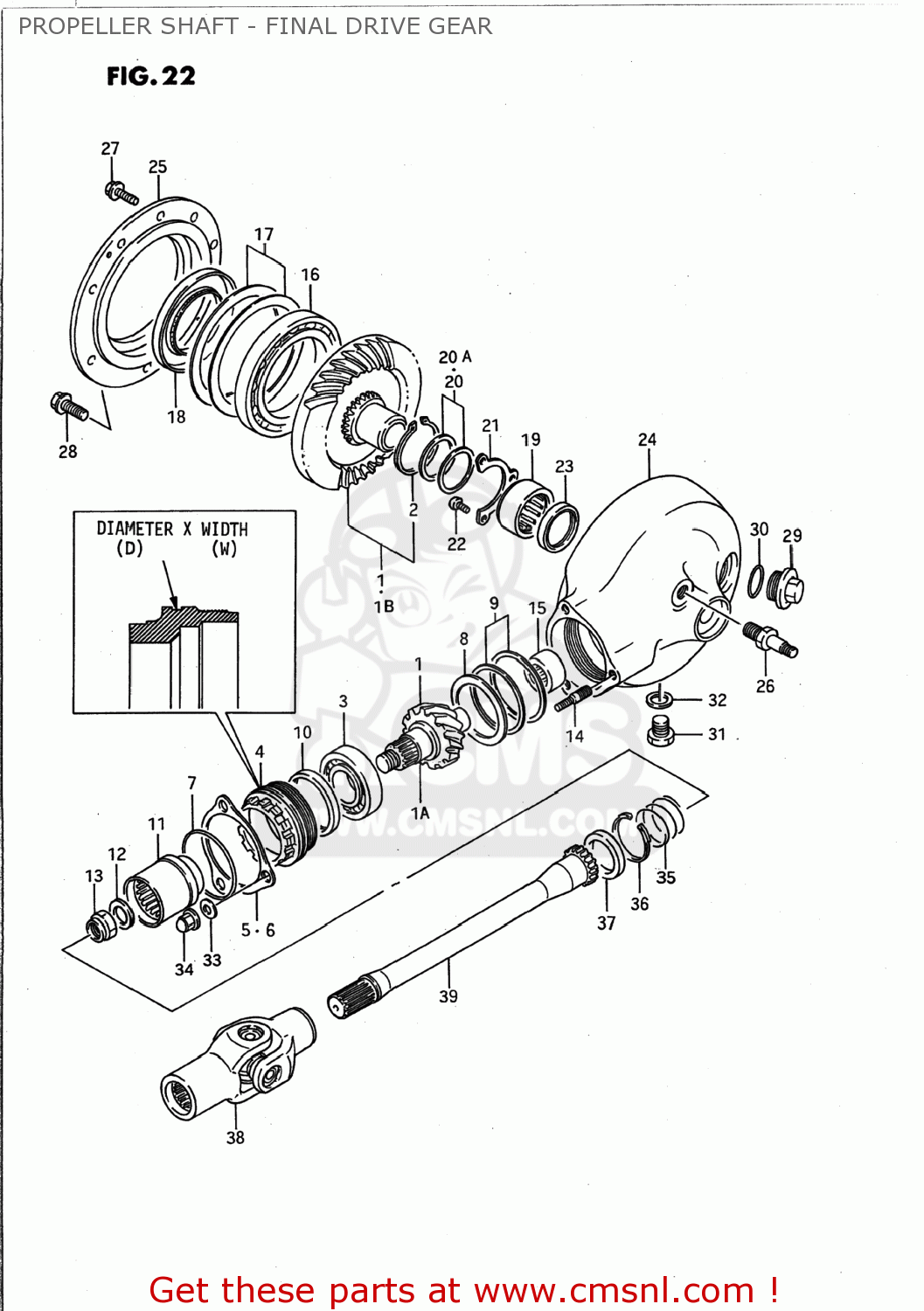

GEAR & CASE SET,FINAL BEVEL
GEAR & CASE SET,FINAL BEVEL
GEAR & CASE SET,FINAL BEVEL
1
GEAR & CASE SET,FINAL BEVEL
1A
GEAR,FINAL DRIVE BEVEL
1B
GEAR,FINAL DRIVEN BEVEL
3-2
BEARING(28X68X18)
4-1
STOPPER,FINAL DRIVE BEVEL
4-1
STOPPER,FINAL DRIVE BEVEL
4-1
STOPPER,FINAL DRIVE BEVEL
4-2
STOPPER,FINAL DRIVE BEARING
5
PLATE,BEARING STOPPER
6
PLATE,BEARING STOPPER
7-1
O RING(D:2.1,ID:66.2)
7-2
O RING(D:3.1,ID:63.9)
8
WASHER(54X68X1.5)
9
SHIM SET,FINAL DRIVE GEAR
10-1
OIL SEAL
10-2
SEAL,OIL
11
COUPLING,FINAL DRIVE GEAR
12
WASHER(16X29X4)
13
NUT
14
STUD 10X25
15
BEARING(20X34X18)
16
BEARING(85X130X14)
17
SHIM SET,FINAL DRIVEN GEAR
18
SEAL,OIL(70X110X14.7)
19
BEARING(35X48X23.7)
20
WASHER(35X46X0.95)
20A
SHIM SET,FINAL DRIVEN
20A
SHIM SET,FINAL DRIVEN
21
RETAINER,FINAL DRIVEN GEAR BRG
22-1
SCREW 6X12
22-2
SCREW
23
SEAL,OIL(35X43X5)
24
CASE,FINAL GEAR
25
CASE,FINAL GEAR BEARING
26
BOLT,STUD
27-1
BOLT
27-2
BOLT
28-1
BOLT
28-2
BOLT
29
PLUG,30X9
30
O-RING
32-1
GASKET(14X19.2X2) (NAS)
32-2
GASKET(13.8X18.8X4.8) (NAS)
33
WASHER
34
NUT
35
SPRING
36
CIRCLIP
37
SEAL,OIL(30X40.5X5.5)
38
YOKE COMP,UNIVERSAL JOINT
39
SHAFT,PROPELLER
