CARBURETOR (FRONT)

VS1400GLP INTRUDER 1996 (T) USA (E03)

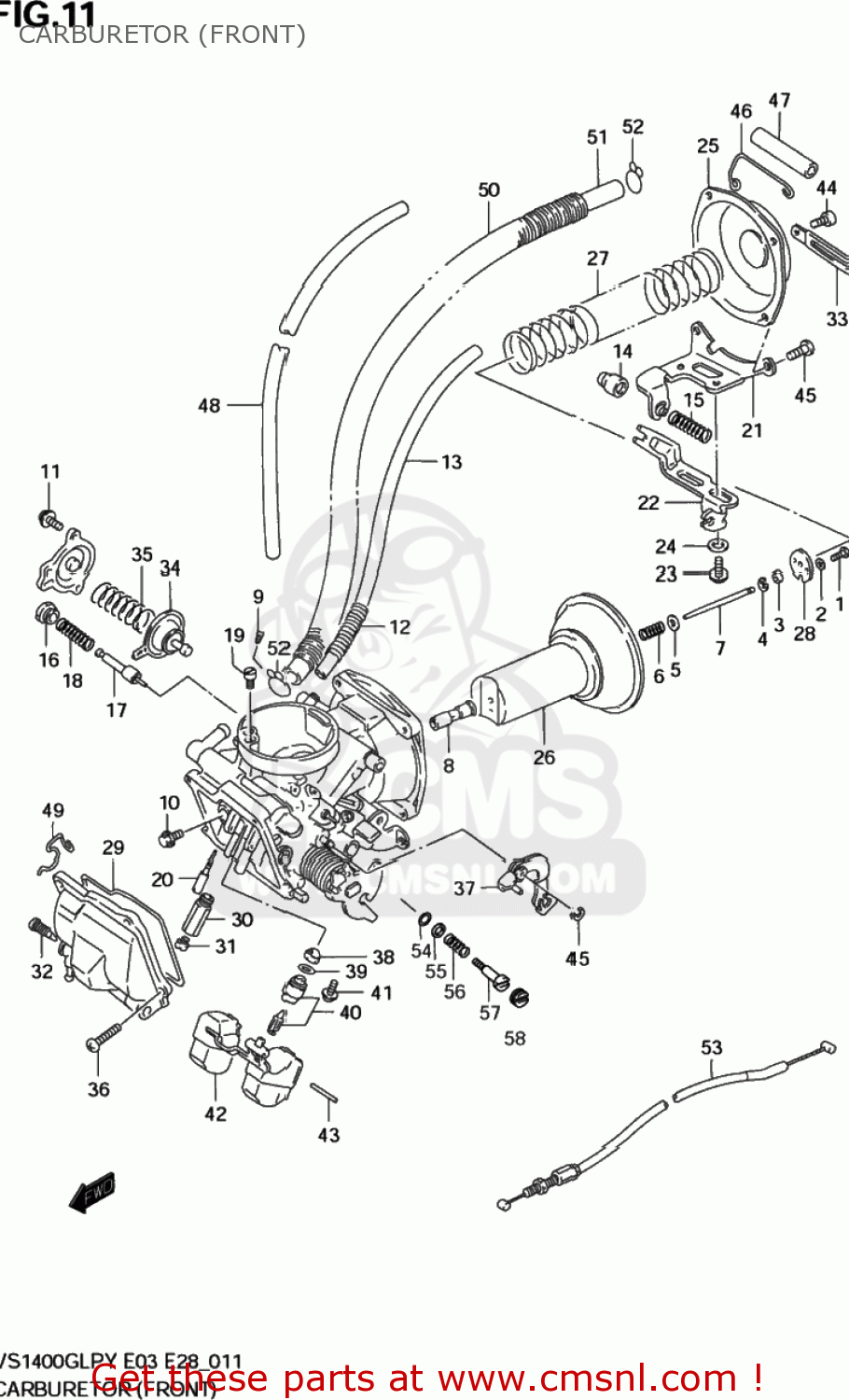

Carburetor (front) diagram VS1400GLP INTRUDER 1996 (T) USA (E03)

CARBURETOR (FRONT) VS1400GLP INTRUDER 1996 (T) USA (E03)
CARBURETOR (FRONT) VS1400GLP INTRUDER 1996 (T) USA (E03)
CARBURETOR (FRONT) VS1400GLP INTRUDER 1996 (T) USA (E03)
prices are in EUR
ref
part #
description
quantity

1321038B40
ref:
CARBURETOR ASSY,FR
€ 301.50

1321038B70
ref:
CARBURETOR,FR.
€ 785.00

1321038B50
ref:
CARBURETOR ASSEMBLY,FRONT
€ 319.00

1321038BE0
ref:
13210-38BE1
CARBURATEUR.V.
€ 561.00

1321038BF0
ref:
CARBURETOR ASSY,FR
€ 0.00
1
0211203063
ref: 1
02112-0306B
SCREW
0211203063
€ 2.00
2
0832121033
ref: 2
08321-2103B
WASHER,LOCK
0832121033
€ 1.50
3
1338747010
ref: 3
RING
1338747010
€ 7.50
4
1339410010
ref: 4
CLIP
1339410010
€ 4.50
5
1338244030
ref: 5
WASHER
1338244030
€ 3.50
6
1338844030
ref: 6
SPRING
1338844030
€ 6.00
7-1
1338338B40
ref: 7-1
NEEDLE,JET
1338338B40
€ 17.50
7-2
1338338B90
ref: 7-2
NEEDLE,JET
1338338B90
€ 18.00
8-1
0949400570
ref: 8-1
JET,NEEDLE(O-9)
0949400570
€ 26.00
8-2
0949400894
ref: 8-2
JET,NEEDLE(O-9M)
€ 0.00
9-1
0949328007
ref: 9-1
09493-28006
JET,AIR
€ 15.50
9-2
0949328006
ref: 9-2
JET,PILOT AIR,1.4
0949328006
€ 15.50
9-3
0949334002
ref: 9-3
JET,PILOT AIR(1.7)
€ 9.50
10
1360538B00
ref: 10
SCREW
1360538B00
€ 7.50
11
0211204103
ref: 11
02112-0410A
SCREW
0211204103
€ 1.00
12
1368938A00
ref: 12
SPRING
1368938A00
€ 8.50
13
0935250823600
ref: 13
44420-44AR0
HOSE(5X8.2X600)
0935250823600
€ 13.00
14
1368104010
ref: 14
CAP
1368104010
€ 3.00
15
1341737100
ref: 15
SPRING
1341737100
€ 4.00
16
1341805A10
ref: 16
HOLDER,GUIDE
1341805A10
€ 12.00
17-1
1341138B00
ref: 17-1
13411-05300
PLUNGER
1341138B00
€ 23.50
17-2
1341105300
ref: 17-2
PLUNGER
1341105300
€ 23.50
18
1341743010
ref: 18
SPRING
1341743010
€ 3.50
19-1
0949270004
ref: 19-1
JET,PILOT(70)
0949270004
€ 9.50
19-2
0949255010
ref: 19-2
09492-55012
JET,PILOT
0949255010
€ 13.50
20
0949250018
ref: 20
JET,PILOT(50)
0949250018
€ 17.50
21
1362838B00
ref: 21
BRACKET
€ 32.50
22
1342238B00
ref: 22
PLATE
€ 19.50
23
1360205A30
ref: 23
SCREW
1360205A30
€ 4.50
24
1333205A20
ref: 24
WASHER
1333205A20
€ 3.00
25
1350238A00
ref: 25
COVER,DIAPHRAGM
1350238A00
€ 34.00
26-1
1350005A10
ref: 26-1
DIAPHRAGM,CARBURETOR
1350005A10
€ 178.00
26-2
1350038B20
ref: 26-2
DIAPHRAGM ASSY
1350038B20
€ 255.50
27
1350338B00
ref: 27
SPRING,DIAPHRAGM
1350338B00
€ 12.00
28
1338937400
ref: 28
PLATE
1338937400
€ 5.50
29
1325138A00
ref: 29
O RING,FLOAT CHAMBER
1325138A00
€ 6.50
30
1338505A11
ref: 30
HOLDER,MAIN JET
1338505A11
€ 14.00
31
0949125014
ref: 31
JET,MAIN(125)
0949125014
€ 11.50
32-1
1324713A00
ref: 32-1
13247-02340
SCREW,DRAIN
1324713A00
€ 5.50
32-2
1324702340
ref: 32-2
PLUG,DRAIN
1324702340
€ 5.50
33
0940406413
ref: 33
09404-06432
CLAMP
0940406413
€ 2.50
34
1348005A10
ref: 34
DIAPHRAGM ASSY
1348005A10
€ 54.50
35
1348138B40
ref: 35
SPRING
1348138B40
€ 5.50
36
1360104148
ref: 36
SCREW
1360104148
€ 2.50
37-1
1355445C00
ref: 37-1
13554-45C20
LEVER ASSEMBLY
€ 38.50
37-2
1355445C20
ref: 37-2
LEVER ASSY
1355445C20
€ 38.50
38-1
1337684110
ref: 38-1
13376-19F00
FILTER
€ 6.50
38-2
1337619F00
ref: 38-2
FILTER
1337619F00
€ 6.50
39-1
1337444080
ref: 39-1
13374-35C00
O-RING,NEEDLE VALVE
1337444080
€ 6.00
39-2
1337435C00
ref: 39-2
O RING,NEEDLE VALVE SEAT
1337435C00
€ 6.00
40
1337039A00
ref: 40
VALVE ASSY,NEEDLE
1337039A00
€ 67.50
41
1360205A10
ref: 41
SCREW
1360205A10
€ 4.00
42
1325038B00
ref: 42
FLOAT
1325038B00
€ 32.00
43
1325420010
ref: 43
PIN,FLOAT
1325420010
€ 3.00
44
0211205123
ref: 44
02112-0512A
SCREW
0211205123
€ 1.50
45
1341538300
ref: 45
E RING
1341538300
€ 2.00
46
1367138A00
ref: 46
CLIP
1367138A00
€ 10.50
47
0935260103600
ref: 47
HOSE(6X10X600)
0935260103600
€ 18.00
48
1368338B00
ref: 48
13683-38B01
(CA) HOSE SET,FUEL
€ 19.50
49
1369224A00
ref: 49
CLAMP
€ 5.00
50-1
1368438B10
ref: 50-1
SHIELD,FUEL HOSE HEATER
€ 3.50
50-2
4442321F00
ref: 50-2
13684-38B10
SHIELD,HEAT FUEL HOSE
€ 3.50
51
0935465113600
ref: 51
HOSE(6.5X11.5X600)
0935465113600
€ 26.00
52-1
0940111402
ref: 52-1
09401-11403
CLAMP
€ 3.00
52-2
0940111403
ref: 52-2
CLIP
0940111403
€ 3.00
53
1364138B02
ref: 53
13641-38B03
CABLE,IDLE SYNCRO
€ 17.50
54
1329529900
ref: 54
O RING,PILOT AIR SCREW
1329529900
€ 4.00
55
1329129900
ref: 55
WASHER
1329129900
€ 2.00
56
1326847070
ref: 56
SPRING
1326847070
€ 5.00
57
1327947070
ref: 57
SCREW,PILOT
1327947070
€ 11.50
58
1328105A00
ref: 58
PLUG
1328105A00
€ 3.50
