REAR FENDER (MODEL T)

VS1400GLP INTRUDER 1996 (T) USA (E03)

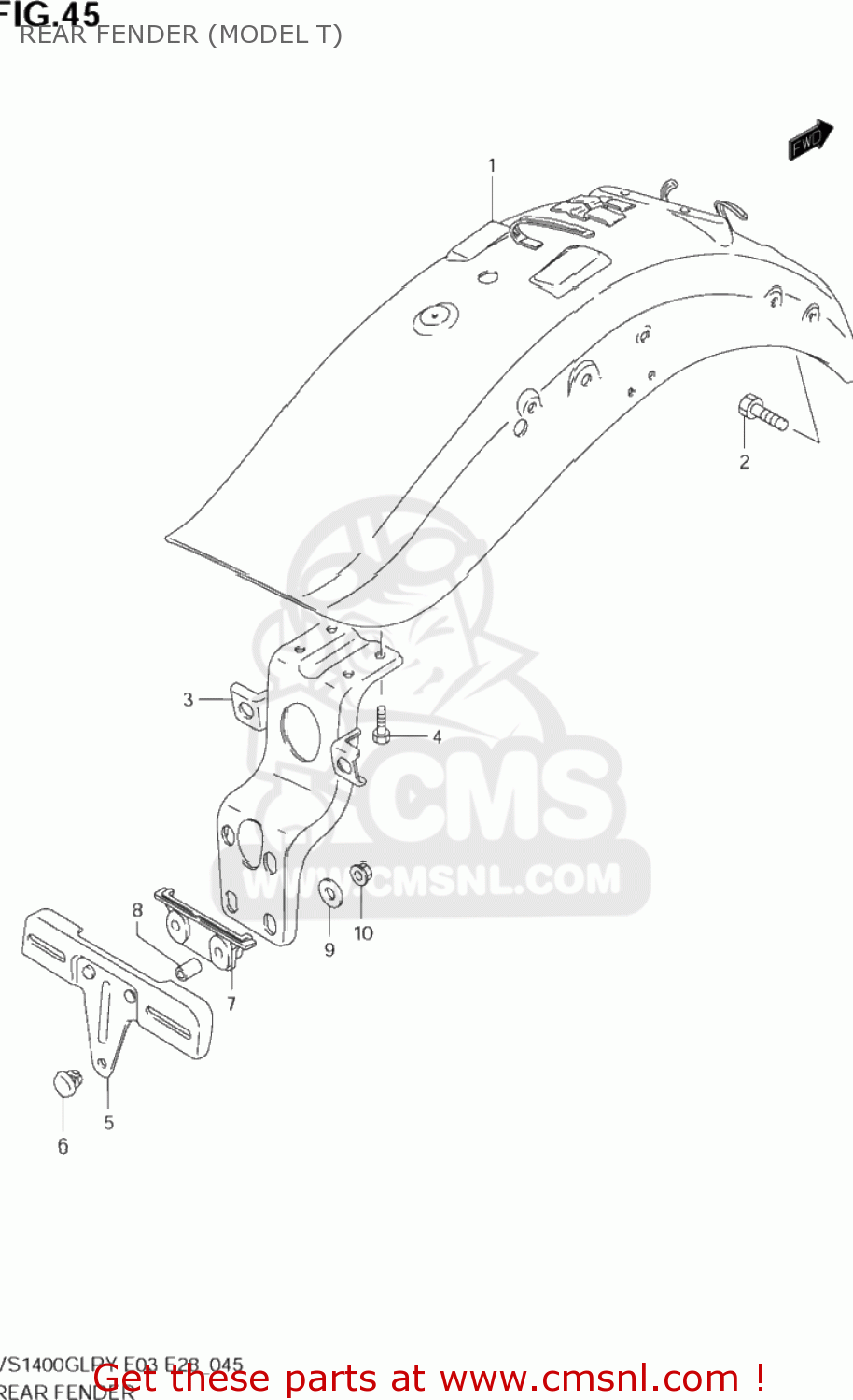

Rear fender (model t) diagram VS1400GLP INTRUDER 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6311038B0033J
ref: 1-1
63110-38B01-33J

FENDER COMP,REAR

€ 242.50

1-2

6311038B001ZV
ref: 1-2
63110-38B01-1ZV

FENDER COMP,REAR

€ 170.50

0155008203
ref: 2
01550-0820A

BOLT

€ 3.00

6346038B00
ref: 3

BRACKET,RR COMBINATION LAMP

€ 74.00

0157006123
ref: 4
01570-0612A

BOLT

€ 1.50

6346338B00
ref: 5
63463-38B10

PLATE,REAR LICENSE

€ 27.50

0932108005
ref: 6

CUSHION

€ 2.50

6346438B00
ref: 7

CUSHION,RR LICENSE PLATE

€ 14.50

0918005028
ref: 8
09180-05050

SPACER (5.5X7.5X14.3)

€ 4.00

0916005501
ref: 9

WASHER(5.5X20X1.2)

€ 2.00

0831620053
ref: 10
08316-2005A

NUT

€ 2.00
