VS1400GLP INTRUDER 1996 (T) USA (E03)

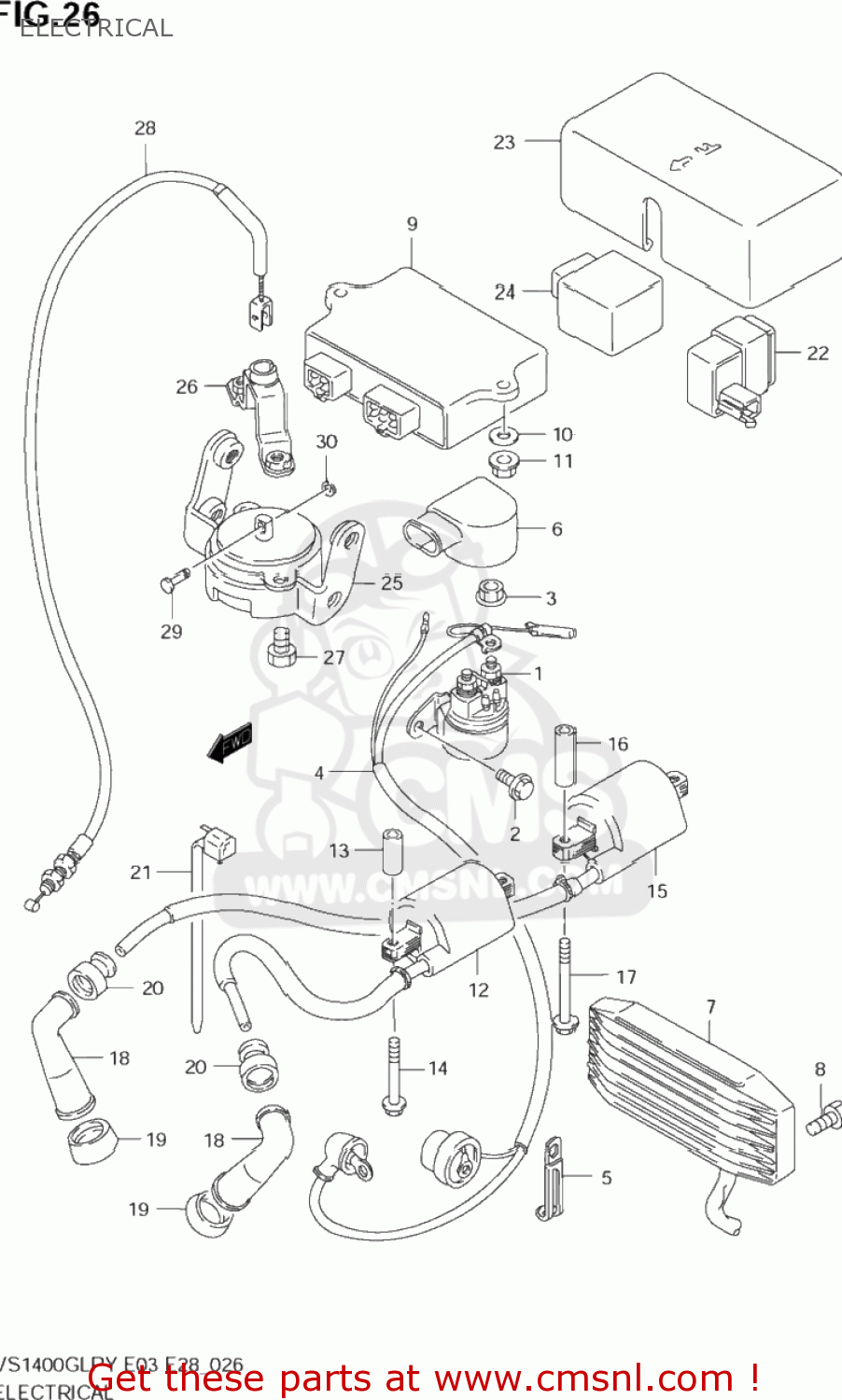

Electrical diagram VS1400GLP INTRUDER 1996 (T) USA (E03)
ELECTRICAL VS1400GLP INTRUDER 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
€ 89.00
2
0155006103
ref: 2
01550-0610A
BOLT
€ 2.50
3
0836135068
ref: 3
08361-3506A
NUT
€ 2.00
4
3385038B00
ref: 4
WIRE,STARTER MOTOR LEAD
€ 57.50
5
0940406401
ref: 5
09404-06432
CLAMP L:35
€ 2.50
6-1
3362449420
ref: 6-1
33624-49401
CAP,STARTER RELAY TERMINAL
€ 5.00
6-2
3362449401
ref: 6-2
CAP,STARTER RELAY TERMINAL
€ 5.00
7
3280012E01
ref: 7
RECTIFIER ASSY
€ 368.00
8
0150006103
ref: 8
01500-0610B
BOLT
€ 2.00
9
3290038B50
ref: 9
IGNITOR ASSY
€ 802.50
10-1
0916006017
ref: 10-1
09160-06127
WASHER (6.5X13X2.3)
€ 2.00
10-2
0916006115
ref: 10-2
09160-06131
WASHER
€ 2.50
10-3
0916006131
ref: 10-3
WASHER(6.5X16X4)
€ 2.50
11
0831610063
ref: 11
08316-1006B
NUT
€ 2.50
12
3341038B00
ref: 12
COIL ASSY,IGNITION RR
€ 151.00
13
0918006178
ref: 13
SPACER(6.4X10X22)
€ 4.00
14
0157005453
ref: 14
01570-0545B
BOLT
€ 2.50
15
3342038B00
ref: 15
COIL ASSY,IGNITION
€ 151.00
16
0918006179
ref: 16
SPACER(6.4X10X32)
€ 5.00
17
0157005553
ref: 17
BOLT
€ 2.50
18
3351038B00
ref: 18
CAP,SPARK PLUG
€ 21.50
19
3354124510
ref: 19
33541-47D00
SEAL,SPARK PLUG CAP
€ 7.00
20
3354238B00
ref: 20
SEAL,HIGH TENSION CORD
€ 4.50
21
0940714403
ref: 21
CLAMP(L:125)
€ 2.50
22
3395038B00
ref: 22
RELAY ASSY,FUEL CUT
€ 89.00
23
3395138B00
ref: 23
COVER,RELAY
€ 19.50
24
3291024B10
ref: 24
CONTROL UNIT,DECOMP
€ 69.50
25
3397038B00
ref: 25
SOLENOID ASSY,DECOMP
€ 290.00
26
3397138B00
ref: 26
BRACKET,DECOMP SOLENOID
€ 13.50
27
0155006123
ref: 27
01550-0612A
BOLT
€ 2.50
28
5890038B01
ref: 28
58900-38B20
CABLE ASSEMBLY,DECOMPRESSION
€ 53.00
29
0920904020
ref: 29
PIN(4X12.5)
€ 5.50
30
0833211033
ref: 30
E RING
€ 1.50
