SECONDARY DRIVE GEAR

VS1400GLP INTRUDER 1996 (T) USA (E03)

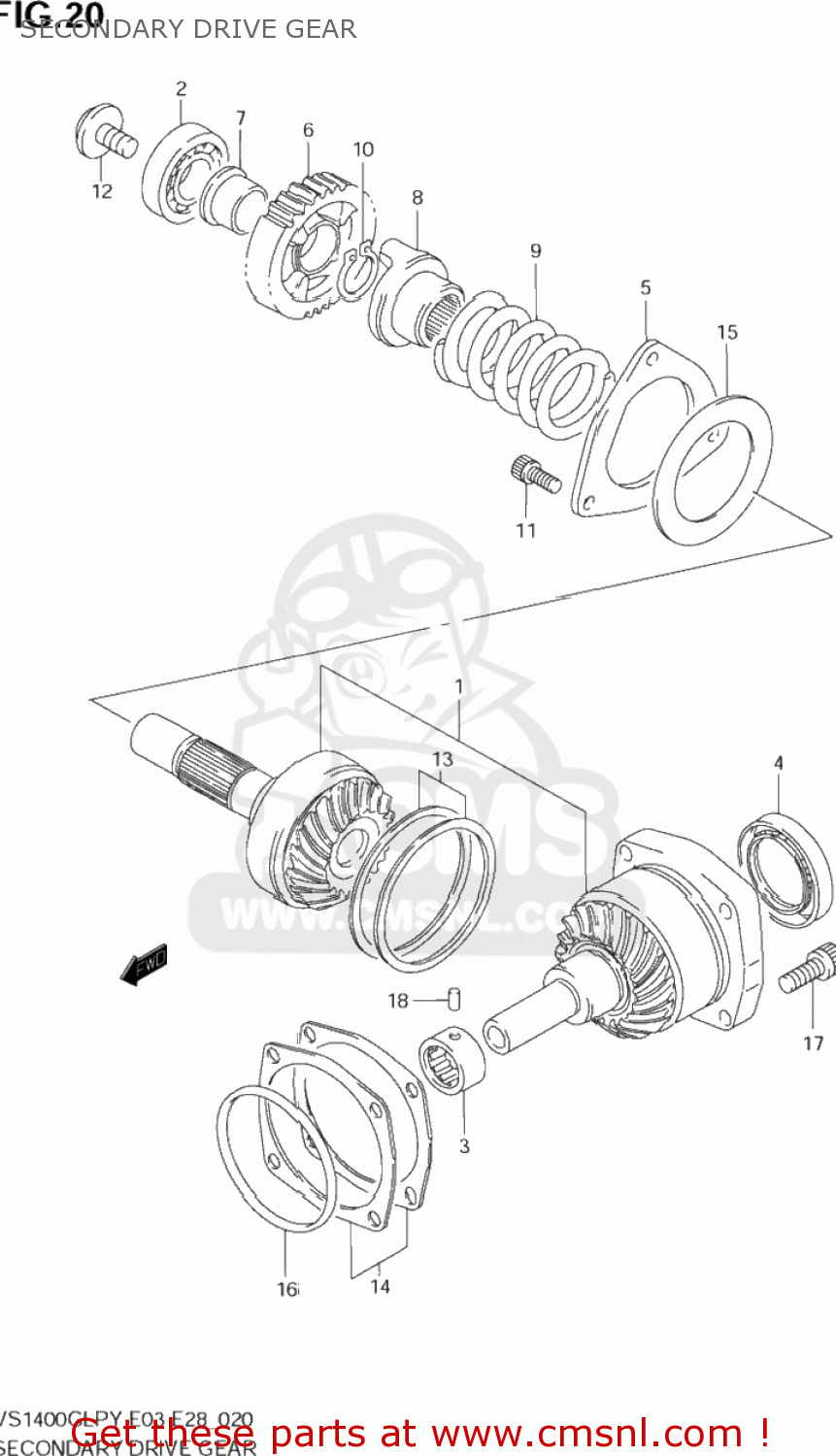

Secondary drive gear diagram VS1400GLP INTRUDER 1996 (T) USA (E03)

SECONDARY DRIVE GEAR VS1400GLP INTRUDER 1996 (T) USA (E03)
SECONDARY DRIVE GEAR VS1400GLP INTRUDER 1996 (T) USA (E03)
SECONDARY DRIVE GEAR VS1400GLP INTRUDER 1996 (T) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2490038830
ref: 1
GEAR & HOUSING SET,SECONDARY
€ 1,064.50
2
0926225080
ref: 2
BEARING(25X62X17)
0926225080
€ 21.50
3
0926320038
ref: 3
BEARING(20X34X16)
0926320038
€ 30.50
4
0928344010
ref: 4
SEAL,OIL(44X68X8)
0928344010
€ 51.00
5
2493138B00
ref: 5
STOPPER,SEC DRIVE BEARING
2493138B00
€ 39.00
6
2463138B00
ref: 6
GEAR,OVER DRIVING DRIVEN
€ 183.50
7-1
2463238B00
ref: 7-1
24632-38B01
BUSHING,ODOMETER DRIVEN GEAR
€ 24.50
7-2
2463238B01
ref: 7-2
BUSHING,OD DRIVEN GEAR
2463238B01
€ 24.50
8-1
2492238B00
ref: 8-1
24922-38B01
DOG,OUTPUT CAM
€ 43.50
8-2
2492238B01
ref: 8-2
DOG,OUTPUT CAM
2492238B01
€ 43.50
9
0944057001
ref: 9
SPRING
0944057001
€ 49.50
10
0833131266
ref: 10
CIRCLIP
0833131266
€ 2.50
11
0713008203
ref: 11
07130-0820B
BOLT
0713008203
€ 3.00
12
0910314005
ref: 12
BOLT(14X21)
0910314005
€ 17.00
13
2493538820
ref: 13
SHIM SET,SEC DRIVE
€ 95.00
13
2493538820
ref: 13
SHIM SET,SEC DRIVE
€ 95.00
14
2494538810
ref: 14
SHIM SET,SEC DRIVEN
2494538810
€ 33.00
15
0916057001
ref: 15
WASHER(57X90X3)
€ 17.00
16
0928078003
ref: 16
O RING(D:3.7,ID:76.5)
0928078003
€ 6.00
17
0713008253
ref: 17
07130-0825B
BOLT
0713008253
€ 3.50
18
0422107129
ref: 18
PIN
0422107129
€ 1.50
