CARBURETOR (REAR)

VS1400GLP INTRUDER 1996 (T) USA (E03)

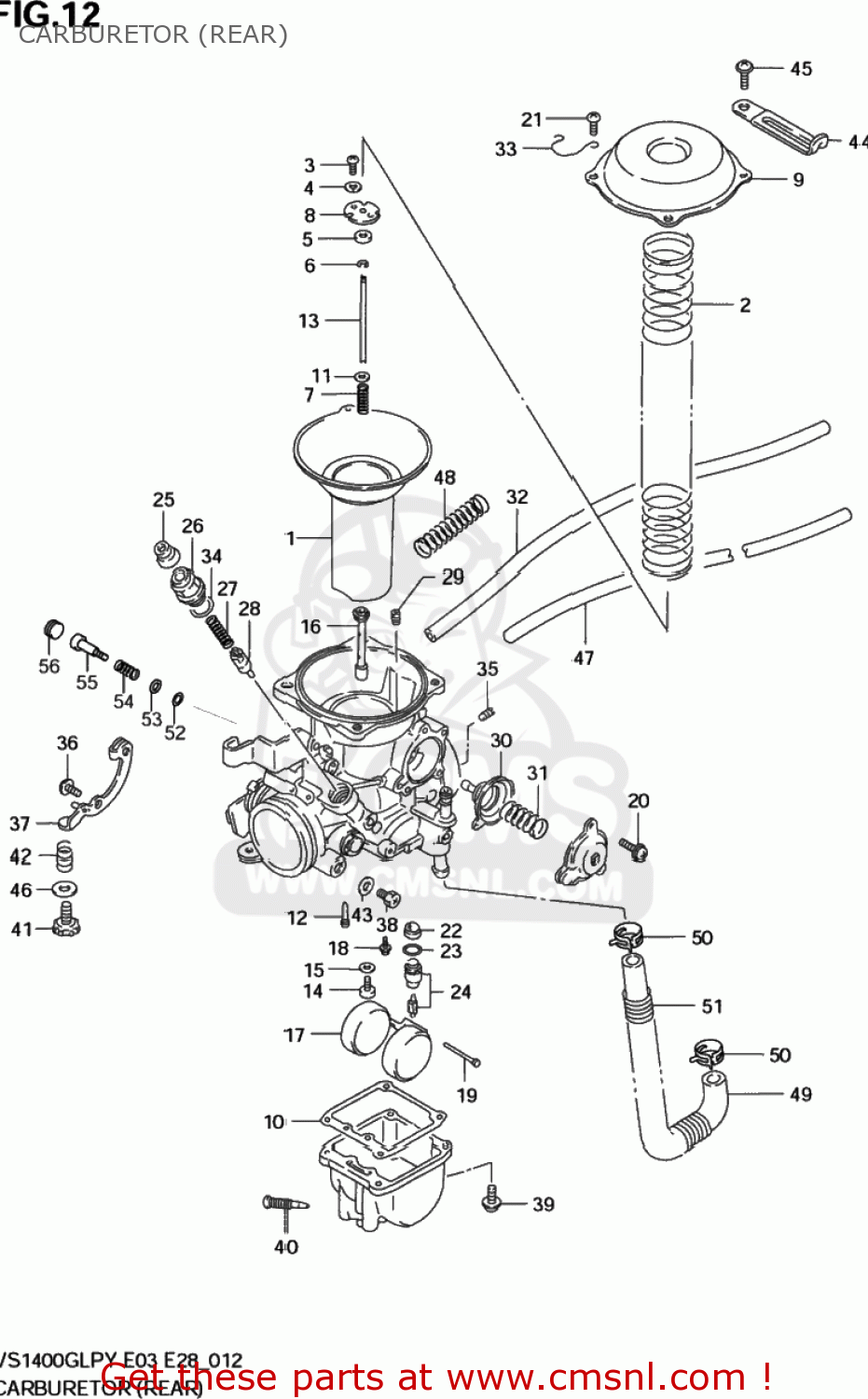

Carburetor (rear) diagram VS1400GLP INTRUDER 1996 (T) USA (E03)

CARBURETOR (REAR) VS1400GLP INTRUDER 1996 (T) USA (E03)
CARBURETOR (REAR) VS1400GLP INTRUDER 1996 (T) USA (E03)
CARBURETOR (REAR) VS1400GLP INTRUDER 1996 (T) USA (E03)
prices are in EUR
ref
part #
description
quantity

1322038B40
ref:
CARBURETOR ASSY,RR
€ 785.00

1322038B70
ref:
CARBURETOR ASSY, REAR
€ 730.00

1322038B50
ref:
CARBURETOR ASSEMBLY,REAR
€ 319.00

1322038BE0
ref:
13220-38BE1
CARBURETOR ASSEMBLY,REAR
€ 0.00

1322038BF0
ref:
CARBURETOR ASSY,RR
€ 0.00
1-1
1350038A10
ref: 1-1
DIAPHRAGM,CARBURETOR
1350038A10
€ 222.50
1-2
1350038B10
ref: 1-2
DIAPHRAGM ASSY
1350038B10
€ 231.00
2
1350305A10
ref: 2
SPRING,DIAPHRAGM
1350305A10
€ 12.00
3
0211203063
ref: 3
02112-0306B
SCREW
0211203063
€ 2.00
4
0832121033
ref: 4
08321-2103B
WASHER,LOCK
0832121033
€ 1.50
5
1338747010
ref: 5
RING
1338747010
€ 7.50
6
1339410010
ref: 6
CLIP
1339410010
€ 4.50
7
1338844030
ref: 7
SPRING
1338844030
€ 6.00
8
1338937400
ref: 8
PLATE
1338937400
€ 5.50
9-1
1350238A10
ref: 9-1
13502-45CE0
COVER,DIAPHRAGM
€ 37.50
9-2
1350245CE0
ref: 9-2
COVER
1350245CE0
€ 37.50
10
1325138A10
ref: 10
GASKET,FLOAT CHAMBER (NAS)
1325138A10
€ 8.00
11
1338244030
ref: 11
WASHER
1338244030
€ 3.50
12-1
0949255014
ref: 12-1
JET,PILOT(55)
0949255014
€ 16.50
12-2
0949257004
ref: 12-2
JET,PILOT
0949257004
€ 10.50
13-1
1338338B00
ref: 13-1
NEEDLE,JET
1338338B00
€ 17.50
13-2
1338338B80
ref: 13-2
NEEDLE,JET
1338338B80
€ 17.50
14
0949128010
ref: 14
JET,MAIN(140)
0949128010
€ 8.50
15-1
1333244080
ref: 15-1
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
15-2
1338203110
ref: 15-2
WASHER
1338203110
€ 2.50
16-1
0949400571
ref: 16-1
JET,NEEDLE
0949400571
€ 21.50
16-2
0949400573
ref: 16-2
09494-00856
JET,NEEDLE
€ 37.00
16-3
0949400895
ref: 16-3
JET,NEEDLE(P-2M)
€ 0.00
17
1325223010
ref: 17
FLOAT
1325223010
€ 19.00
18
1360205A10
ref: 18
SCREW
1360205A10
€ 4.00
19
1325492311
ref: 19
PIN,FLOAT
1325492311
€ 2.00
20
0211204103
ref: 20
02112-0410A
SCREW
0211204103
€ 1.00
21
0211204083
ref: 21
02112-0408A
SCREW
€ 2.00
22-1
1337684110
ref: 22-1
13376-19F00
FILTER
€ 6.50
22-2
1337619F00
ref: 22-2
FILTER
1337619F00
€ 6.50
23-1
1337444080
ref: 23-1
13374-35C00
O-RING,NEEDLE VALVE
1337444080
€ 6.00
23-2
1337435C00
ref: 23-2
O RING,NEEDLE VALVE SEAT
1337435C00
€ 6.00
24
1337039A00
ref: 24
VALVE ASSY,NEEDLE
1337039A00
€ 67.50
25
1368104010
ref: 25
CAP
1368104010
€ 3.00
26
1341843410
ref: 26
HOLDER,GUIDE
1341843410
€ 6.50
27
1341722010
ref: 27
SPRING
1341722010
€ 3.00
28
1341101400
ref: 28
PLUNGER,STARTER
1341101400
€ 11.50
29-1
0949331001
ref: 29-1
JET,AIR(1.55)
€ 12.00
29-2
0949338002
ref: 29-2
JET,AIR(1.9)
0949338002
€ 10.00
30
1348005A10
ref: 30
DIAPHRAGM ASSY
1348005A10
€ 54.50
31
1348138B40
ref: 31
SPRING
1348138B40
€ 5.50
32
1368338A20
ref: 32
13683-38A21
HOSE ASSEMBLY
1368338A20
€ 70.00
33
1369202500
ref: 33
CLIP
€ 7.00
34
1327847090
ref: 34
O RING
1327847090
€ 2.00
35-1
0949240019
ref: 35-1
09492-40018
JET
€ 16.00
35-2
0949240018
ref: 35-2
JET,PILOT(40)
0949240018
€ 16.00
35-3
0949260010
ref: 35-3
09492-60012
JET
0949260010
€ 7.50
36
1360205A30
ref: 36
SCREW
1360205A30
€ 4.50
37-1
1355438B00
ref: 37-1
13554-45C20
LEVER ASSEMBLY
1355438B00
€ 38.50
37-2
1355445C20
ref: 37-2
LEVER ASSY
1355445C20
€ 38.50
38
1360573000
ref: 38
SCREW
1360573000
€ 10.50
39
1360104148
ref: 39
SCREW
1360104148
€ 2.50
40-1
1324713A00
ref: 40-1
13247-02340
SCREW,DRAIN
1324713A00
€ 5.50
40-2
1324702340
ref: 40-2
PLUG,DRAIN
1324702340
€ 5.50
41-1
1326738A10
ref: 41-1
13267-39E50
ADJUSTER
1326738A10
€ 13.00
41-2
1326739E50
ref: 41-2
ADJUSTER
1326739E50
€ 13.00
42
1327193011
ref: 42
SPRING
1327193011
€ 4.50
43
1324978100
ref: 43
WASHER
1324978100
€ 4.00
44
0940406434
ref: 44
CLAMP(L:80 T:1.0)
0940406434
€ 3.00
45
0214204083
ref: 45
02142-0408B
SCREW
0214204083
€ 1.50
46
1327737100
ref: 46
WASHER
1327737100
€ 2.00
47
1368338B00
ref: 47
13683-38B01
(CA) HOSE SET,FUEL
€ 19.50
48
1344638B00
ref: 48
SPRING
€ 8.50
49
1580138B00
ref: 49
15801-38B01
HOSE,FUEL PUMP & CARBURETOR
€ 14.50
50
0940111407
ref: 50
09401-11415
CLIP
0940111407
€ 2.50
51
0944014030
ref: 51
SPRING
0944014030
€ 25.00
52
1329529900
ref: 52
O RING,PILOT AIR SCREW
1329529900
€ 4.00
53
1329129900
ref: 53
WASHER
1329129900
€ 2.00
54
1326847070
ref: 54
SPRING
1326847070
€ 5.00
55
1327947070
ref: 55
SCREW,PILOT
1327947070
€ 11.50
56
1328105A00
ref: 56
PLUG
1328105A00
€ 3.50
