AIR CLEANER (FRONT)

VS600GLU 1997 (V) GERMANY (E22)

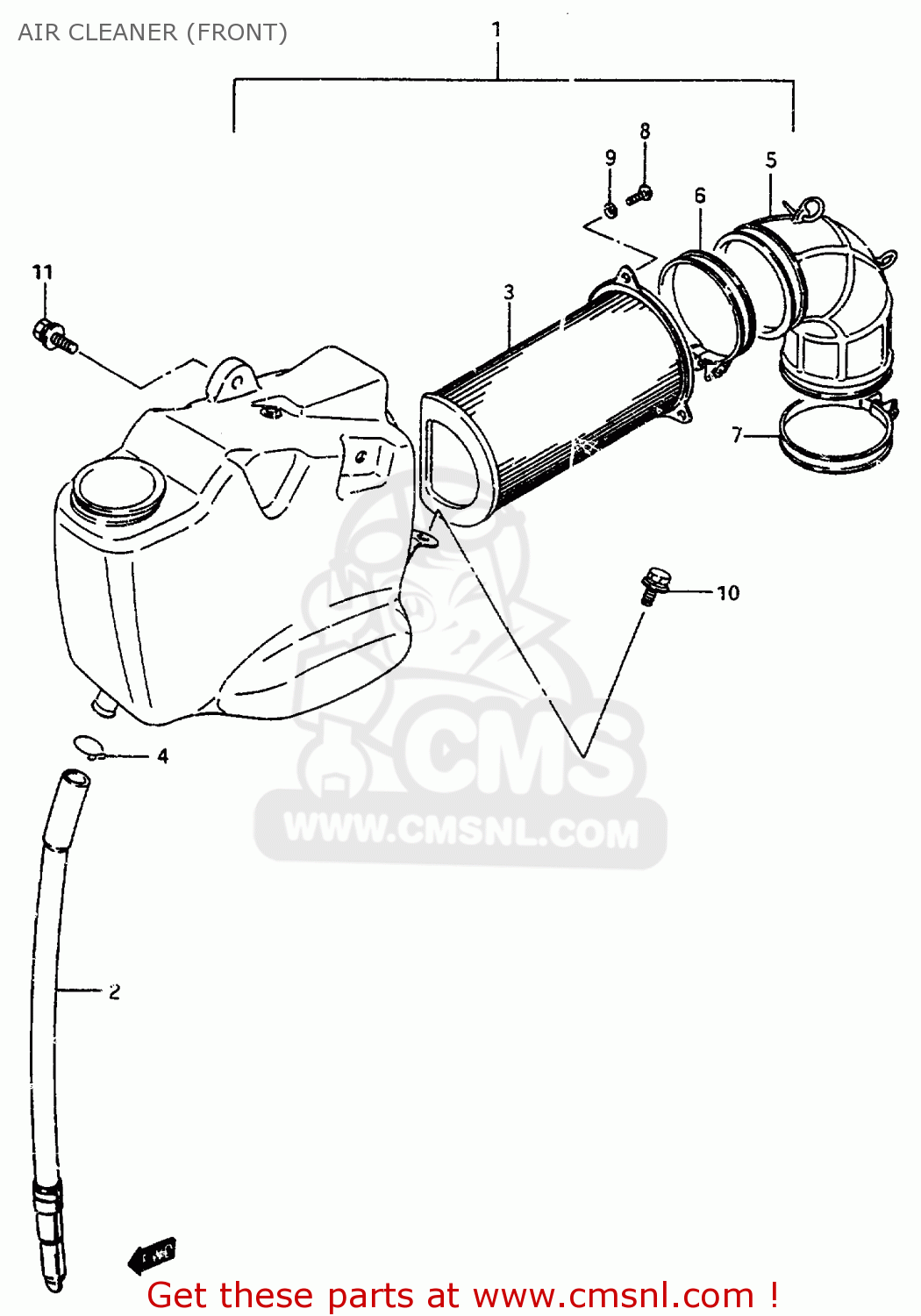

Air cleaner (front) diagram VS600GLU 1997 (V) GERMANY (E22)

AIR CLEANER (FRONT) VS600GLU 1997 (V) GERMANY (E22)

AIR CLEANER (FRONT) VS600GLU 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

1370038A11
ref: 1

CLEANER ASSY,AIR FR

€ 150.50

2

1387011458
ref: 2

TUBE,DRAIN

€ 13.50

3

1378038A01
ref: 3

FILTER ASSY

€ 25.00

4

0940113409
ref: 4

CLIP

€ 2.50

5

1388138A00
ref: 5

TUBE,AIR CLEANER OUTLET

€ 28.00

6

0940256208
ref: 6

CLAMP

€ 3.50

7

0940258208
ref: 7

CLAMP

€ 5.50

8

0211204083
ref: 8

SCREW

€ 2.00

9

0832101043
ref: 9

WASHER,LOCK

€ 2.00

10

0158006163
ref: 10

BOLT

€ 2.50

11

0158006203
ref: 11

BOLT, REAR

€ 2.50
