TURN SIGNAL LAMP (MODEL T/V)
VS600GLU 1997 (V) GERMANY (E22)

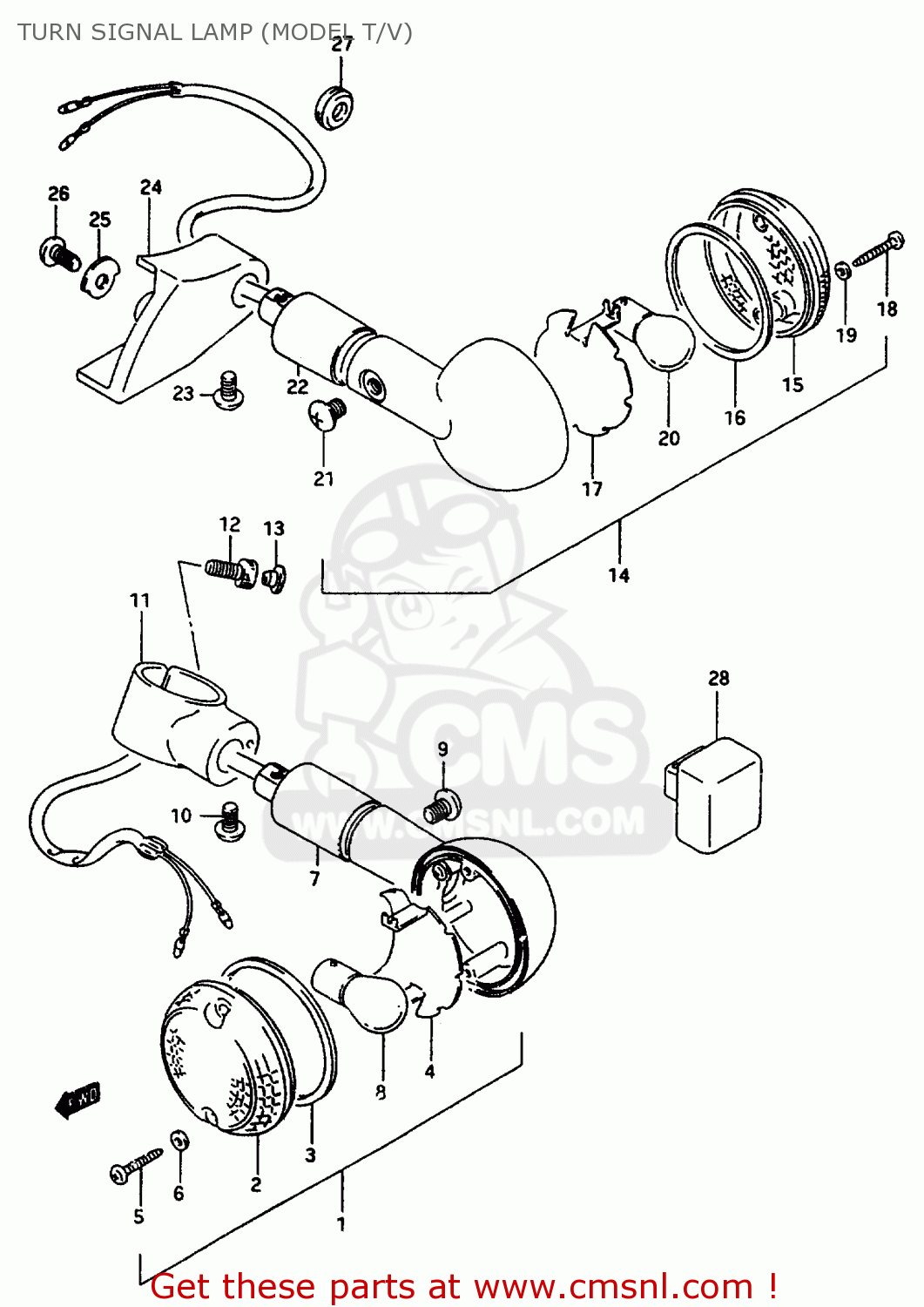

Turn signal lamp (model t/v) diagram VS600GLU 1997 (V) GERMANY (E22)
TURN SIGNAL LAMP (MODEL T/V) VS600GLU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3560138A22
ref: 1
LAMP ASSY,FR TURN SIGNAL
€ 93.50
2
3561238A01
ref: 2
LENS
€ 10.50
3
3561338A00
ref: 3
GASKET (NAS)
€ 11.50
4
3562438A20
ref: 4
REFLECTOR
€ 71.00
5
0321104253
ref: 5
SCREW
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
3561938A01
ref: 7
STAY,TURNSIGNAL LAMP
€ 35.50
8
0947112045
ref: 8
BULB(12V21W)
€ 5.00
9
3562338A01
ref: 9
SCREW
€ 5.50
10
0214206107
ref: 10
SCREW
€ 2.00
11-1
3567139A00
ref: 11-1
BRACKET,FR TURNSIGNAL LAMP,R
€ 51.50
11-2
3568139A00
ref: 11-2
BRACKET,FR TURNSIGNAL LAMP,L
€ 51.50
12
0713006167
ref: 12
BOLT
€ 3.00
13
0925005008
ref: 13
CAP(OD:10)
€ 5.00
14
3560338A22
ref: 14
LAMP ASSY,RR TURNSIGNAL,R
€ 98.00
15
3565238A21
ref: 15
LENS
€ 16.50
16
3561338A00
ref: 16
GASKET (NAS)
€ 11.50
17
3565438A20
ref: 17
REFLECTOR
€ 83.50
18
0321104253
ref: 18
SCREW
€ 2.00
19
3562743010
ref: 19
GASKET (NAS)
€ 2.00
20
0947112045
ref: 20
BULB(12V21W)
€ 5.00
21
3562338A01
ref: 21
SCREW
€ 5.50
22
3561938A01
ref: 22
STAY,TURNSIGNAL LAMP
€ 35.50
23
0214206107
ref: 23
SCREW
€ 2.00
24-1
3562138A22
ref: 24-1
E17,E18,E22
BRACKET,TURN R
€ 26.00
24-2
3564138A22
ref: 24-2
E17,E18,E22
BRACKET, RR TS
€ 31.00
25
3562938A20
ref: 25
E17,E18,E22
WASHER,RR TURNSIGNAL BRACKET
€ 1.50
26
0214206127
ref: 26
E17,E18,E22
SCREW 6X12
€ 1.50
27-1
0930808011
ref: 27-1
MODEL T E4,E22,E34
GROMMET
€ 3.00
27-2
0930808011
ref: 27-2
MODEL V E4,E34
GROMMET
€ 3.00
28
3861045D01
ref: 28
RELAY ASSY,TURNSIGNAL LAMP
€ 68.50
