PILLION RIDER HANDLE (MODEL T/V)

VS600GLU 1997 (V) GERMANY (E22)

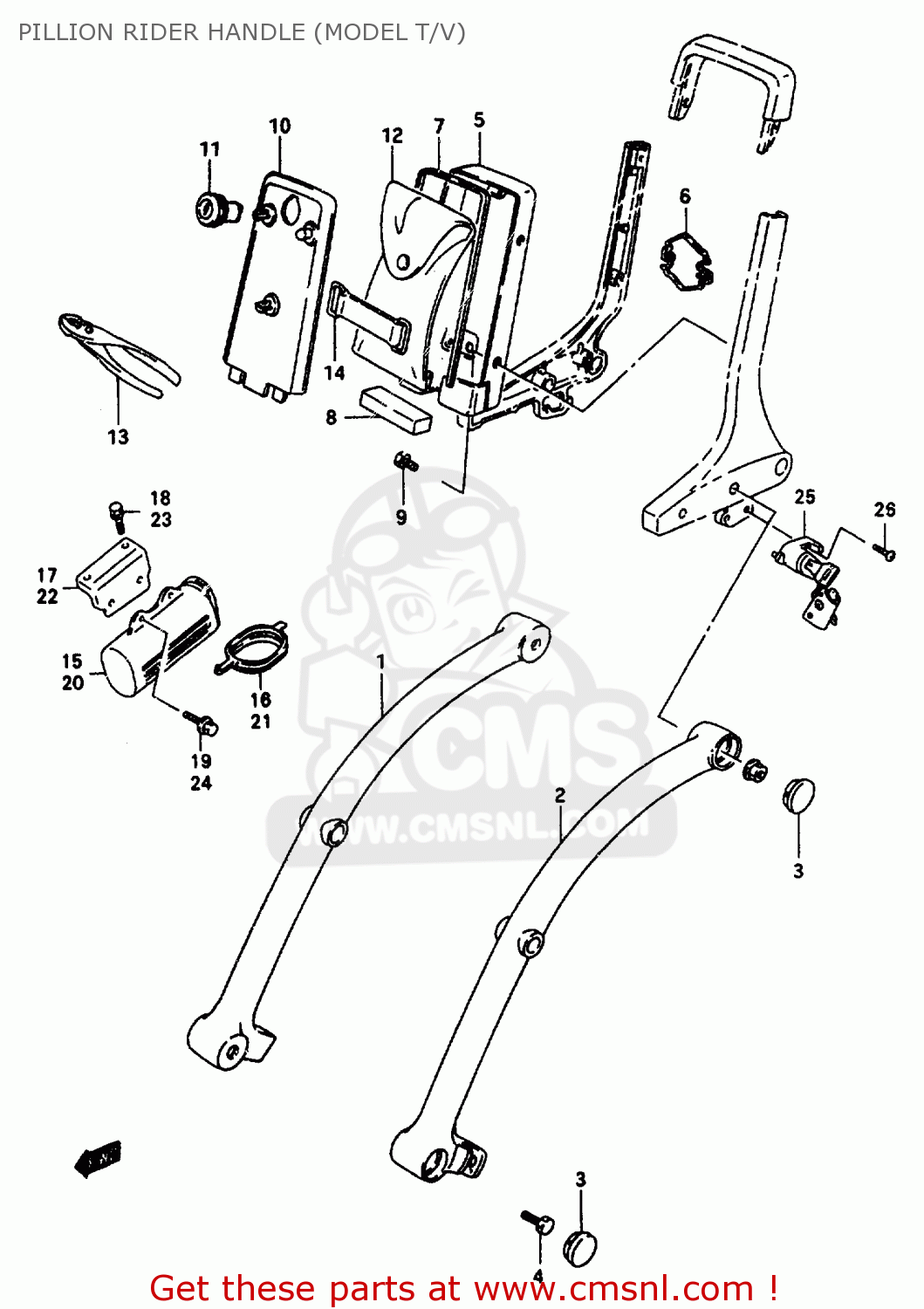

Pillion rider handle (model t/v) diagram VS600GLU 1997 (V) GERMANY (E22)

PILLION RIDER HANDLE (MODEL T/V) VS600GLU 1997 (V) GERMANY (E22)
PILLION RIDER HANDLE (MODEL T/V) VS600GLU 1997 (V) GERMANY (E22)
PILLION RIDER HANDLE (MODEL T/V) VS600GLU 1997 (V) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1-1
4161038A30
ref: 1-1
GRIP,FRAME HANDLE,RIGHT
€ 243.50
1-2
4161038A20
ref: 1-2
E4,E17,E18,E22
GRIP,FRAME HANDLE RH
4161038A20
€ 243.50
2-1
4162038A30
ref: 2-1
GRIP,FRAME HANDLE,LEFT
€ 308.00
2-2
4162038A20
ref: 2-2
E4,E17,E18,E22
GRIP,FRAME HANDLE LH
4162038A20
€ 308.00
3
9567224A00
ref: 3
CAP,FRAME HANDLE GRIP
9567224A00
€ 5.00
4
0158008203
ref: 4
BOLT
0158008203
€ 3.50
5
4743038B0222S
ref: 5
HOLDER,TOOL,REAR
4743038B0222S
€ 60.50
6
6826138A30
ref: 6
EMBLEM,TOOL HOLDER RR
6826138A30
€ 31.00
7
4743738B00
ref: 7
MOLDING,TOOL HOLDER RR
4743738B00
€ 5.00
8
4743838B00
ref: 8
CUSHION,TOOL BACK
4743838B00
€ 19.50
9
0155006123
ref: 9
BOLT
0155006123
€ 2.50
10
4744138B00
ref: 10
HOLDER,TOOL FR
4744138B00
€ 15.00
11
9570024831
ref: 11
LOCK SET,TOOL HOLDER
9570024831
€ 79.50
12
0980021013
ref: 12
TOOL ASSY
0980021013
€ 23.50
13
0981200009
ref: 13
PLIER(150)
€ 9.00
14
0946200008
ref: 14
BAND
0946200008
€ 4.50
15
4155138200
ref: 15
MODEL T E22
HOLDER,TOOL
4155138200
€ 17.00
16
4155237210
ref: 16
MODEL T E22
CAP,HOLDER
4155237210
€ 5.00
17
4744038A10
ref: 17
MODEL T E22
PLATE, TOOL HOLDER
4744038A10
€ 11.50
18
0911706057
ref: 18
MODEL T E22
BOLT 6X16
€ 2.00
19
0911606170
ref: 19
MODEL T E22
BOLT(6X16)
0911606170
€ 3.00
20
4155138200
ref: 20
VS600GLFT/FV E4,E34
HOLDER,TOOL
4155138200
€ 17.00
21
4155237210
ref: 21
VS600GLFT/FV E4,E34
CAP,HOLDER
4155237210
€ 5.00
22
4744038A10
ref: 22
VS600GLFT/FV E4,E34
PLATE, TOOL HOLDER
4744038A10
€ 11.50
23
0911706057
ref: 23
VS600GLFT/FV E4,E34
BOLT 6X16
€ 2.00
24
0911606170
ref: 24
VS600GLFT/FV E4,E34
BOLT(6X16)
0911606170
€ 3.00
25
9570038821
ref: 25
LOCK SET,HELMET
9570038821
€ 54.00
26
0211205127
ref: 26
SCREW
0211205127
€ 2.50
