VS600GLU 1997 (V) GERMANY (E22)

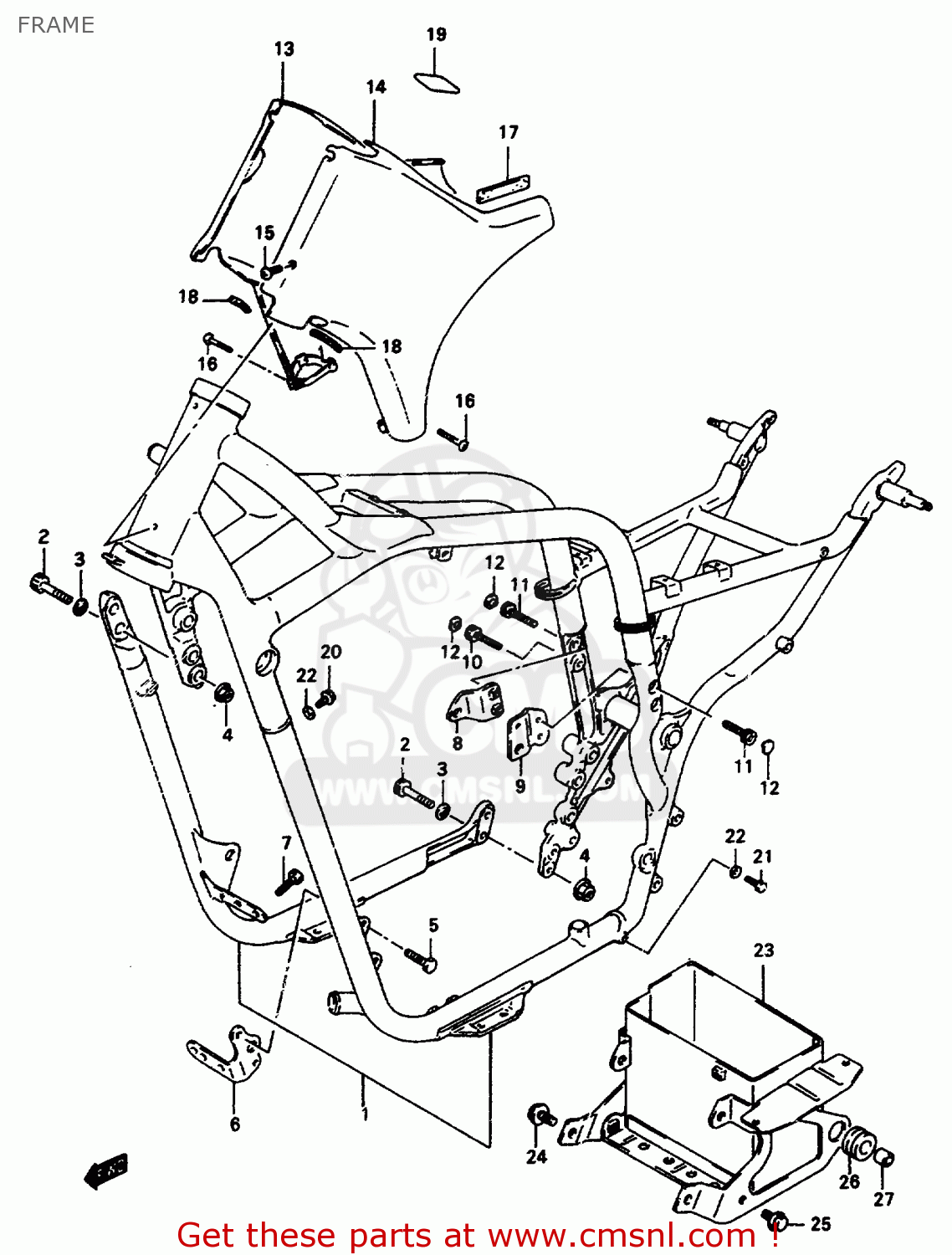

Frame diagram VS600GLU 1997 (V) GERMANY (E22)
FRAME VS600GLU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
411013981233J
ref: 1-1
MODEL S/T
FRAME SET
€ 940.50
1-2
41101398121ZV
ref: 1-2
MODEL S
FRAME SET
€ 2,143.50
1-3
411013981219A
ref: 1-3
MODEL T
FRAME SET
€ 959.00
1-4
411013981333J
ref: 1-4
MODEL V
FRAME SET(BLACK)
€ 940.50
1-5
4110139813Y0V
ref: 1-5
MODEL V
FRAME SET
€ 940.50
1-6
411013982233J
ref: 1-6
MODEL S/T E18
FRAME SET (BLACK)
€ 1,906.50
1-7
41101398221ZV
ref: 1-7
MODEL S E18
FRAME SET (GREEN)
€ 1,906.50
1-8
411013982219A
ref: 1-8
MODEL T E18
FRAME SET (RED)
€ 2.00
1-9
411013982333J
ref: 1-9
MODEL V E18
FRAME SET (BLACK)
€ 1,906.50
1-10
4110139823Y0V
ref: 1-10
MODEL V E18
FRAME SET (GREEN)
€ 1,906.50
2
0910610019
ref: 2
BOLT(10X33)
€ 4.00
3
0916410010
ref: 3
WASHER
€ 6.50
4
0831931105
ref: 4
NUT 10MM
€ 3.00
5
0155008203
ref: 5
BOLT
€ 3.00
6
4192038A00019
ref: 6
PLATE,ENGINE MOUNT NO.1,L
€ 11.00
7
0157008163
ref: 7
BOLT, UPPER
€ 2.00
8
4195038A11019
ref: 8
PLATE,ENGINE MOUNT NO.3,R
€ 32.50
9
4196038A10019
ref: 9
PLATE,ENGINE MOUNT NO.3,L
€ 26.50
10
0713008303
ref: 10
BOLT
€ 3.00
11
0910608070
ref: 11
BOLT(8X30)
€ 5.50
12
0925006004
ref: 12
CAP(OD:14.5)
€ 1.50
13-1
4735038A011ZV
ref: 13-1
MODEL S
COVER,FRAME HEAD,R(GREEN)
€ 118.50
13-2
4735038A0119A
ref: 13-2
MODEL T
COVER,FRAME HEAD,RIGHT
€ 269.00
13-3
4735038A0133J
ref: 13-3
COVER,FRAME HEAD,R(BLACK)
€ 269.00
13-4
4735038A01Y0V
ref: 13-4
MODEL V
COVER,FRM HD.,
€ 269.00
14-1
4736038A011ZV
ref: 14-1
MODEL S
COVER COMP,FRAME HEAD
€ 150.00
14-2
4736038A0119A
ref: 14-2
MODEL T
COVER,FRAME HEAD,LEFT
€ 267.00
14-3
4736038A0133J
ref: 14-3
COVER,FRAME HEAD,LEFT
€ 267.00
14-4
4736038A01Y0V
ref: 14-4
MODEL V
COVER,FRM HD.,
€ 267.00
15
0214206103
ref: 15
SCREW 6X10
€ 2.00
16
0211204253
ref: 16
SCREW
€ 2.00
17
3365207D00
ref: 17
PROTECTOR(80X80X2)
€ 4.50
18
6824104X50300
ref: 18
MOLDING
€ 6.00
19
4735838A00
ref: 19
TAPE,FRAME HEAD COVER
€ 7.00
20
0936006015
ref: 20
UNION
€ 3.00
21
0155006103
ref: 21
BOLT
€ 2.50
22
0916806004
ref: 22
GASKET(6.2X11X1).2 (NAS)
€ 1.50
23-1
4154038A11
ref: 23-1
MODEL S/T
HOLDER,BATTERY
€ 103.50
23-2
4154038A12
ref: 23-2
MODEL V
HOLDER,BATTERY
€ 103.50
24
0155010163
ref: 24
BOLT
€ 2.50
25
0155006163
ref: 25
BOLT
€ 2.50
26
0932012031
ref: 26
CUSHION
€ 3.00
27-1
0918008001
ref: 27-1
MODEL S/T
SPACER (8.8X12X11)
€ 2.00
27-2
0930108009
ref: 27-2
MODEL V
BUSH
€ 6.50
