CYLINDER HEAD (REAR)
VS600GLU 1997 (V) GERMANY (E22)

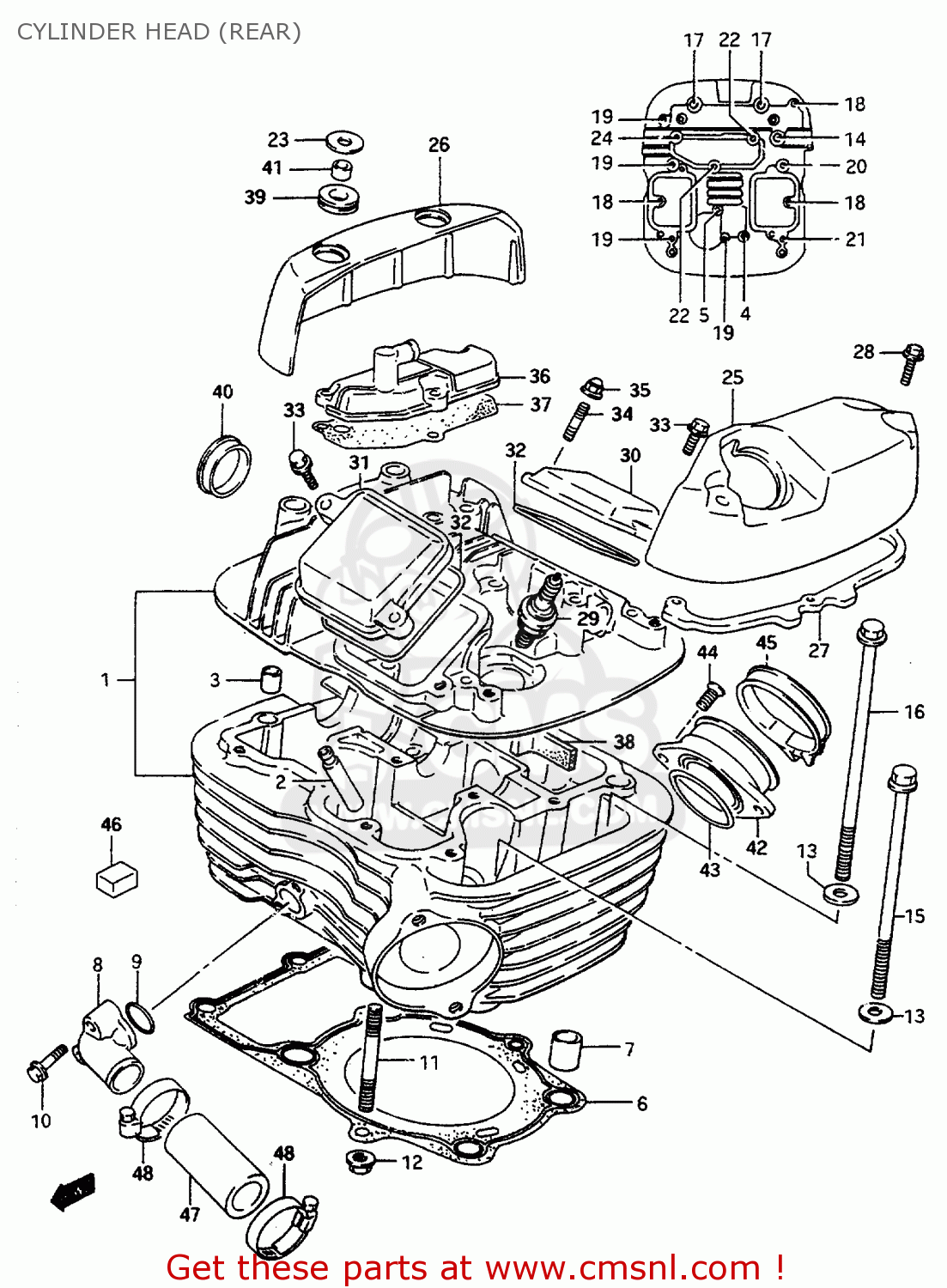

Cylinder head (rear) diagram VS600GLU 1997 (V) GERMANY (E22)
CYLINDER HEAD (REAR) VS600GLU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110338A02
ref: 1-1
HEAD ASSY,CYLINDER RR
€ 619.50
1-2
1110339A11
ref: 1-2
E18
HEAD ASSY,CYLINDER RR
€ 804.00
2
1111538A71
ref: 2
GUIDE,VALVE
€ 18.50
3
0920611004
ref: 3
PIN(8.4X11X14)
€ 6.00
4
0910306101
ref: 4
BOLT(6X50)
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
€ 2.50
6
1114238A03
ref: 6
GASKET,CYLINDER HEAD RR (MCA)
€ 54.00
7
0421113189
ref: 7
PIN
€ 2.50
8
1116945C10
ref: 8
UNION,CYLINDER HEAD WATER
€ 28.50
9
0928018004
ref: 9
O RING(D:2.4,ID:17.8)
€ 5.50
10-1
0154706257
ref: 10-1
MODEL S
BOLT
€ 2.50
10-2
0154706253
ref: 10-2
MODEL T/V
SCREW
€ 2.50
11
0910808144
ref: 11
BOLT,STUD
€ 4.50
12
0831610087
ref: 12
NUT
€ 2.50
13
0916010060
ref: 13
WASHER (10.5X22X2.3)
€ 2.50
14
0910308040
ref: 14
BOLT(8X140)
€ 4.00
15
0910310133
ref: 15
BOLT(10X155)
€ 7.50
16
0910310134
ref: 16
BOLT(10X165)
€ 7.50
17
0910308180
ref: 17
BOLT(8X245)
€ 13.00
18
0155006257
ref: 18
BOLT
€ 2.50
19
0155006307
ref: 19
BOLT
€ 2.00
20
0712006307
ref: 20
BOLT
€ 2.50
21
0155006407
ref: 21
BOLT
€ 2.50
22
0910306102
ref: 22
BOLT(6X55)
€ 2.50
23
0916008098
ref: 23
WASHER (8.2X24X1.6)
€ 2.00
24
0155006207
ref: 24
BOLT
€ 2.50
25
1117338A03
ref: 25
CAP,CYLINDER HEAD COVER RR,L
€ 68.50
26
1117438A02
ref: 26
CAP,CYLINDER HEAD COVER RR,R
€ 75.00
27
1127338A01
ref: 27
CUSHION,RR,L CAP
€ 10.50
28
0121406357
ref: 28
BOLT
€ 3.00
29-1
0948200334
ref: 29-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
29-2
0948200335111
ref: 29-2
SPARK PLUG X24EPR-U9
€ 4.00
29-3
0948200354
ref: 29-3
OPT
PLUG,SPARK(DPR7EA-9)
€ 4.00
29-4
0948200355111
ref: 29-4
OPT
SPARK PLUG X22EPR-U9
€ 4.00
29-5
0948200330
ref: 29-5
OPT
PLUG,SPARK(DPR9EA-9)
€ 4.00
29-6
0948200331111
ref: 29-6
OPT
SPARK PLUG X27EPR-U9
€ 4.00
30
1117538A10
ref: 30
CAP,INSP.INT
€ 14.50
31
1117638A10
ref: 31
CAP,INSPECTION,EXHAUST
€ 14.50
32
1117738A00
ref: 32
GASKET,INSPECTION CAP (NAS)
€ 5.00
33
0154706207
ref: 33
BOLT
€ 2.50
34
0142106168
ref: 34
STUD 6X16
€ 2.00
35
0831320067
ref: 35
NUT
€ 2.00
36
1118638A02
ref: 36
COVER,BREATHER
€ 13.50
37
1118738A02H17
ref: 37
GASKET,BREATHER COVER (NAS)
€ 12.00
38
1117938A00
ref: 38
PLATE,HEAD COVER RR
€ 7.50
39
0932013015
ref: 39
CUSHION
€ 3.00
40
0924130004
ref: 40
PLUG(OD:30)
€ 6.50
41
0930108007
ref: 41
BUSH
€ 4.00
42-1
1312045C00
ref: 42-1
MODEL S
PIPE COMP,INTAKE,REAR
€ 40.50
42-2
1312045C01
ref: 42-2
MODEL T/V
PIPE,INTAKE,REAR
€ 40.50
42-3
1312039E51
ref: 42-3
VS600GLUS/GLUT/GLUV
PIPE,INTAKE RR
€ 23.00
43
0928040003
ref: 43
O-RING (D:2.4 ID:39.7)
€ 3.50
44
0212206203
ref: 44
SCREW
€ 2.00
45
0940252501
ref: 45
CLAMP
€ 9.00
46
1115238A00
ref: 46
PAD
€ 3.50
47
1785438A00
ref: 47
HOSE,CYLINDER HEAD JOINT
€ 8.50
48
0940228511
ref: 48
CLAMP
€ 8.50
