AIR CLEANER (FRONT)

VS700GLEF INTRUDER 1987 (H) USA (E03)

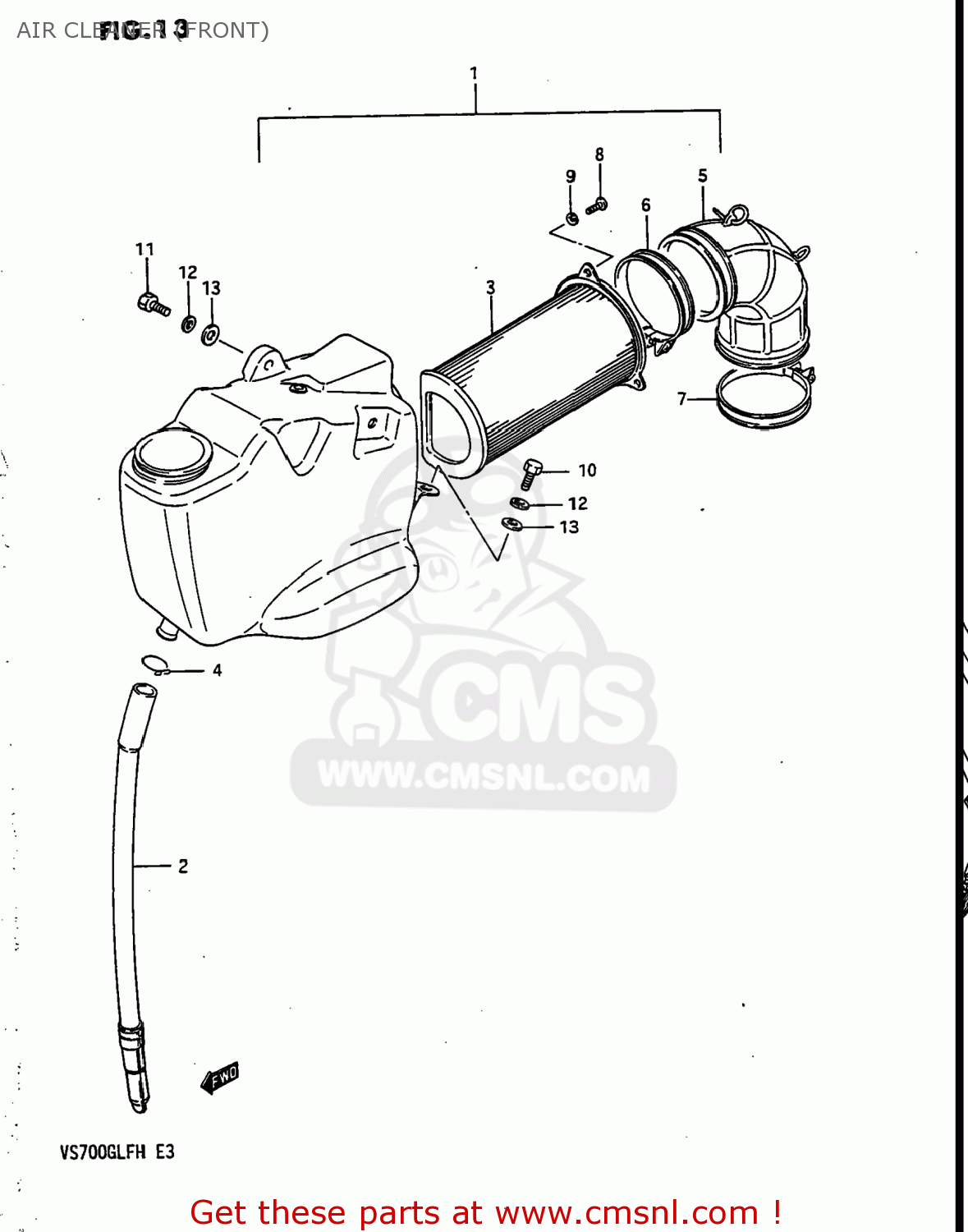

Air cleaner (front) diagram VS700GLEF INTRUDER 1987 (H) USA (E03)

AIR CLEANER (FRONT) VS700GLEF INTRUDER 1987 (H) USA (E03)
AIR CLEANER (FRONT) VS700GLEF INTRUDER 1987 (H) USA (E03)
AIR CLEANER (FRONT) VS700GLEF INTRUDER 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1370038A00
ref: 1
13700-38A01
CLEANER ASSEMBLY,AIR
€ 177.50
2
1387011413
ref: 2
13870-11458
DRAIN TUBE
€ 13.50
3
1378038A00
ref: 3
13780-38A01
FILTER,AIR CLEANER
1378038A00
€ 25.00
4
1382400A00
ref: 4
09401-13409
CLIP
1382400A00
€ 2.50
5
1388138A00
ref: 5
TUBE,AIR CLEANER OUTLET
1388138A00
€ 28.00
6
0940256207
ref: 6
09402-56901
CLAMP
€ 3.50
7
0940258207
ref: 7
09402-58208
CLAMP
€ 5.50
8
0211204085
ref: 8
02112-0408A
SCREW
0211204085
€ 2.00
9
0832121045
ref: 9
08321-0104A
LOCK WASHER
€ 2.00
10
0110706168
ref: 10
01500-06167
BOLT, UPPER
€ 3.00
11
0110706208
ref: 11
01500-06207
BOLT
0110706208
€ 2.00
12
0832121067
ref: 12
08321-01067
WASHER,LOCK
0832121067
€ 2.50
13
0832221067
ref: 13
08322-01067
WASHER
0832221067
€ 2.00
