STARTER CLUTCH

VS700GLEF INTRUDER 1987 (H) USA (E03)

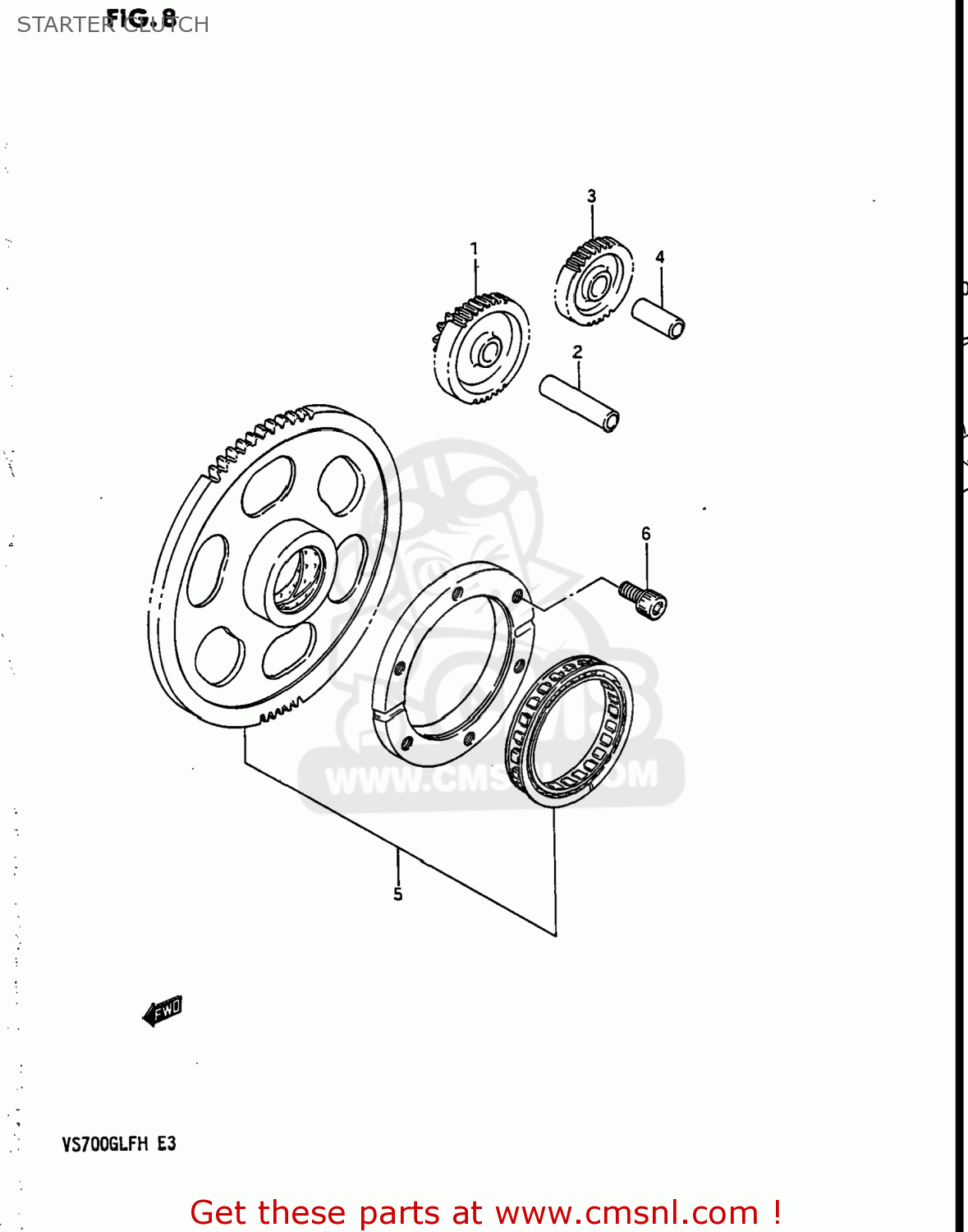

Starter clutch diagram VS700GLEF INTRUDER 1987 (H) USA (E03)

STARTER CLUTCH VS700GLEF INTRUDER 1987 (H) USA (E03)

STARTER CLUTCH VS700GLEF INTRUDER 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261138A01
ref: 1

GEAR,STARTER IDLE NO.1

€ 57.50

2

0920610003
ref: 2
09202-10008

PIN

€ 9.00

3

1261138A11
ref: 3

GEAR,STARTER IDLE NO.2

€ 39.50

4

0920610004
ref: 4
09202-10006

PIN

€ 6.50

5

1260038830
ref: 5
12600-38832

CLUTCH SET,STARTER

€ 307.00

6

0910608043
ref: 6
07130-0816A

BOLT

€ 3.00
