AIR CLEANER (REAR)

VS700GLEF INTRUDER 1987 (H) USA (E03)

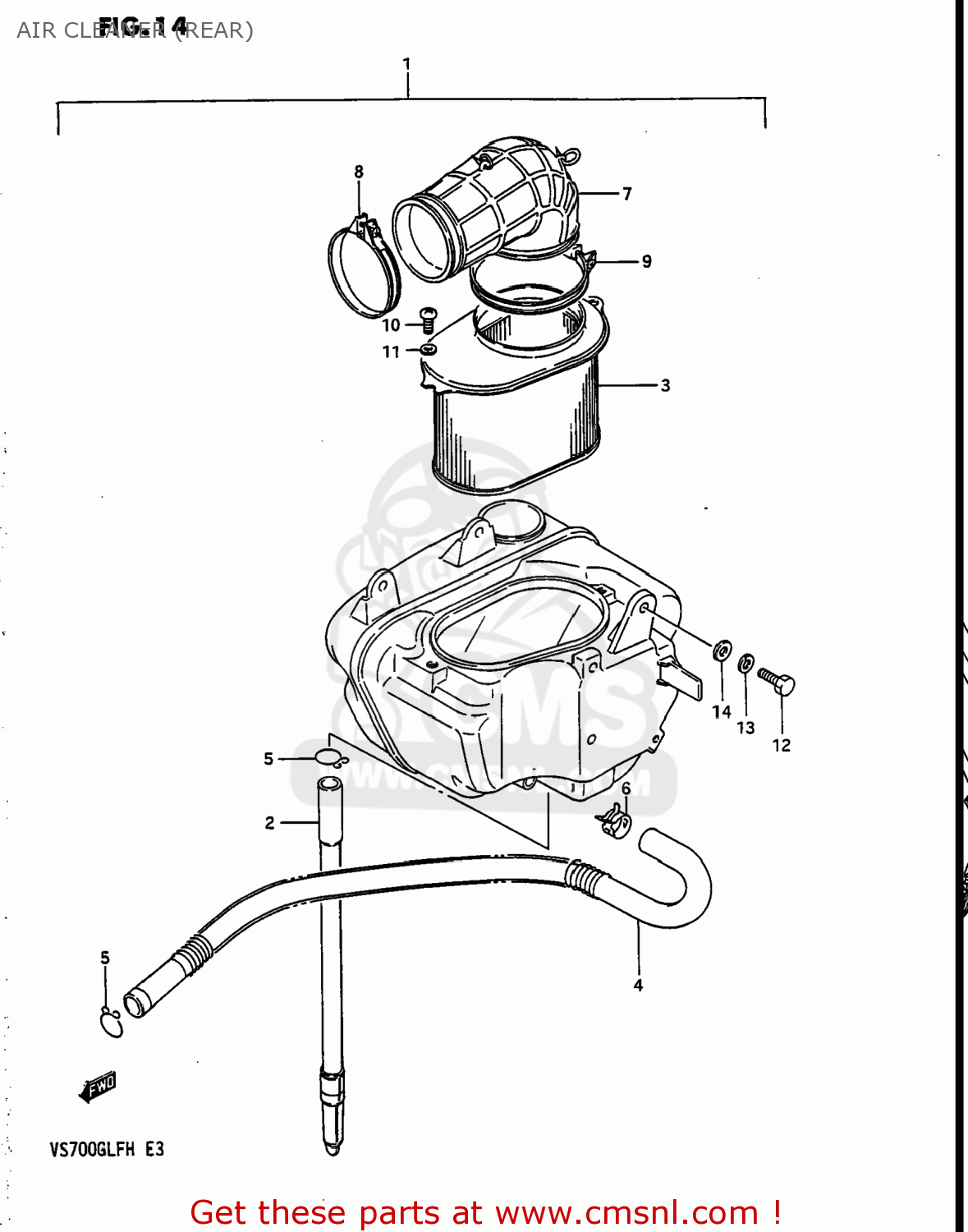

Air cleaner (rear) diagram VS700GLEF INTRUDER 1987 (H) USA (E03)

AIR CLEANER (REAR) VS700GLEF INTRUDER 1987 (H) USA (E03)
AIR CLEANER (REAR) VS700GLEF INTRUDER 1987 (H) USA (E03)
AIR CLEANER (REAR) VS700GLEF INTRUDER 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1370038A50
ref: 1
13700-38A51
CLEANER ASSEMBLY,AIR
€ 160.50
2
1387011293
ref: 2
DRAIN TUBE
€ 13.50
3
1378038A50
ref: 3
13780-38A51
FILTER,AIR CLEANER
1378038A50
€ 33.00
4
1385038A50
ref: 4
TUBE SET,BREATHER
1385038A50
€ 62.00
5
0940114301
ref: 5
CLIP
0940114301
€ 2.00
6
1382443400
ref: 6
09401-14404
CLIP
€ 2.00
7
1388138A50
ref: 7
TUBE,AIR CLEANER OUTLET
1388138A50
€ 32.00
8
0940258207
ref: 8
09402-58208
CLAMP
€ 5.50
9
0940278207
ref: 9
CLAMP
0940278207
€ 7.50
10
0211205085
ref: 10
02112-0508A
SCREW
€ 2.00
11
0832121055
ref: 11
08321-0105A
WASHER,LOCK
0832121055
€ 3.00
12
0110706208
ref: 12
01500-06207
BOLT
0110706208
€ 2.00
13
0832121067
ref: 13
08321-01067
WASHER,LOCK
0832121067
€ 2.50
14
0916006019
ref: 14
WASHER(6.5X16X1.2)
0916006019
€ 1.50
